Telenco Air Blown Fibre Assembly (ABF) – UG – 1F SM – 1.2mm – LC/APC to LC/APC Ferrule – Multiple Options

Telenco Air Blown Fibre Assembly (ABF) – UG – 1F SM – 1.2mm – LC/APC to LC/APC Ferrule – Multiple Options

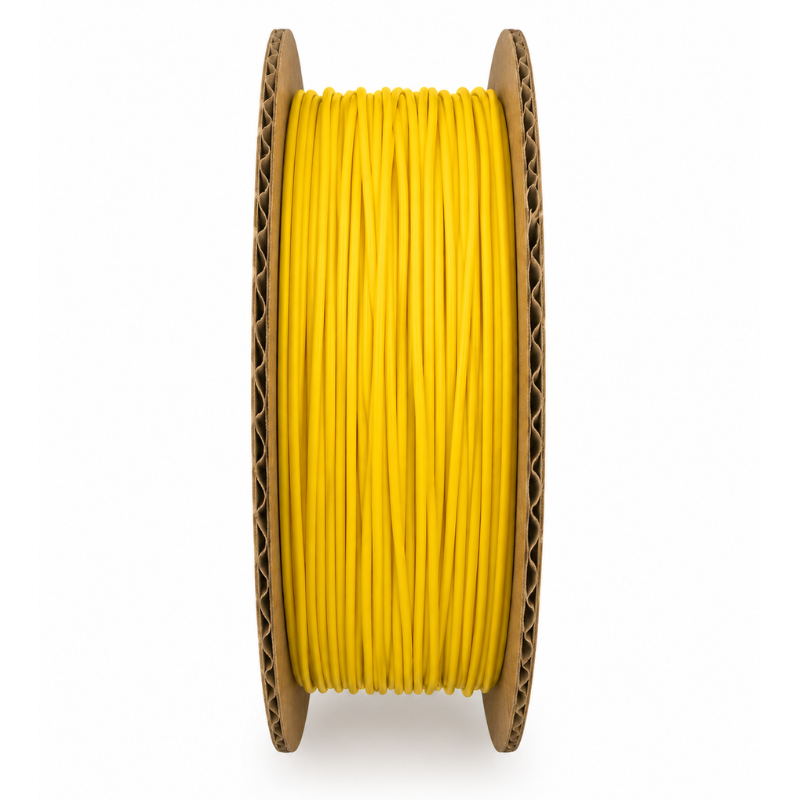

The Telenco Air Blown Fibre Assembly (ABF) is a pre-terminated single-mode fibre solution designed for installation through compatible microduct infrastructure. Featuring a compact 1.2mm nominal outer diameter, the assembly provides a streamlined solution for underground fibre access network deployments.

The smooth-sheath ABF construction features a UV-curable acrylate resin coating with an HDPE outer sheath. Its compact profile is designed for air blown fibre installation, allowing the assembly to travel through compatible microduct while protecting the optical fibre during deployment.

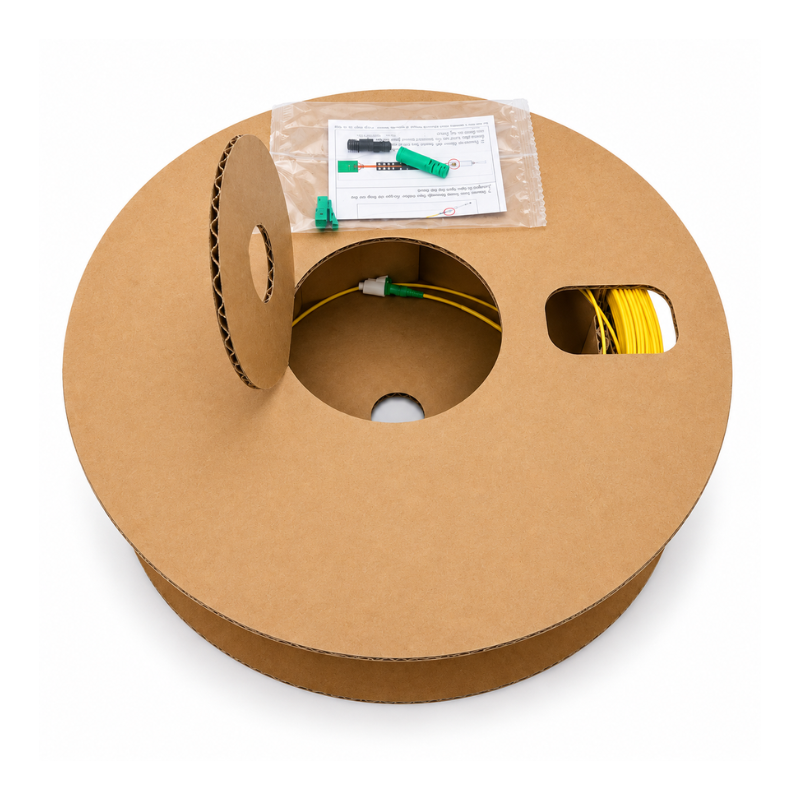

Each single-fibre assembly is supplied in an LC/APC to LC/APC ferrule configuration, with the protected ferrule arrangement at the blowing end. The pre-terminated design helps reduce the requirement for field connectorisation after installation, supporting faster and more consistent fibre deployment.

Available in multiple length options, the range allows installers to select an appropriate assembly for different underground microduct routes, from shorter customer connections through to longer FTTH, FTTx and telecommunications network deployments.

Key Features:

• Pre-terminated Air Blown Fibre assembly

• 1-fibre single-mode configuration

• Available in multiple length options

• Nominal 1.2mm outer diameter

• Smooth-sheath ABF construction

• LC/APC connector configuration

• LC/APC ferrule arrangement at blowing end

• Designed for installation through compatible microduct

• HDPE outer sheath

• UV-curable acrylate resin coating

• Pre-connectorised design reduces field connectorisation

• Grade B connector insertion loss performance

• APC return loss ≥60dB

• Suitable for underground fibre access networks

• Multiple lengths for different installation requirements

Technical Specifications:

• Brand: Telenco

• Product Type: Pre-Terminated Air Blown Fibre Assembly

• Installation Type: UG

• Fibre Count: 1F

• Fibre Type: Single Mode (SM)

• Length: Multiple Options

• Nominal Outer Diameter: 1.2 ± 0.3mm

• Outer Sheath: HDPE

• Coating Material: UV-Curable Acrylate Resin

• Connector: LC/APC

• Blowing End: LC/APC Ferrule

• Connector Insertion Loss: ≤0.12dB mean

• Maximum Connector Insertion Loss: ≤0.25dB for ≥97% of connections

• APC Return Loss: ≥60dB

• Minimum Handling Bend Radius: 40mm

• Operating Temperature: -40°C to +60°C

• Storage Temperature: -40°C to +70°C

Available Lengths:

• 10m

• 25m

• 50m

• 75m

• 100m

• 125m

• 150m

• 175m

• 200m

• 225m

• 250m

• 300m

• 325m

• 350m

• 400m

Applications:

• Underground fibre network deployment

• Air blown fibre installations

• Microduct fibre networks

• FTTH and FTTx infrastructure

• Fibre access networks

• Telecommunications networks

• Customer connection routes

• Pre-connectorised fibre deployments
