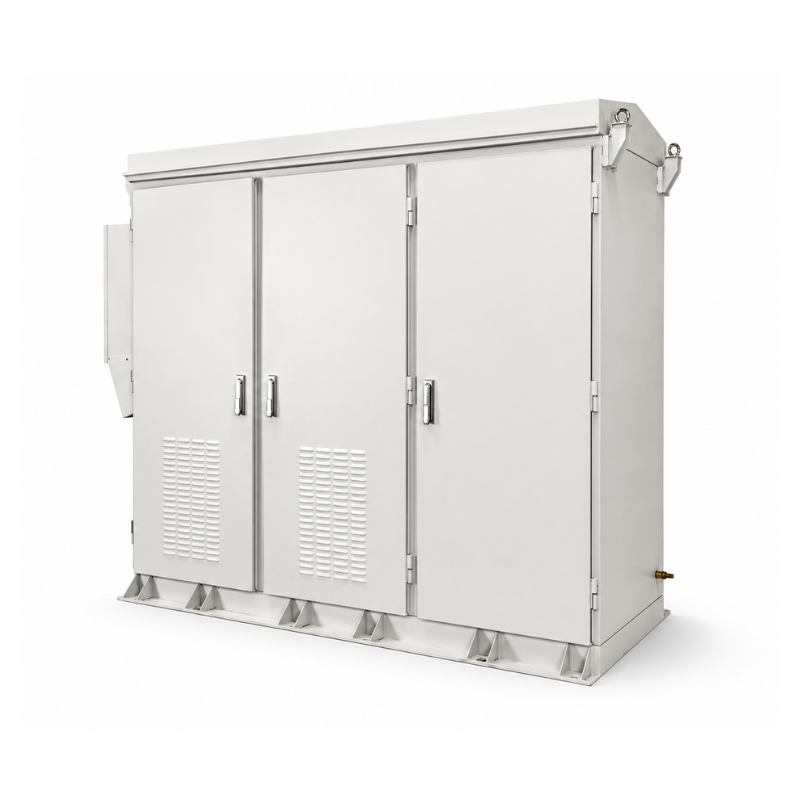

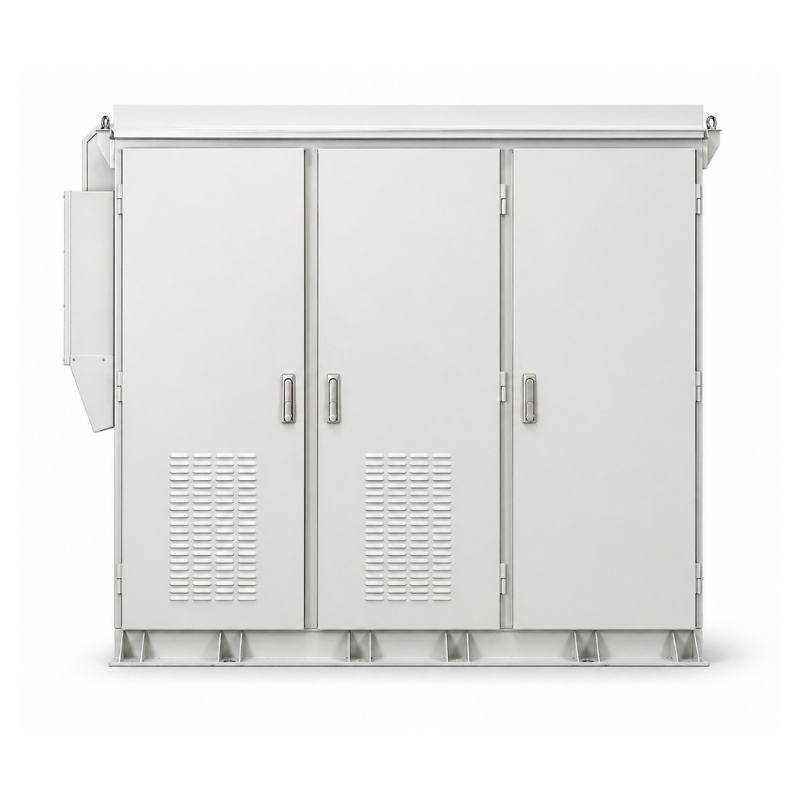

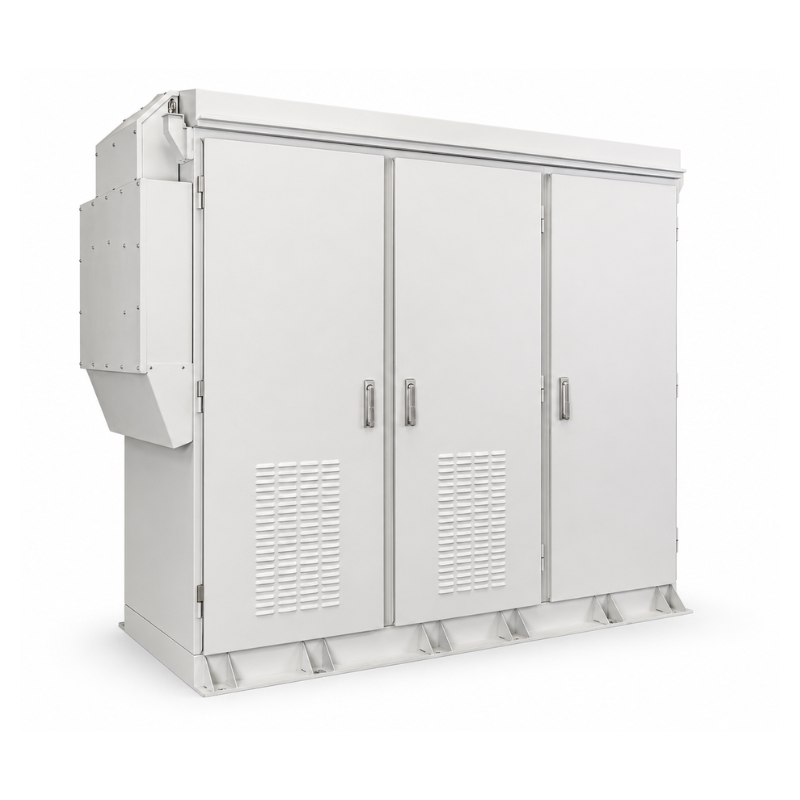

Rainford Triple Bay ThermaSafe™ TCL Cabinet – Multiple Options
The Rainford Triple Bay ThermaSafe™ TCL Cabinet is a secure, modular outdoor enclosure designed to provide a stable temperature-controlled environment for critical infrastructure equipment across telecom, rail, utility and private network applications. The cabinet is engineered to maintain reliable equipment operation in exposed environments where temperature and environmental conditions could impact long-term performance.
Featuring an integrated active forced-air cooling system, the cabinet supports higher heat loads than passive alternatives while maintaining a stable internal operating environment. Its intelligent cooling capability makes it particularly suitable for infrastructure deployments where equipment longevity, thermal management and operational continuity are essential.
The Triple Bay ThermaSafe™ TCL Cabinet combines security, flexibility and maintainability through a robust stainless steel construction, vandal resistance protection and mixed equipment mounting options supporting both 19" rack equipment and BRS-SM compatibility. Modular design principles simplify maintenance while external fan access and replaceable filters help minimise long-term operational costs.
Designed for demanding outdoor deployments, the cabinet provides a durable and future-ready enclosure solution suitable for both legacy and modern network infrastructure equipment.
Key Features:
-
Triple bay temperature-controlled outdoor cabinet
-
Active forced-air cooling system
-
Supports higher heat loads versus passive cooling systems
-
Stable internal operating environment
-

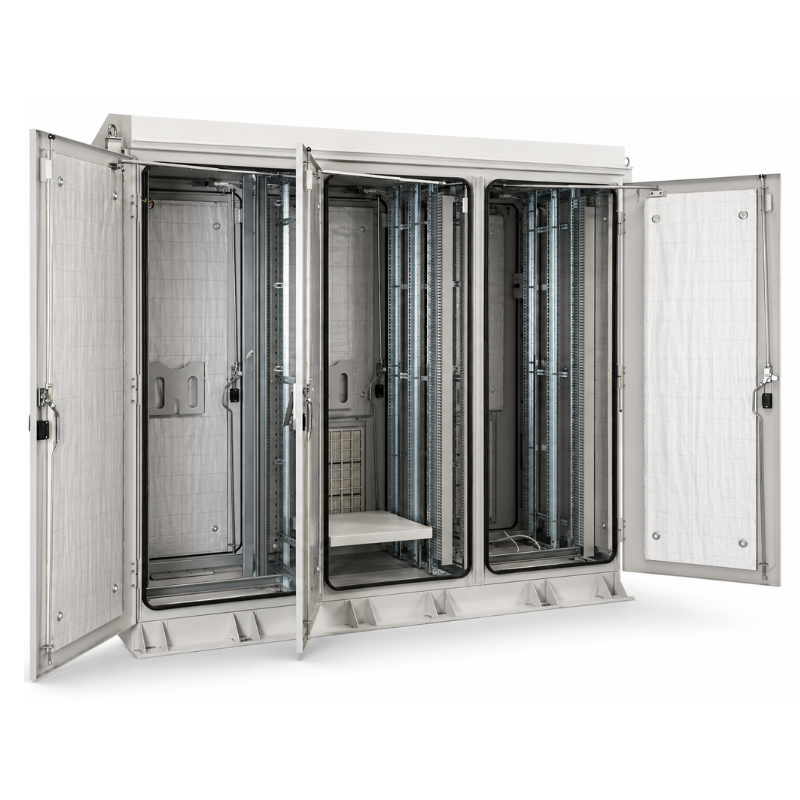

Mixed mounting support – 19" rack and BRS compatibility
-
IP54 ingress protection
-
LPS1175 Level 2 vandal resistance
-
External fan access for simplified maintenance
-
Replaceable filtration system
-
Hinged peaked roof design
-
Internal bonding and copper earth bar system
-
Designed for long operational life with low maintenance requirements
Technical Specifications:
- Configuration: Triple Bay
-
Rack Capacity: 34U
-
Material: 1.4003 Stainless Steel
-
Finish: Polyester powder coated
-
Colour: Grey (RAL7035)
-
Doors: 3 Front / 3 Rear
-
Handle Type: Hasp & Staple
-
Lock Type: Padlock compatible (not included)
-
Locking System: 3-point locking
-
Roof Type: Hinged peaked roof
-
Lifting Points: 4 lifting lugs
- External Dimensions: 1958 × 2025 × 810mm (H × W × D)
-
Weight: 477kg
Cooling System:
-
Cooling Type: Forced air / Active cooling
-
Heat Dissipation: 1700W @ ΔT 10°C
-
Fan System: Speed-controlled fans with filters
-
Alarm Monitoring:
-
Fan failure alarm
-
Temperature alarm
-
Power alarm
Security & Protection:
-
IP54 protection against dust and water ingress
-
LPS1175 SR2 vandal resistance
-
Copper earth bar
-
External M16 earth stud
-
Internal bonding throughout
Accessories Available:
-
Sliding shelf
-
Battery tray
-
Internal LED lighting
-
Removable gland plates
-
Roxtec cable entry
-
Vertical cable ducts
Applications:
-
Rail infrastructure deployments
-
Trackside equipment housing
-
Telecom infrastructure installations
-
Critical network infrastructure
-
Utility network applications
-
Private communications networks
