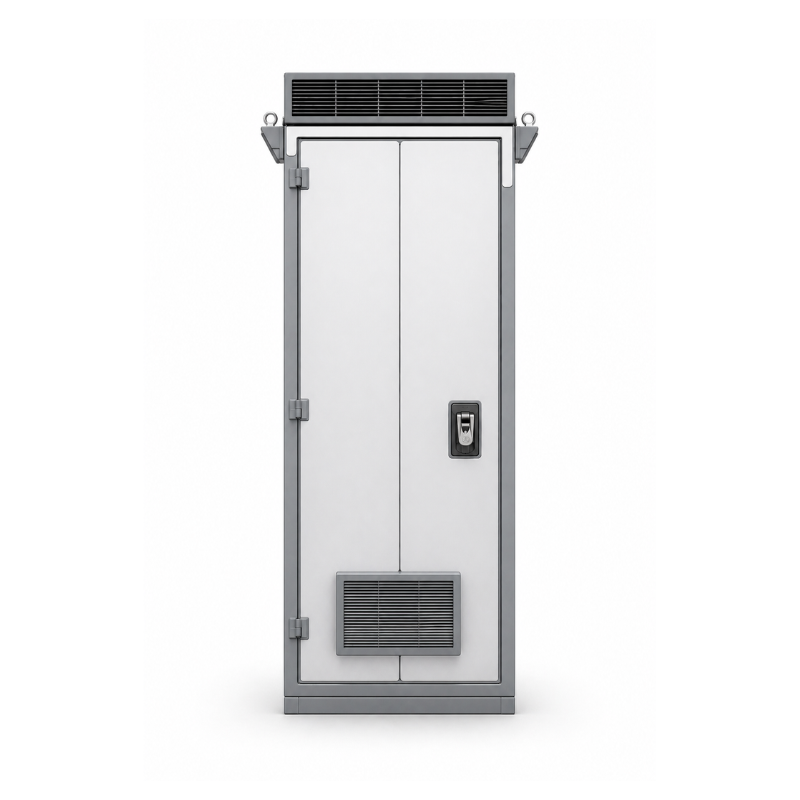

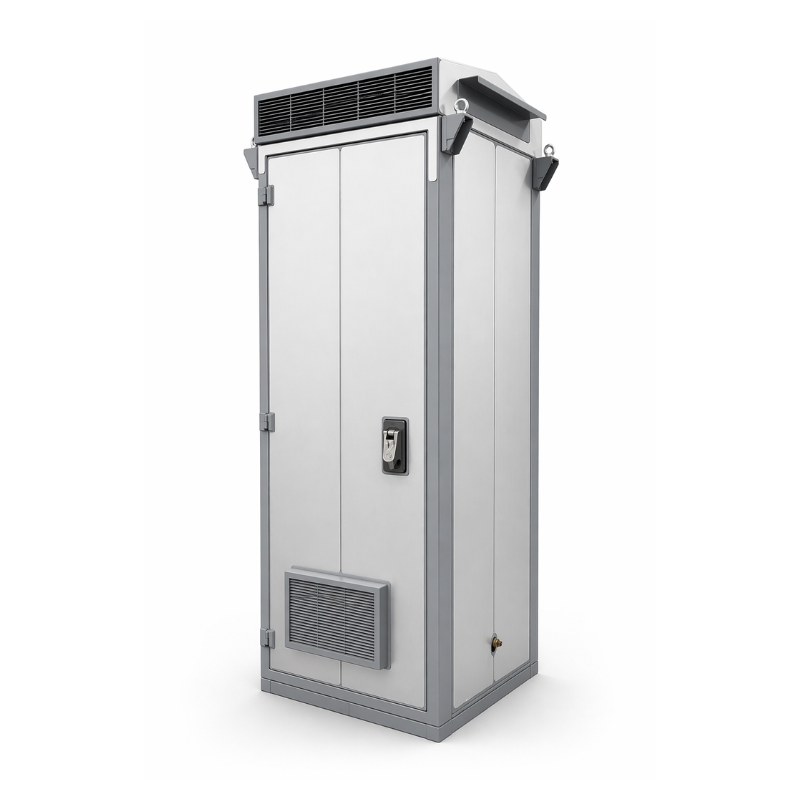

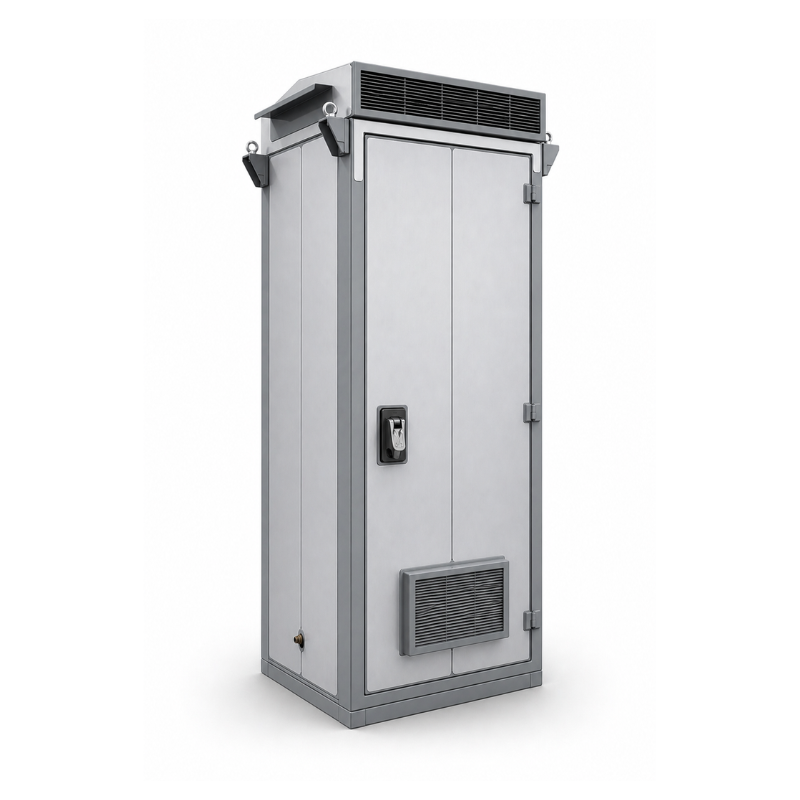

Rainford TrackSafe Single Bay Cabinet (19” Frame)
The Rainford TrackSafe Single Bay Cabinet (19” Frame) is a high-performance outdoor enclosure engineered to protect critical telecom and rail infrastructure in demanding environments.
Designed as part of the TrackSafe™ cabinet range, this single bay solution combines robust stainless steel construction, advanced security features and efficient thermal management, making it ideal for trackside, roadside and utility network applications.
Equipped with a fully adjustable 19-inch mounting frame (37U capacity), the cabinet provides flexibility for a wide range of equipment configurations, supporting both legacy and modern systems. Its natural convection cooling system effectively dissipates heat (up to ~500W) without the need for active components, reducing maintenance requirements and improving long-term reliability.
With IP54 environmental protection and LPS1175 Level 2 security certification, the cabinet ensures reliable operation and protection against dust, water ingress and opportunistic tampering. Designed for durability, it offers a 35+ year lifespan, making it a dependable infrastructure solution.
Key Features:
-
Single bay cabinet with 37U capacity
-
19-inch adjustable mounting frame
-
IP54-rated enclosure for outdoor protection
-
LPS1175 Issue 8 Level 2 security rating
-
Natural convection cooling system (no moving parts)
-
Heat dissipation up to ~500W (ΔT ~8°C)
-
1.4003 stainless steel construction for durability
-
Dual-skin insulated design for improved thermal control
-
Front and rear access doors for easy installation
-
3-point locking system with padlock compatibility
-
Modular removable gland plates for cable entry flexibility
-
Designed for 35+ year service life
Technical Specifications:
-
Product Type: External equipment cabinet
-
Mounting Format: 19-inch adjustable / configurable
-
Rack Capacity: 37U
-
Dimensions (H × W × D): 2070 × 700 × 700 mm
-
Weight: ~285 kg
-
Material: 1.4003 Stainless Steel
-
Finish: Polyester powder coated
-
Colour: Telegrey (RAL 7045)
Security & Compliance:
-
IP Rating: IP54 (EN 60529)
-
Security Rating: LPS1175 Issue 8 Level 2
-
Rail Compliance: NR/L2/SIG/19820/K02
-
Quality Standard: ISO 9001:2015
Additional Features:
-
Free-standing internal frame for maintenance without disruption
-
Removable gland plates for future expansion
-
Door-mounted A3 document holder and optional laptop shelf
-
M16 lifting brackets for safe handling
-
Integrated earthing system with bonded panels
-
Peaked removable roof for enhanced weather protection
Applications:
-
Rail and trackside telecom infrastructure
-
Utility and roadside network enclosures
-
Fibre and power distribution points
-
Industrial outdoor equipment housing
-
Secure communications and control systems
