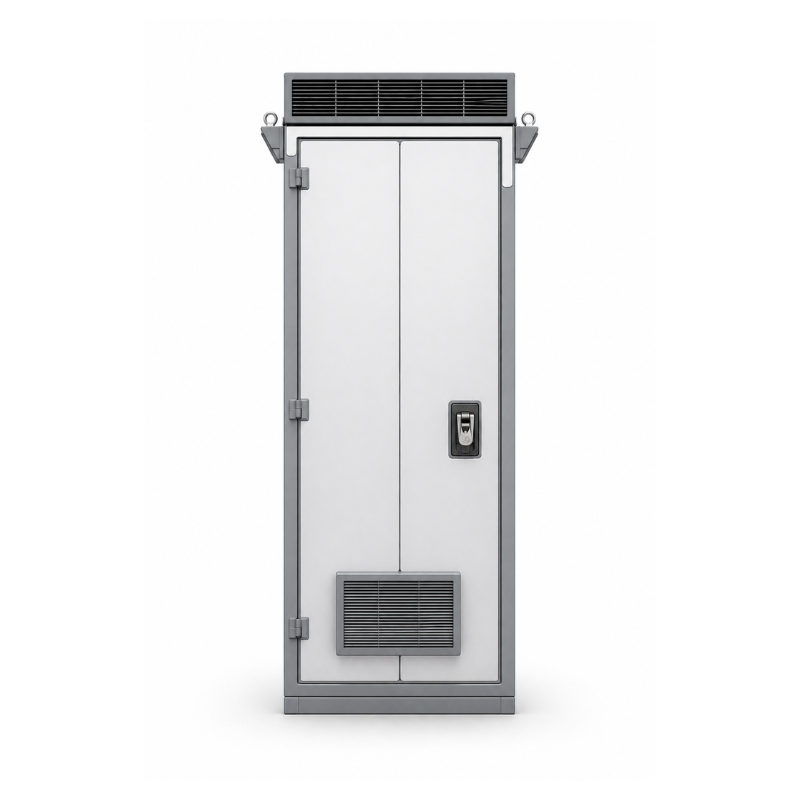

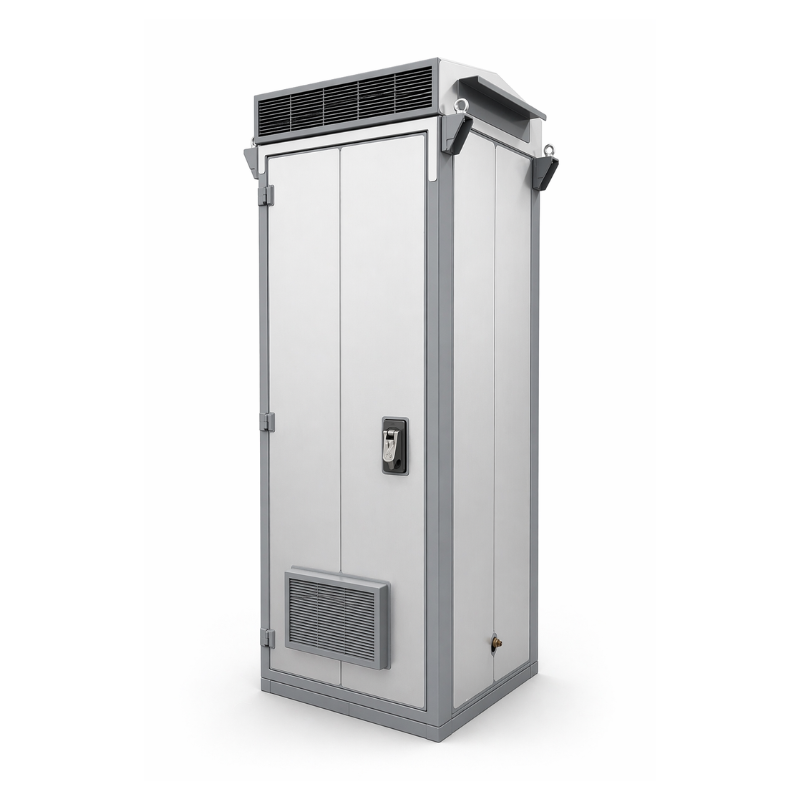

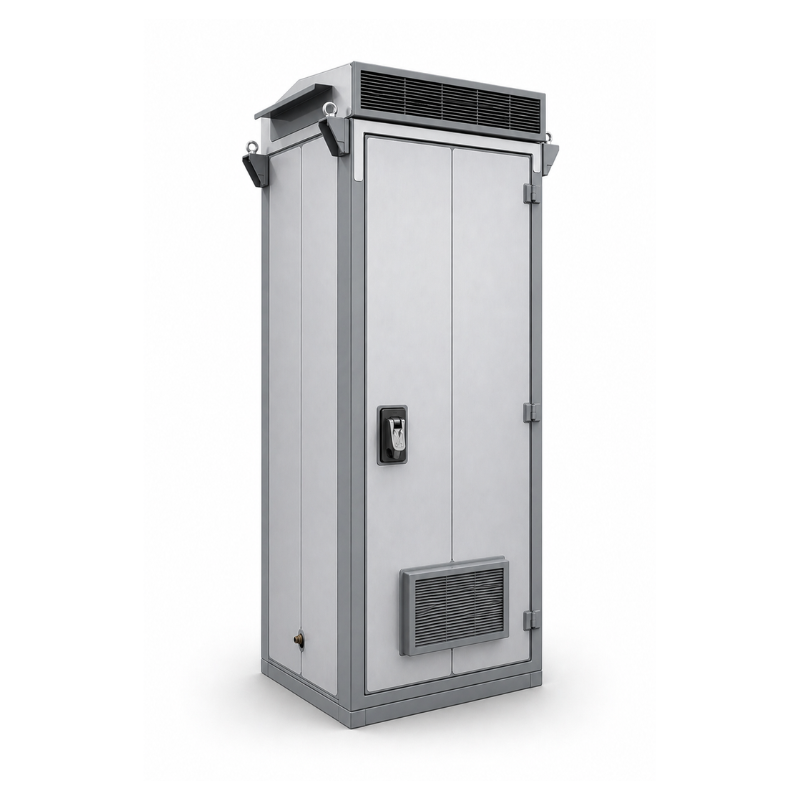

Rainford TrackSafe Single Bay Cabinet (BRS SM868 Frame)
The Rainford TrackSafe Single Bay Cabinet (BRS SM868 Frame) is a high-security outdoor enclosure designed to protect critical telecom and rail infrastructure in demanding environments. Part of the TrackSafe™ cabinet range by Rainford, this cabinet is engineered to deliver maximum durability, security and thermal efficiency for trackside and infrastructure deployments. It is specifically configured with a BRS SM868 mounting frame, providing compatibility with rail-standard equipment configurations where non-19” mounting formats are required.
Constructed from 1.4003 stainless steel with a polyester powder-coated finish, the cabinet offers long-term resistance to corrosion, weather exposure and mechanical wear. Its dual-skin insulated design and natural convection cooling system enable efficient heat dissipation (up to ~500W) without active cooling, reducing maintenance and improving reliability.
With IP54 environmental protection and LPS1175 Issue 8 Level 2 security certification, the cabinet ensures protection against dust, water ingress and opportunistic tampering—making it ideal for rail and roadside applications. These cabinets are specifically designed to withstand harsh outdoor environments including vibration, weather exposure and temperature variation, ensuring long-term reliability of housed equipment.
Key Features:
-
Single bay cabinet with BRS SM868 mounting frame
-
Designed for rail-standard equipment configurations
-
IP54-rated enclosure for outdoor protection
-
LPS1175 Issue 8 Level 2 security rating
-
Natural convection cooling system (no moving parts)
-
Heat dissipation up to ~500W (ΔT ~8°C)
-
1.4003 stainless steel construction for durability
-
Dual-skin insulated design for thermal efficiency
-
Front and rear access doors for installation and maintenance
-
3-point locking system with padlock compatibility
-
Modular removable gland plates for flexible cable entry
-
Designed for 35+ year service life
Technical Specifications:
-
Product Type: External equipment cabinet
-
Mounting Format: BRS SM868 frame (rail standard)
-
Rack Capacity: 37U equivalent internal configuration
-
Dimensions (H × W × D): 2070 × 700 × 700 mm
-
Weight: ~285 kg
-
Material: 1.4003 Stainless Steel
-
Finish: Polyester powder coated
-
Colour: Telegrey (RAL 7045)
Security & Compliance:
-
IP Rating: IP54 (EN 60529)
-
Security Rating: LPS1175 Issue 8 Level 2
-
Rail Compliance: NR/L2/SIG/19820/K02
-
Quality Standard: ISO 9001:2015
Additional Features:
-
Free-standing internal frame for maintenance without disruption
-
Removable gland plates for upgrades and expansion
-
Door-mounted A3 document holder and laptop shelf
-
M16 lifting brackets for safe installation
-
Integrated earthing system with bonded panels
-
Peaked removable roof for enhanced weather protection
Applications:
-
Rail and trackside signalling infrastructure
-
Telecom and fibre network enclosures
-
Utility and roadside communications cabinets
-
Secure housing for BRS-standard equipment
-
Industrial outdoor equipment protection
