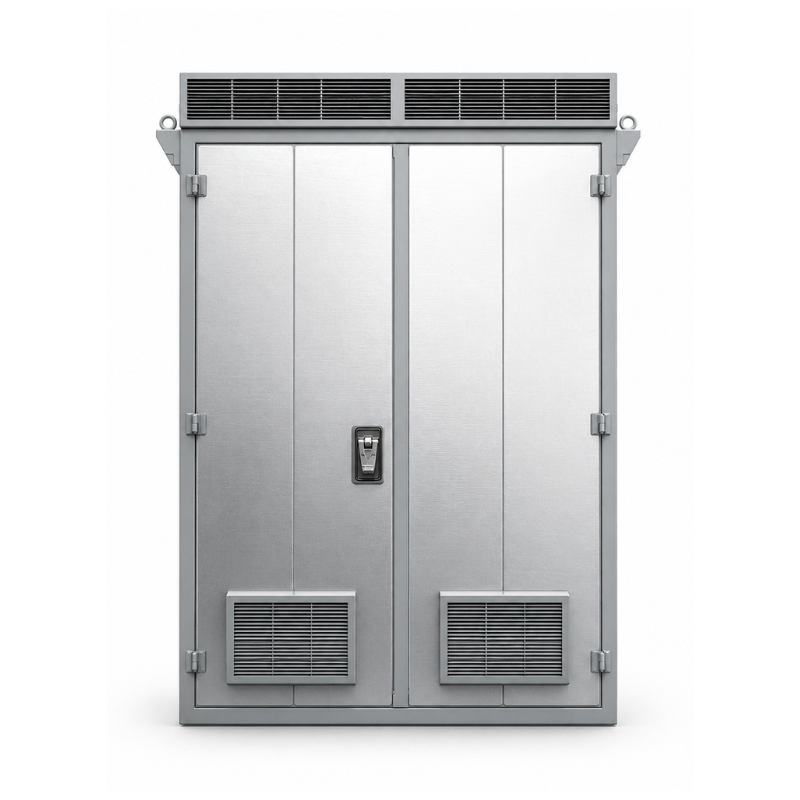

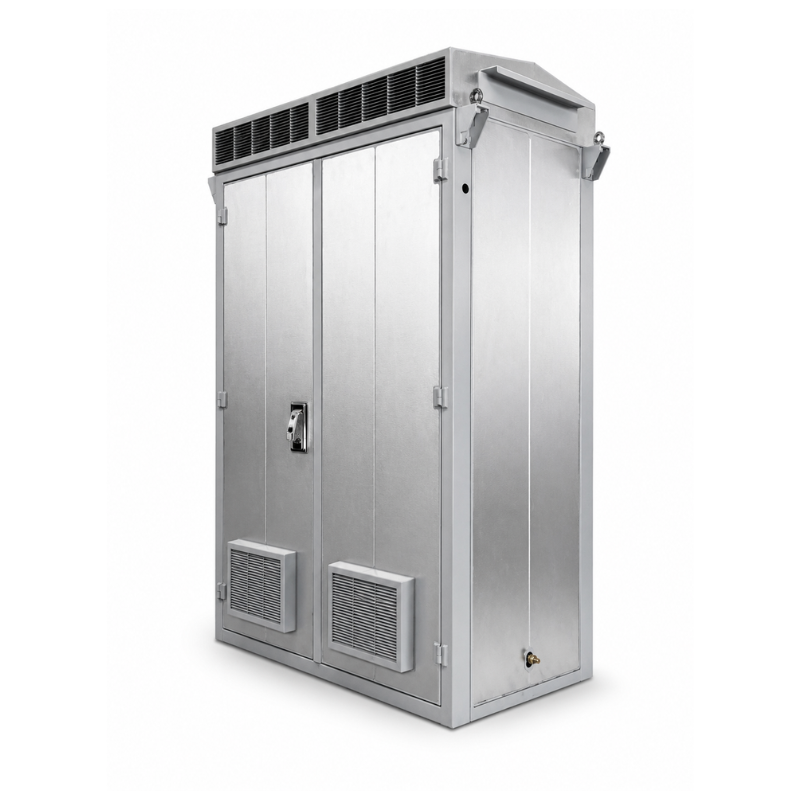

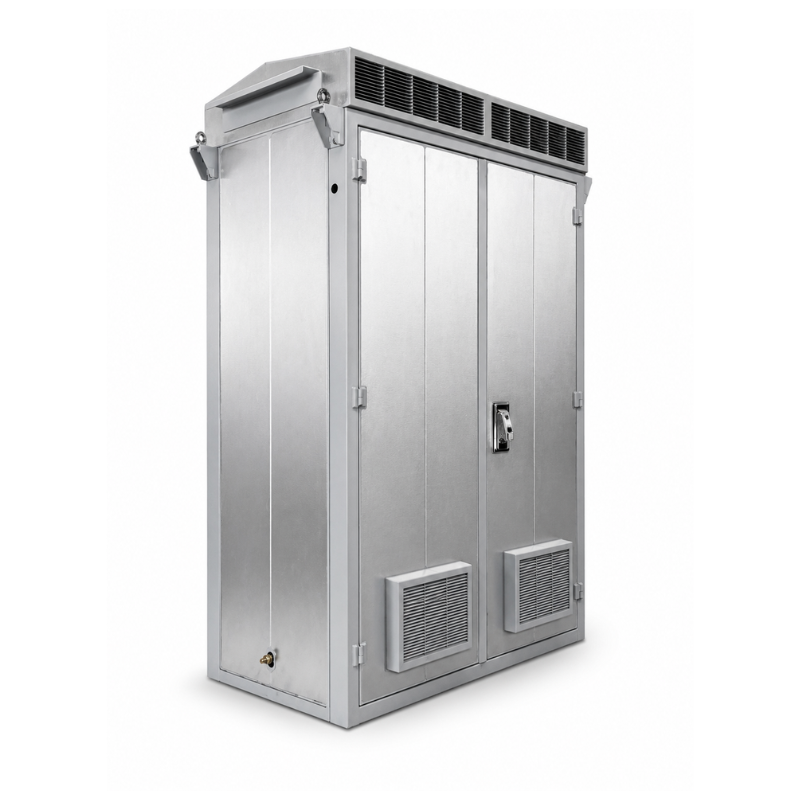

Rainford TrackSafe Double Bay Wide Frame Cabinet (Empty with Plinth Kit)

Rainford TrackSafe Double Bay Wide Frame Cabinet (Empty with Plinth Kit)

The Rainford TrackSafe Double Bay Wide Frame Cabinet (Empty with Plinth Kit) is a high-capacity, high-security outdoor enclosure engineered to protect critical telecom and rail infrastructure in demanding environments. Part of the TrackSafe™ cabinet range, this wide frame double bay configuration provides increased internal working space and enhanced accessibility, making it ideal for high-density equipment installations and complex network integrations.

Supplied empty with a plinth kit, the cabinet is ready for secure installation on GRP platforms or concrete bases, ensuring a stable and durable foundation for trackside and infrastructure deployments. TrackSafe cabinets are designed with advanced materials, improved weather resistance and superior natural convection thermal performance, enabling efficient passive cooling of up to ~500W without active components.

Constructed from 1.4003 stainless steel with a polyester powder-coated finish, the enclosure provides excellent resistance to corrosion, environmental exposure and mechanical stress. Its dual-skin insulated design enhances thermal efficiency, while the free-standing internal frame allows panel replacement without disrupting installed equipment.

With IP54 protection against dust and water ingress and LPS1175 Issue 8 Level 2 security certification, the cabinet delivers robust environmental protection and resistance against opportunistic tampering. Designed for longevity, it offers a 35+ year service life, ensuring reliable long-term performance.

Key Features:

• Double bay wide frame cabinet for increased internal capacity

• Supplied empty with plinth kit for secure installation

• Enhanced access and working space for complex installations

• IP54-rated enclosure for outdoor protection

• LPS1175 Issue 8 Level 2 security rating

• Natural convection cooling system (no moving parts)

• Heat dissipation up to ~500W (ΔT ~6–8°C)

• Dual-skin insulated design for improved thermal performance

• 1.4003 stainless steel construction for durability

• Front and rear access doors for installation and maintenance

• 3-point locking system with padlock compatibility

• Modular removable gland plates for flexible cable entry

• Designed for 35+ year lifespan

Technical Specifications:

• Product Type: External equipment cabinet (empty with plinth)

• Mounting Format: Configurable (19” and BRS compatible)

• Rack Capacity: 37U per bay (configurable)

• Dimensions (H × W × D): 2070 × 1300 × 700 mm (wide frame format)

• Weight: ~520 kg (cabinet only)

• Material: 1.4003 Stainless Steel

• Finish: Polyester powder coated

• Colour: Telegrey (RAL 7045)

Security & Compliance

• IP Rating: IP54 (EN 60529)

• Security Rating: LPS1175 Issue 8 Level 2

• Rail Compliance: NR/L2/SIG/19820/K02

• Quality Standard: ISO 9001:2015

Additional Features:

• Free-standing internal frame enables panel replacement without equipment disruption

• Removable gland plates for future upgrades and expansion

• Door-mounted A3 document holder and hinged laptop shelf

• M16 lifting brackets for safe installation

• Integrated earthing system with bonded panels

• Peaked removable roof for enhanced weather protection

• Maintainable filter media for airflow and cooling efficiency

Applications:

• Rail and trackside telecom infrastructure

• High-density network equipment enclosures

• Fibre and power distribution points

• Utility and roadside communications cabinets

• Industrial outdoor equipment protection
