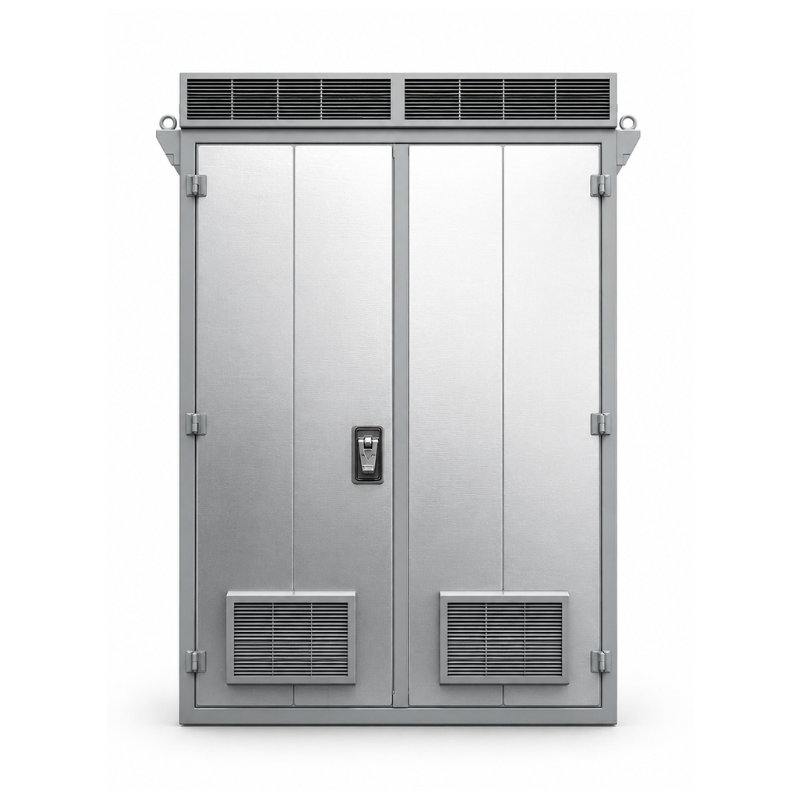

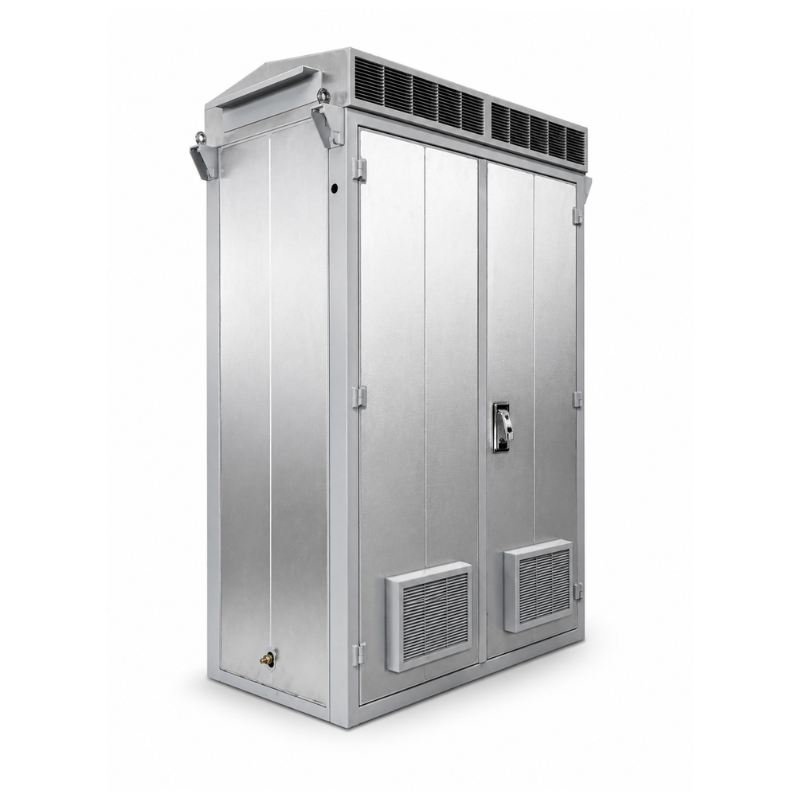

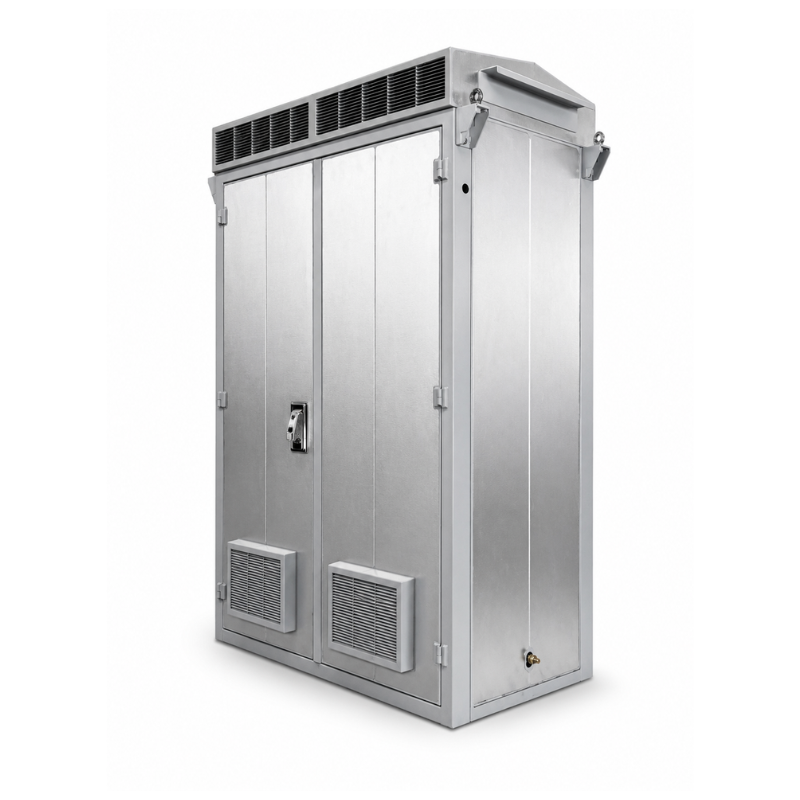

Rainford TrackSafe Double Bay Wide Frame Cabinet (Empty)

Rainford TrackSafe Double Bay Cabinet (Empty)

The Rainford TrackSafe Double Bay Cabinet (Empty) is a high-capacity, high-security outdoor enclosure engineered to protect critical telecom and rail infrastructure in demanding environments.

Part of the TrackSafe™ cabinet range, this double bay cabinet is designed to deliver maximum durability, enhanced weather resistance and superior thermal performance, making it ideal for long-term deployment in trackside, roadside and utility network applications. The TrackSafe design incorporates advanced materials and a highly efficient natural convection cooling system, ensuring reliable operation while dissipating up to ~500W of heat without active components.

Constructed from 1.4003 stainless steel with a polyester powder-coated finish, the enclosure provides excellent resistance to corrosion, environmental exposure and mechanical stress. Its dual-skin insulated structure enhances thermal efficiency, while the free-standing internal frame allows panel replacement without disrupting installed equipment.

With IP54 protection against dust and water ingress and LPS1175 Issue 8 Level 2 security certification, the cabinet offers robust protection against environmental factors and opportunistic tampering. Designed for longevity, it delivers a 35+ year service life, ensuring dependable performance across its lifecycle.

Key Features:

• Double bay cabinet supplied empty for flexible configuration

• High-capacity enclosure for telecom and rail infrastructure

• IP54-rated protection against dust and water ingress

• LPS1175 Issue 8 Level 2 security rating

• Natural convection cooling system (no moving parts)

• Heat dissipation up to ~500W (ΔT ~6–8°C)

• Dual-skin insulated design for enhanced thermal performance

• 1.4003 stainless steel construction for durability

• Front and rear access doors for easy installation and maintenance

• 3-point locking system with padlock compatibility

• Modular removable gland plates for flexible cable entry

• Designed for 35+ year lifespan

Technical Specifications:

• Product Type: External equipment cabinet (empty)

• Mounting Format: Configurable (19” and BRS compatible)

• Rack Capacity: 37U per bay (configurable)

• Dimensions (H × W × D): 2070 × 1300 × 700 mm

• Weight: ~520 kg

• Material: 1.4003 Stainless Steel

• Finish: Polyester powder coated

• Colour: Telegrey (RAL 7045)

Security & Compliance:

• IP Rating: IP54 (EN 60529)

• Security Rating: LPS1175 Issue 8 Level 2

• Rail Compliance: NR/L2/SIG/19820/K02

• Quality Standard: ISO 9001:2015

Additional Features:

• Free-standing internal frame enables panel replacement without equipment disruption

• Removable gland plates for future upgrades and expansion

• Door-mounted A3 document holder and hinged laptop shelf

• M16 lifting brackets for safe installation

• Integrated earthing system with bonded panels

• Peaked removable roof for enhanced weather protection

• Maintainable filter media for airflow and cooling efficiency

Applications:

• Rail and trackside telecom infrastructure

• High-capacity network equipment enclosures

• Fibre and power distribution points

• Utility and roadside communications cabinets

• Industrial outdoor equipment protection
