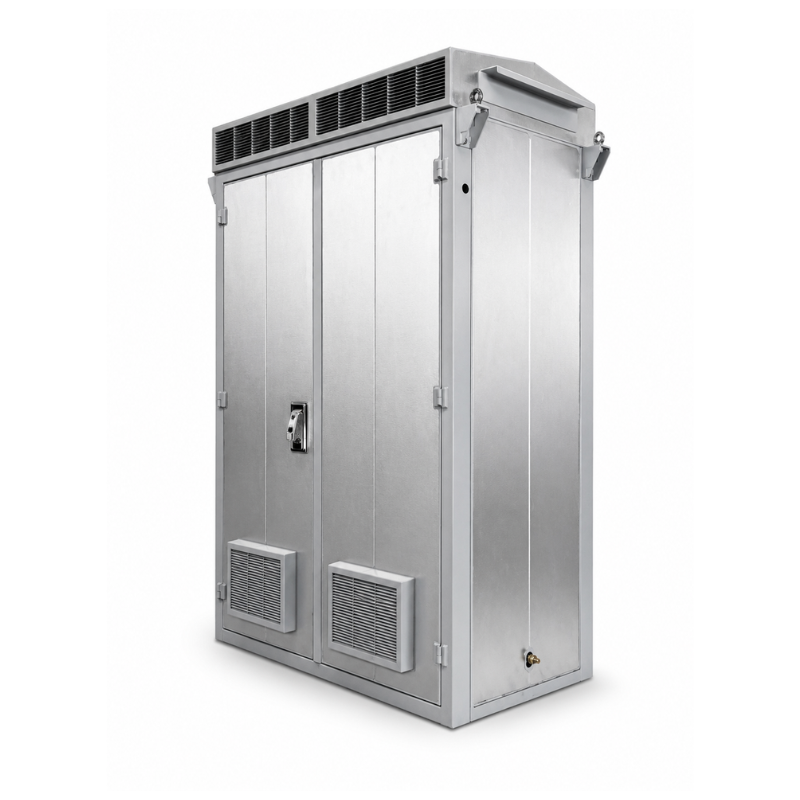

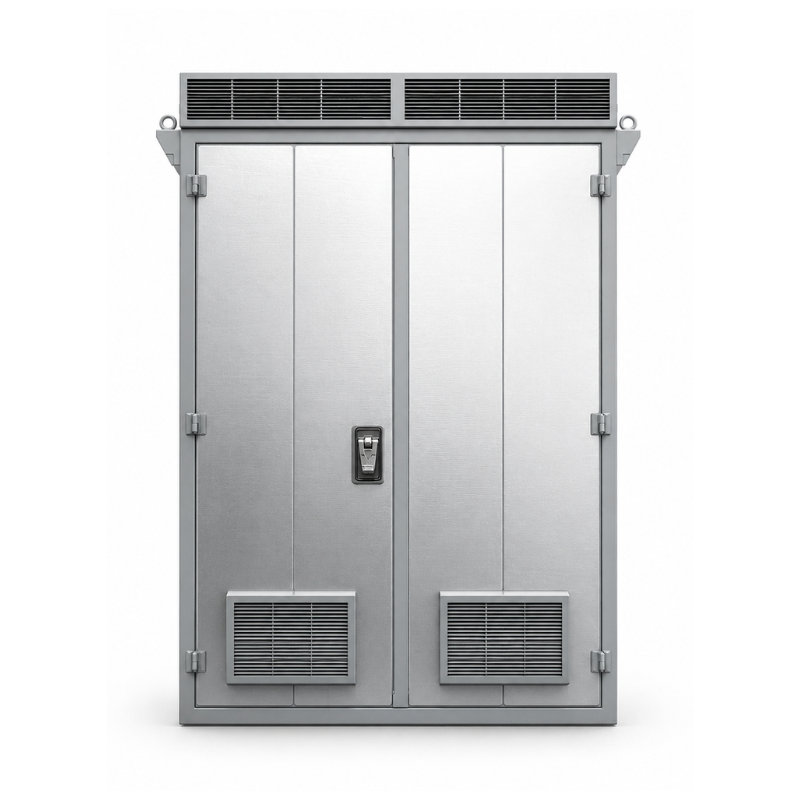

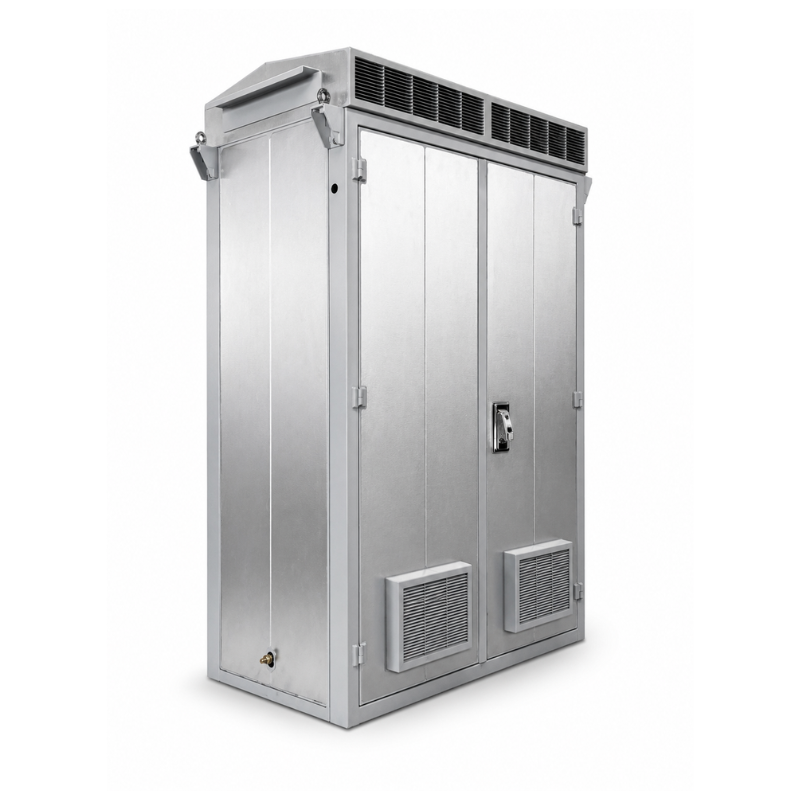

Rainford TrackSafe Double Bay Cabinet (BRS SM867 Frame with Plinth Kit)
The Rainford TrackSafe Double Bay Cabinet (BRS SM867 Frame with Plinth Kit) is a high-capacity, high-security outdoor enclosure designed to protect critical telecom and rail infrastructure in demanding trackside environments.
Part of the TrackSafe™ cabinet range, this configuration features a BRS SM867 mounting frame, ensuring full compatibility with rail-standard signalling and control equipment. Supplied with a plinth kit, the cabinet is ready for secure installation on GRP platforms or concrete bases, providing a stable and durable foundation for infrastructure deployment.
Engineered for harsh outdoor conditions, the cabinet incorporates a dual-skin insulated structure and natural convection cooling system, enabling efficient passive heat dissipation of up to ~500W without active components, improving reliability and reducing maintenance requirements.
Manufactured from 1.4003 stainless steel with a polyester powder-coated finish, the enclosure offers excellent resistance to corrosion, vibration and environmental exposure typically found in rail environments. It is designed to maintain a stable internal environment, helping extend equipment lifespan and reduce operational costs.
Key Features:
-
Double bay cabinet with BRS SM867 mounting frame
-
Supplied with plinth kit for secure installation
-
Designed for rail-standard equipment configurations
-
High-capacity enclosure for signalling and telecom systems
-
IP54-rated protection against dust and water ingress
-
LPS1175 Issue 8 Level 2 security rating
-
Natural convection cooling system (no moving parts)
-
Heat dissipation up to ~500W (ΔT ~6–8°C)
-
Dual-skin insulated design for enhanced thermal performance
-
1.4003 stainless steel construction for durability
-
Front and rear access doors for installation and maintenance
-
3-point locking system with padlock compatibility
-
Modular removable gland plates for flexible cable entry
-
Designed for 35+ year lifespan
Technical Specifications:
-
Product Type: External equipment cabinet (with plinth)
-
Mounting Format: BRS SM867 frame (rail standard)
-
Rack Capacity: 37U equivalent per bay (configurable)
-
Dimensions (H × W × D): 2070 × 1300 × 700 mm
-
Weight: ~520 kg (cabinet only)
-
Material: 1.4003 Stainless Steel
-
Finish: Polyester powder coated
-
Colour: Telegrey (RAL 7045)
Security & Compliance:
-
IP Rating: IP54 (EN 60529)
-
Security Rating: LPS1175 Issue 8 Level 2
-
Rail Compliance: NR/L2/SIG/19820/K02
-
Quality Standard: ISO 9001:2015
Additional Features:
-
Free-standing internal frame allows panel replacement without disrupting equipment
-
Removable gland plates for future upgrades and expansion
-
Door-mounted A3 document holder and hinged laptop shelf
-
M16 lifting brackets for safe installation
-
Integrated earthing system with bonded panels
-
Peaked removable roof for enhanced weather protection
-
Maintainable filter media for airflow and cooling efficiency
Applications:
-
Rail and trackside signalling infrastructure
-
Telecom and fibre network enclosures
-
High-capacity roadside and utility cabinets
-
Control and monitoring systems
-
Secure housing for BRS-standard equipment
