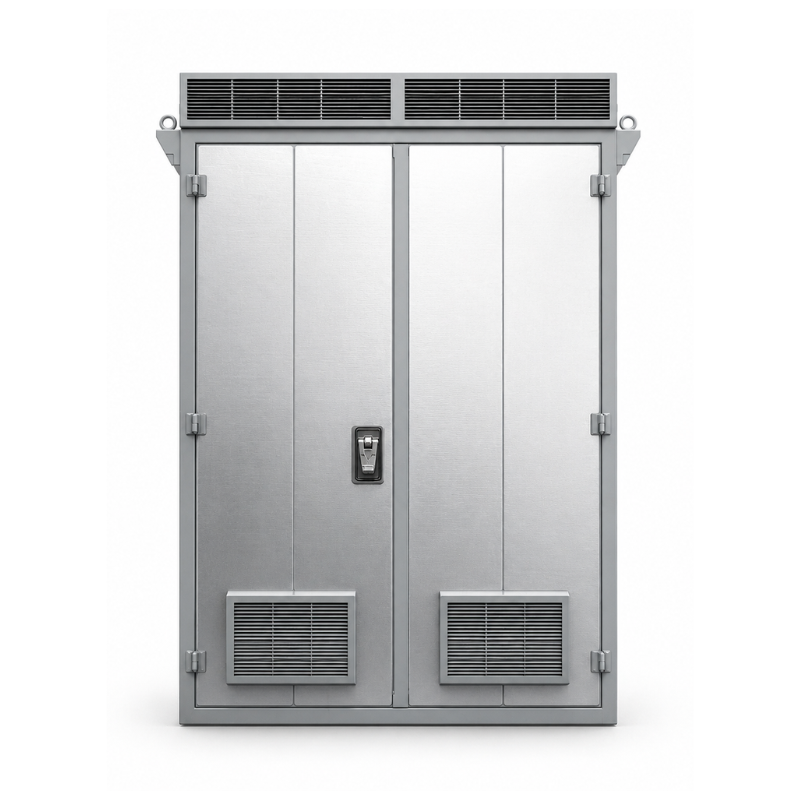

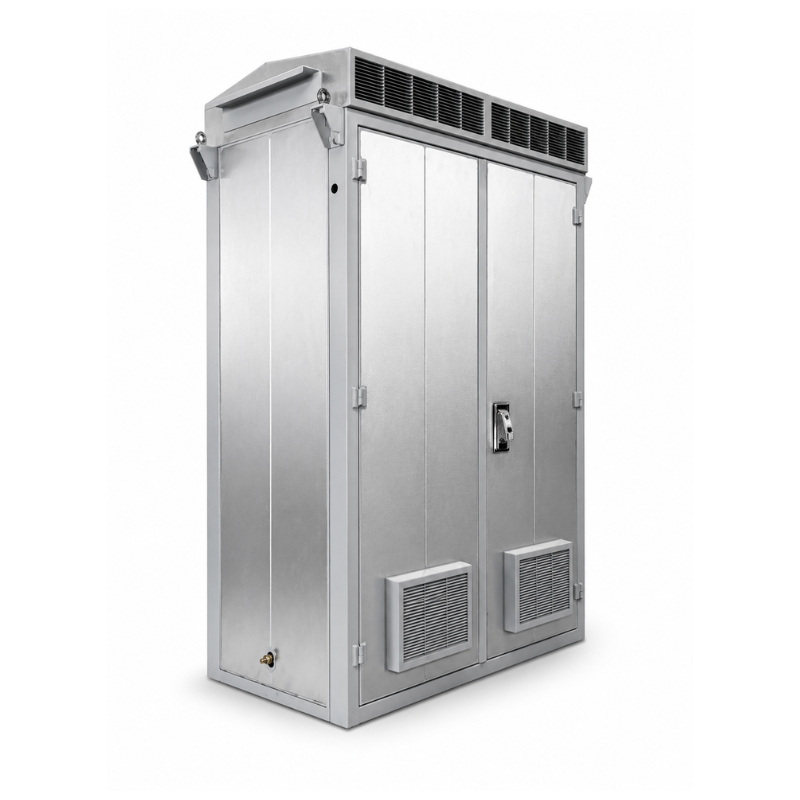

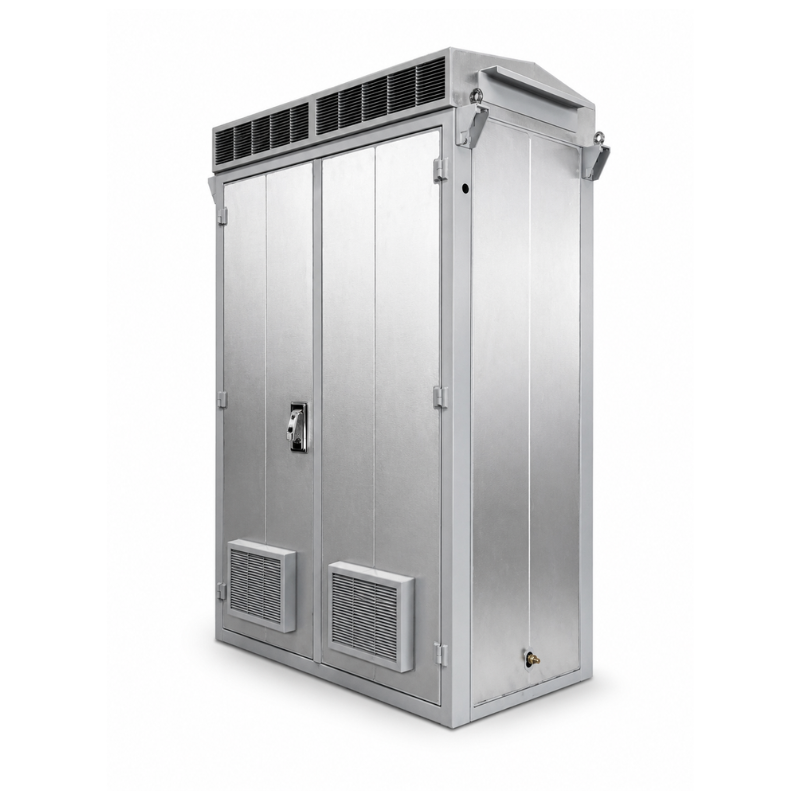

Rainford TrackSafe Double Bay Wide Frame Cabinet (BRS SM867 Frame)

Rainford TrackSafe Double Bay Wide Frame Cabinet (BRS SM867 Frame)

The Rainford TrackSafe Double Bay Wide Frame Cabinet (BRS SM867 Frame) is a high-capacity, high-security outdoor enclosure engineered to protect critical telecom and rail infrastructure in demanding environments. Designed as part of the TrackSafe™ cabinet range, this wide frame double bay configuration provides increased internal space and improved accessibility, making it ideal for high-density equipment installations and complex rail signalling systems.

Configured with a BRS SM867 mounting frame, the cabinet is tailored for rail-standard equipment integration, ensuring compatibility with signalling and control systems used across trackside infrastructure.

Manufactured from 1.4003 stainless steel with a polyester powder-coated finish, the enclosure offers excellent resistance to corrosion, harsh weather conditions and mechanical stress. Its dual-skin insulated design combined with a natural convection cooling system enables efficient passive heat dissipation (up to ~500W), eliminating the need for active cooling and reducing maintenance requirements.

With IP54-rated protection and LPS1175 Issue 8 Level 2 security certification, the cabinet ensures reliable performance in exposed environments while providing strong resistance to opportunistic tampering. Designed for longevity, it offers a 35+ year service life, making it a dependable infrastructure solution.

Key Features:

• Double bay wide frame cabinet for increased internal capacity

• BRS SM867 mounting frame for rail-standard equipment

• Enhanced accessibility for installation and maintenance

• IP54-rated enclosure for outdoor protection

• LPS1175 Issue 8 Level 2 security rating

• Natural convection cooling system (no moving parts)

• Heat dissipation up to ~500W (ΔT ~6–8°C)

• Dual-skin insulated design for improved thermal performance

• 1.4003 stainless steel construction for durability

• Front and rear access doors for easy installation

• 3-point locking system with padlock compatibility

• Modular removable gland plates for flexible cable entry

• Designed for 35+ year lifespan

Technical Specifications:

• Product Type: External equipment cabinet

• Mounting Format: BRS SM867 frame (rail standard)

• Rack Capacity: 37U equivalent per bay (configurable)

• Dimensions (H × W × D): 2070 × 1300 × 700 mm (wide frame format)

• Weight: ~520 kg

• Material: 1.4003 Stainless Steel

• Finish: Polyester powder coated

• Colour: Telegrey (RAL 7045)

Security & Compliance:

• IP Rating: IP54 (EN 60529)

• Security Rating: LPS1175 Issue 8 Level 2

• Rail Compliance: NR/L2/SIG/19820/K02

• Quality Standard: ISO 9001:2015

Additional Features:

• Free-standing internal frame allows panel replacement without disrupting equipment

• Removable gland plates for future upgrades and expansion

• Door-mounted A3 document holder and hinged laptop shelf

• M16 lifting brackets for safe installation

• Integrated earthing system with bonded panels

• Peaked removable roof for enhanced weather protection

• Maintainable filter media for airflow and cooling efficiency

Applications:

• Rail and trackside signalling infrastructure

• Telecom and fibre network enclosures

• High-density equipment installations

• Utility and roadside communications cabinets

• Secure housing for BRS-standard systems
