Rainford TrackSafe Double Bay Cabinet (BRS SM867 Frame with Plinth Kit)

Rainford TrackSafe Double Bay Cabinet (BRS SM867 Frame with Plinth Kit)

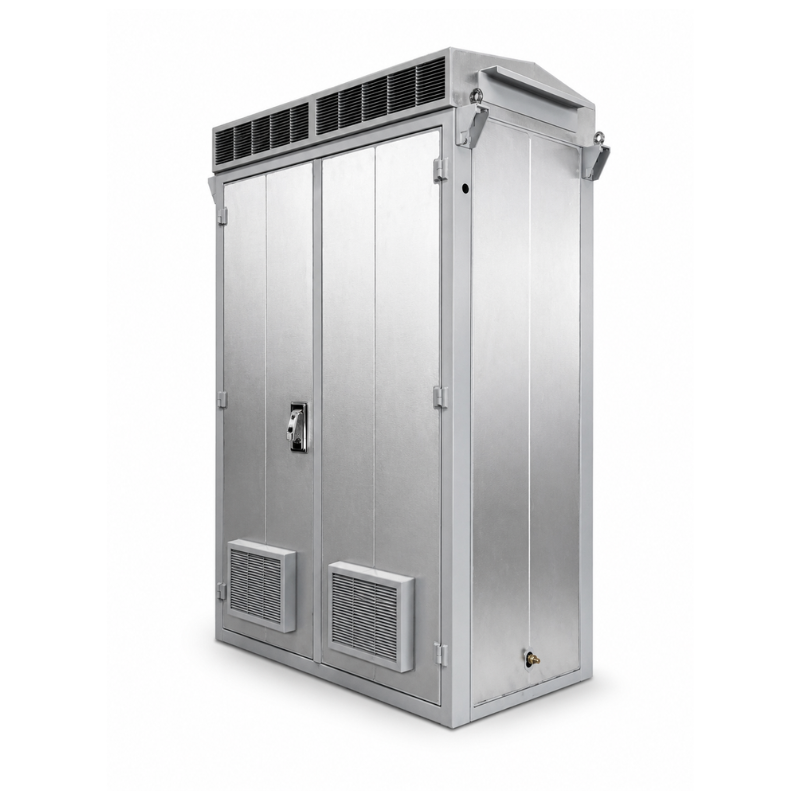

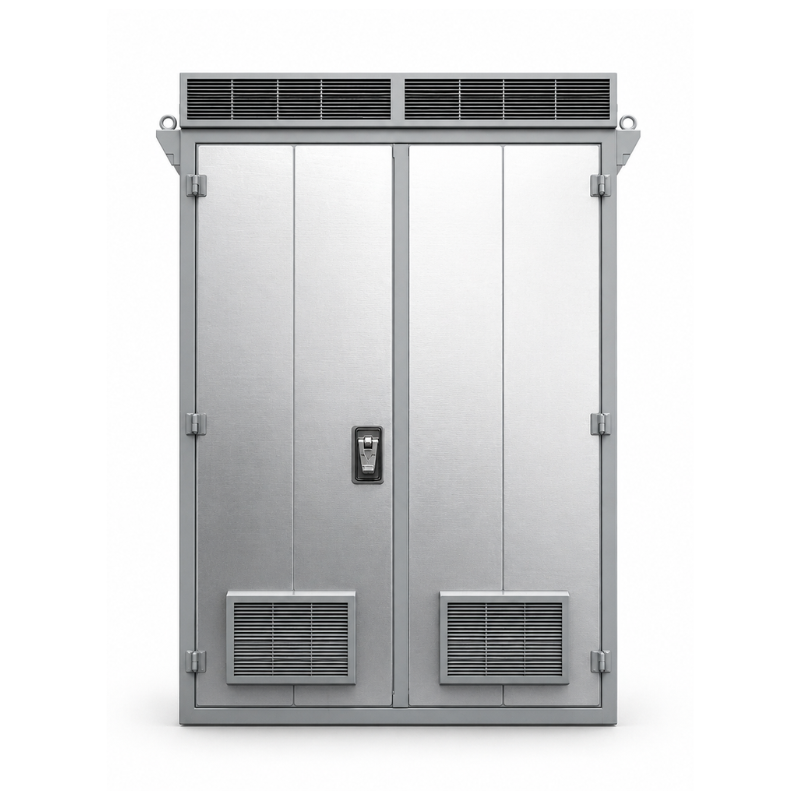

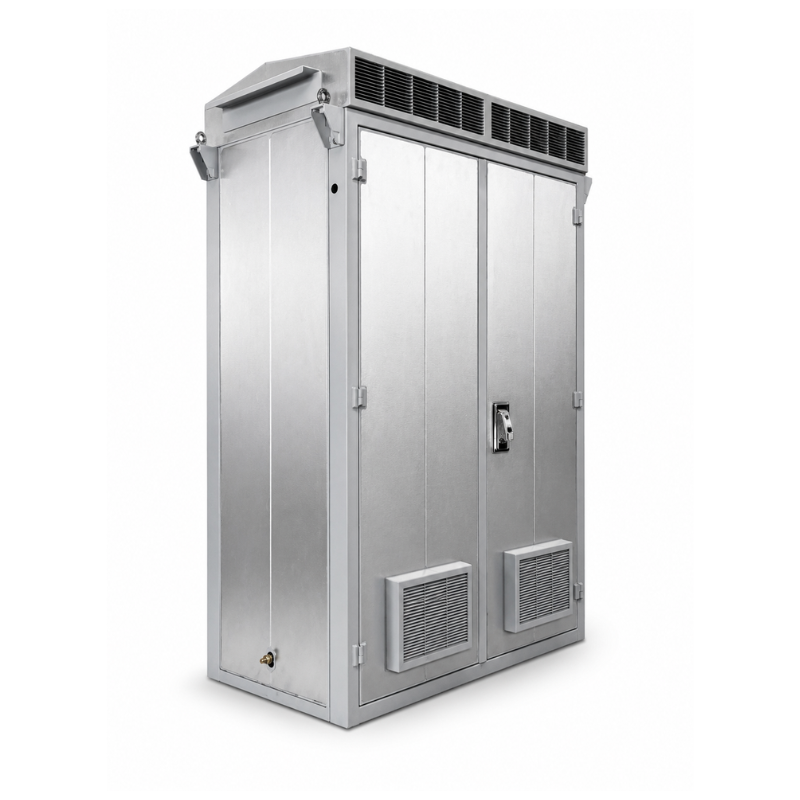

The Rainford TrackSafe Double Bay Cabinet (BRS SM867 Frame with Plinth Kit) is a high-capacity, high-security outdoor enclosure engineered to protect critical telecom and rail infrastructure in demanding environments.

Part of the TrackSafe™ cabinet range, this configuration is designed with a BRS SM867 mounting frame, ensuring compatibility with rail-standard equipment installations where specific mounting formats are required. Supplied with a plinth kit, the cabinet is ready for installation on GRP platforms or concrete bases, providing a stable and secure foundation for trackside deployments. TrackSafe cabinets are built for enhanced durability, improved weather resistance and superior natural convection thermal performance, making them ideal for long-term use in harsh outdoor environments.

Manufactured from 1.4003 stainless steel with a polyester powder-coated finish, the enclosure offers excellent resistance to corrosion, weather exposure and mechanical stress. Its dual-skin insulated construction and natural convection cooling system allow efficient passive heat dissipation of up to ~500W, eliminating the need for active cooling and reducing maintenance requirements.

With IP54 protection against dust and water ingress and LPS1175 Issue 8 Level 2 security certification, the cabinet ensures robust environmental protection and resistance against opportunistic tampering. Designed for longevity, it delivers a 35+ year service life, making it a dependable infrastructure solution.

Key Features:

• Double bay cabinet with BRS SM867 mounting frame

• Supplied with plinth kit for secure installation

• Designed for rail-standard equipment configurations

• High-capacity enclosure for signalling and telecom systems

• IP54-rated protection against dust and water ingress

• LPS1175 Issue 8 Level 2 security rating

• Natural convection cooling system (no moving parts)

• Heat dissipation up to ~500W (ΔT ~6–8°C)

• Dual-skin insulated design for enhanced thermal performance

• 1.4003 stainless steel construction for durability

• Front and rear access doors for installation and maintenance

• 3-point locking system with padlock compatibility

• Modular removable gland plates for flexible cable entry

• Designed for 35+ year lifespan

Technical Specifications:

• Product Type: External equipment cabinet (with plinth)

• Mounting Format: BRS SM867 frame (rail standard)

• Rack Capacity: 37U equivalent internal configuration

• Dimensions (H × W × D): 2070 × 1300 × 700 mm

• Weight: ~520 kg (cabinet only)

• Material: 1.4003 Stainless Steel

• Finish: Polyester powder coated

• Colour: Telegrey (RAL 7045)

Security & Compliance:

• IP Rating: IP54 (EN 60529)

• Security Rating: LPS1175 Issue 8 Level 2

• Rail Compliance: NR/L2/SIG/19820/K02

• Quality Standard: ISO 9001:2015

Additional Features:

• Free-standing internal frame allows panel replacement without disrupting equipment

• Removable gland plates enable future upgrades and expansion

• Door-mounted A3 document holder and hinged laptop shelf

• M16 lifting brackets for safe installation

• Integrated earthing system with bonded panels

• Peaked removable roof for enhanced weather protection

• Maintainable filter media for airflow and cooling efficiency

Applications:

• Rail and trackside signalling infrastructure

• Telecom and fibre network enclosures

• High-capacity roadside and utility cabinets

• Control and monitoring systems

• Secure housing for BRS-standard equipment
