Rainford TrackSafe Double Bay Cabinet (BRS SM867 Frame)

Rainford TrackSafe Double Bay Cabinet (BRS SM867 Frame)

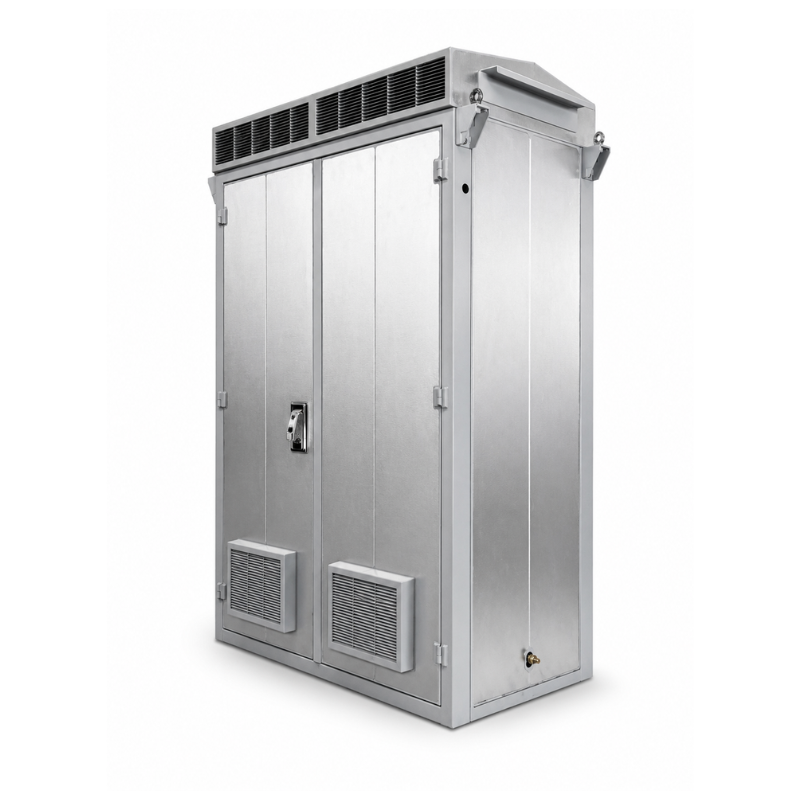

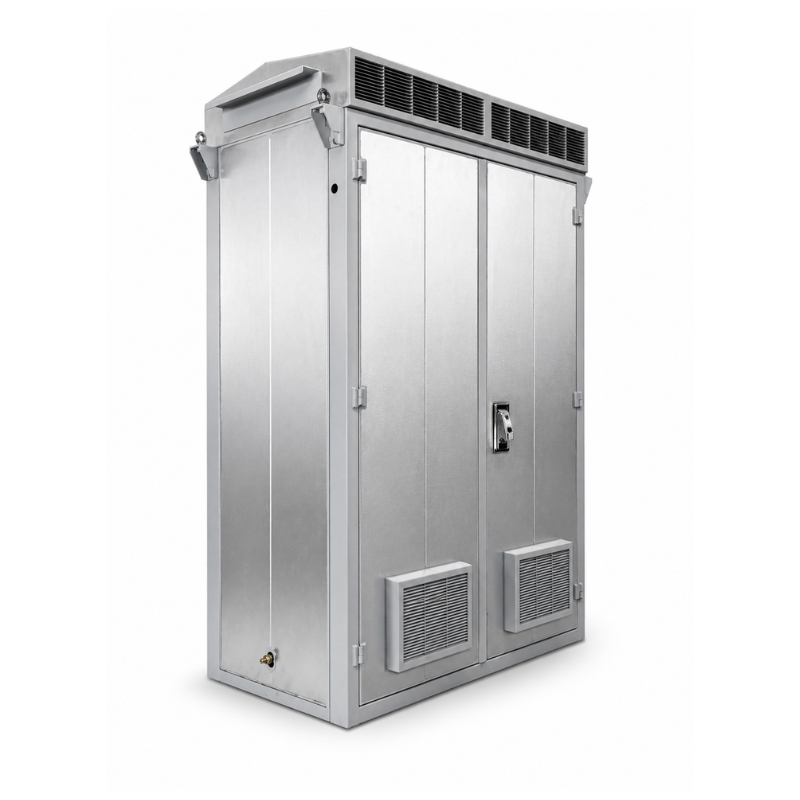

The Rainford TrackSafe Double Bay Cabinet (BRS SM867 Frame) is a high-capacity, high-security outdoor enclosure engineered to protect critical telecom and rail infrastructure in demanding environments. Part of the TrackSafe™ cabinet range, this configuration is designed with a BRS SM867 mounting frame, providing compatibility with rail-standard equipment installations where specific mounting formats are required. It is ideal for signalling, control and telecom systems within trackside environments.

TrackSafe cabinets are engineered for enhanced durability, improved weather resistance and superior natural convection thermal performance, ensuring reliable long-term operation in harsh outdoor conditions.

Constructed from 1.4003 stainless steel with a polyester powder-coated finish, the cabinet offers excellent resistance to corrosion, weather exposure and mechanical stress. Its dual-skin insulated construction and natural convection cooling system enable efficient passive heat dissipation of up to ~500W, eliminating the need for active cooling and reducing maintenance requirements.

With IP54 protection against dust and water ingress and LPS1175 Issue 8 Level 2 security certification, the cabinet ensures robust protection against environmental exposure and opportunistic tampering. Designed for longevity, it provides a 35+ year service life, making it a dependable infrastructure solution.

Key Features:

• Double bay cabinet with BRS SM867 mounting frame

• Designed for rail-standard equipment configurations

• High-capacity enclosure for signalling and telecom systems

• IP54-rated protection for outdoor environments

• LPS1175 Issue 8 Level 2 security rating

• Natural convection cooling system (no moving parts)

• Heat dissipation up to ~500W (ΔT ~6–8°C)

• Dual-skin insulated design for enhanced thermal performance

• 1.4003 stainless steel construction for durability

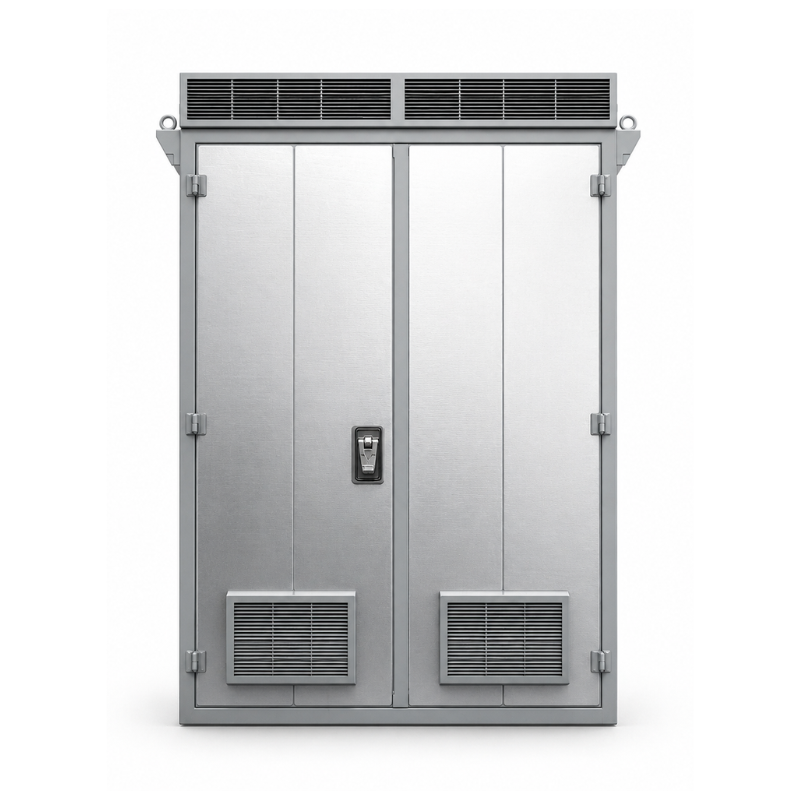

• Front and rear access doors for installation and maintenance

• 3-point locking system with padlock compatibility

• Modular removable gland plates for flexible cable entry

• Designed for 35+ year lifespan

Technical Specifications:

• Product Type: External equipment cabinet

• Mounting Format: BRS SM867 frame (rail standard)

• Rack Capacity: 37U equivalent internal configuration

• Dimensions (H × W × D): 2070 × 1300 × 700 mm

• Weight: ~520 kg

• Material: 1.4003 Stainless Steel

• Finish: Polyester powder coated

• Colour: Telegrey (RAL 7045)

Security & Compliance:

• IP Rating: IP54 (EN 60529)

• Security Rating: LPS1175 Issue 8 Level 2

• Rail Compliance: NR/L2/SIG/19820/K02

• Quality Standard: ISO 9001:2015

Additional Features:

• Free-standing internal frame enables panel replacement without disrupting equipment

• Removable gland plates for future upgrades and expansion

• Door-mounted A3 document holder and hinged laptop shelf

• M16 lifting brackets for safe installation

• Integrated earthing system with bonded panels

• Peaked removable roof for enhanced weather protection

• Maintainable filter media for airflow and cooling efficiency

Applications:

• Rail and trackside signalling infrastructure

• Telecom and fibre network enclosures

• High-capacity roadside and utility cabinets

• Control and monitoring systems

• Secure housing for BRS-standard equipment
