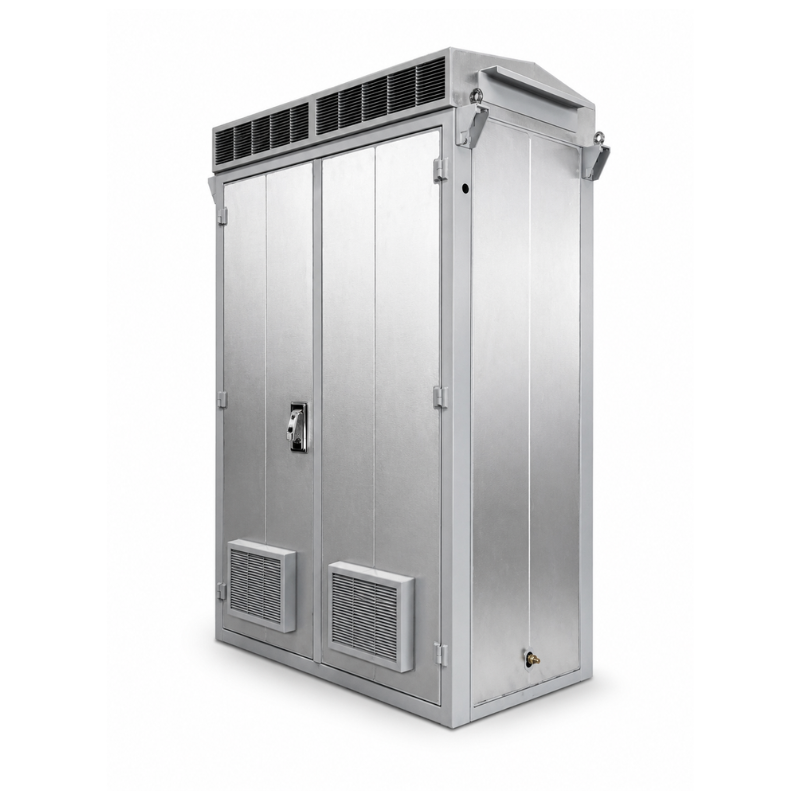

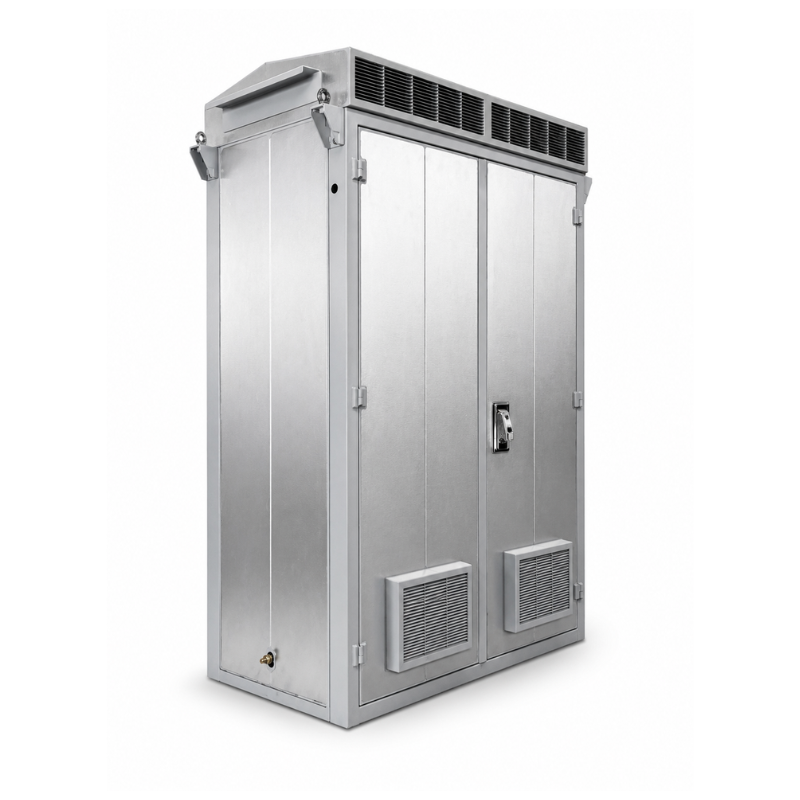

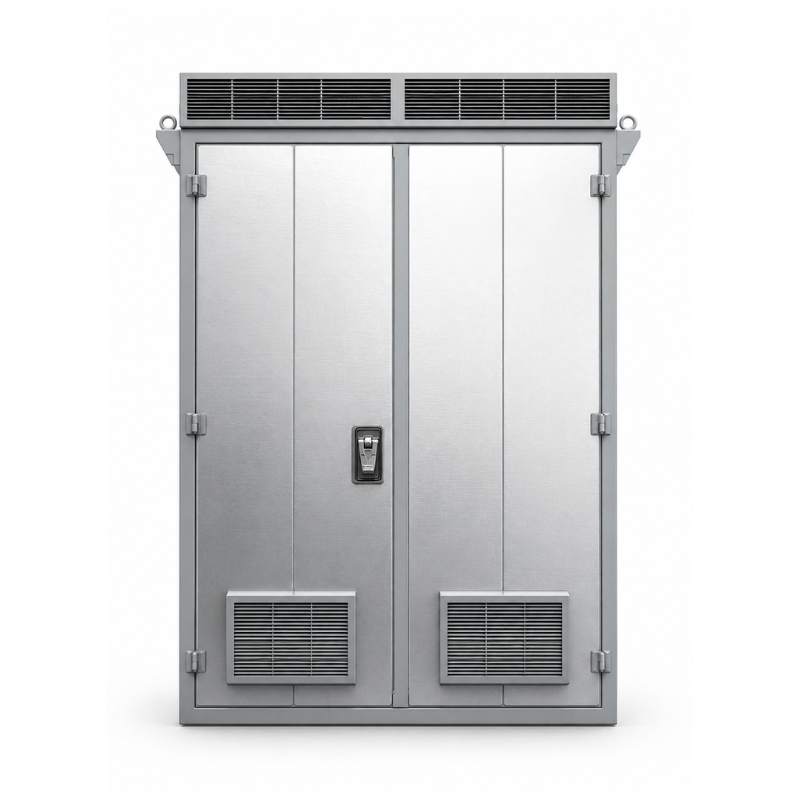

Rainford TrackSafe Double Bay Cabinet (2 x BRS SM868 Frame)

Rainford TrackSafe Double Bay Cabinet (2 × BRS SM868 Frame)

The Rainford TrackSafe Double Bay Cabinet (2 × BRS SM868 Frame) is a high-capacity, high-security outdoor enclosure engineered to protect critical telecom and rail infrastructure in demanding environments.

Part of the TrackSafe™ cabinet range, this configuration is specifically designed with dual BRS SM868 mounting frames, providing compatibility with rail-standard equipment configurations where non-19” formats are required. This makes it ideal for signalling, control and telecom applications within rail infrastructure.

Manufactured from 1.4003 stainless steel with a polyester powder-coated finish, the cabinet delivers excellent resistance to corrosion, harsh weather and mechanical impact. Its dual-skin insulated construction combined with natural convection cooling ensures efficient thermal management, dissipating heat without the need for active components—improving reliability and reducing maintenance.

Designed to perform in extreme trackside environments, TrackSafe cabinets are built to withstand vibration, weather exposure and operational stress, ensuring long-term protection of sensitive equipment.

Key Features:

• Double bay cabinet with 2 × BRS SM868 mounting frames

• Designed for rail-standard equipment configurations

• High-capacity enclosure for signalling and telecom systems

• IP54-rated protection against dust and water ingress

• LPS1175 Issue 8 Level 2 security rating

• Natural convection cooling system (no moving parts)

• Heat dissipation up to ~500W (ΔT ~6–8°C)

• 1.4003 stainless steel construction for durability

• Dual-skin insulated design for enhanced thermal performance

• Front and rear access doors for installation and maintenance

• 3-point locking system with padlock compatibility

• Modular removable gland plates for flexible cable entry

• Designed for 35+ year lifespan

Technical Specifications:

• Product Type: External equipment cabinet

• Mounting Format: 2 × BRS SM868 frames (rail standard)

• Rack Capacity: 37U equivalent per bay (configurable)

• Dimensions (H × W × D): 2070 × 1300 × 700 mm

• Weight: ~520 kg

• Material: 1.4003 Stainless Steel

• Finish: Polyester powder coated

• Colour: Telegrey (RAL 7045)

Security & Compliance:

• IP Rating: IP54 (EN 60529)

• Security Rating: LPS1175 Issue 8 Level 2

• Rail Compliance: NR/L2/SIG/19820/K02

• Quality Standard: ISO 9001:2015

Additional Features:

• Free-standing internal frame allows panel replacement without equipment disruption

• Removable gland plates for future expansion and upgrades

• Door-mounted A3 document holder and hinged laptop shelf

• M16 lifting brackets for safe installation

• Integrated earthing system with bonded panels

• Peaked removable roof for improved weather protection

• Maintainable filter media for airflow and thermal efficiency

Applications:

• Rail and trackside signalling infrastructure

• Telecom and fibre network enclosures

• High-capacity roadside and utility cabinets

• Control and monitoring systems

• Secure housing for BRS-standard equipment
