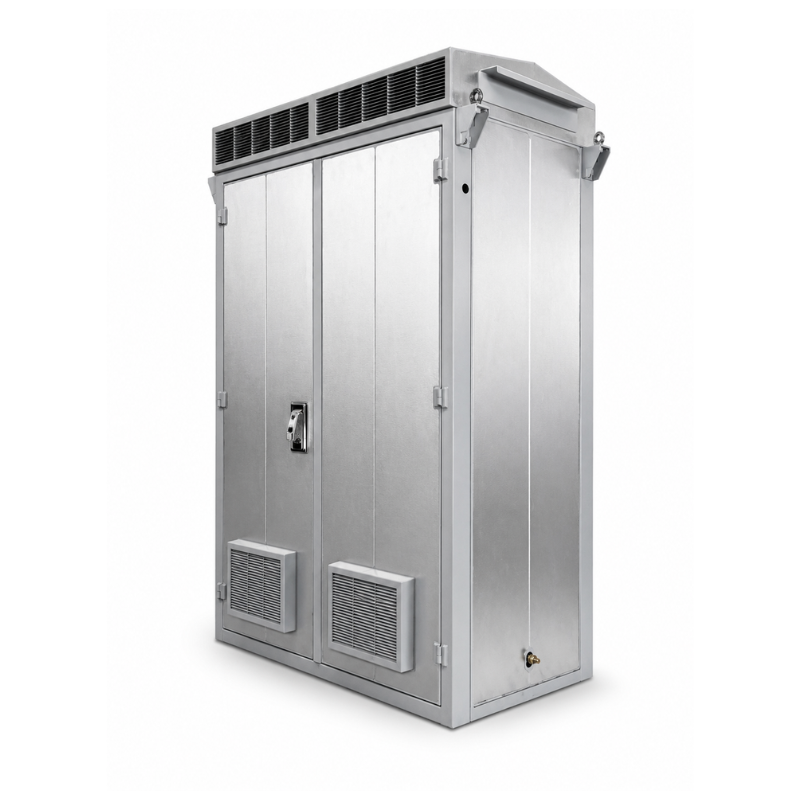

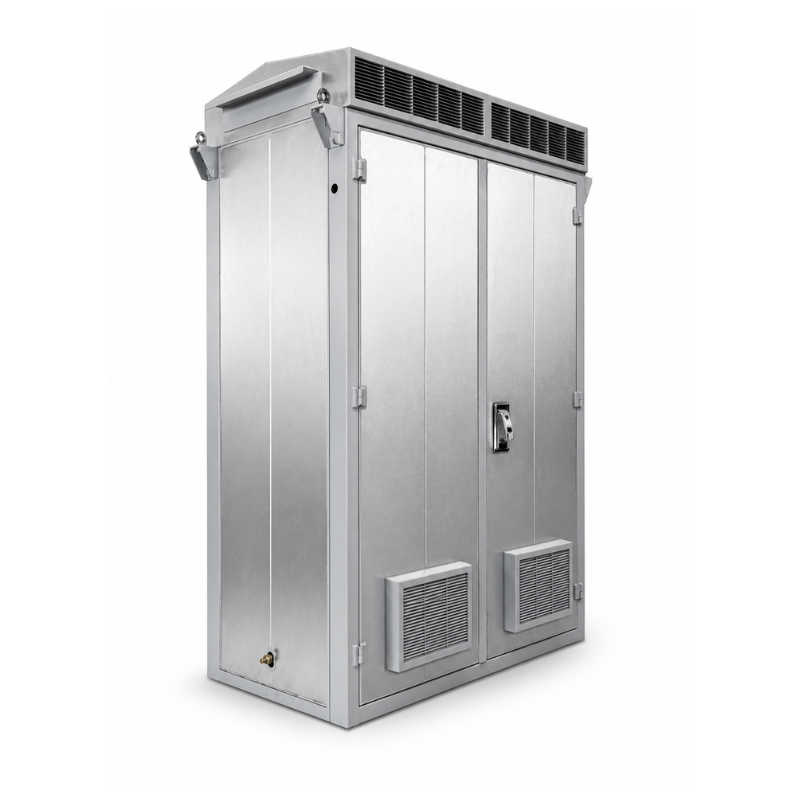

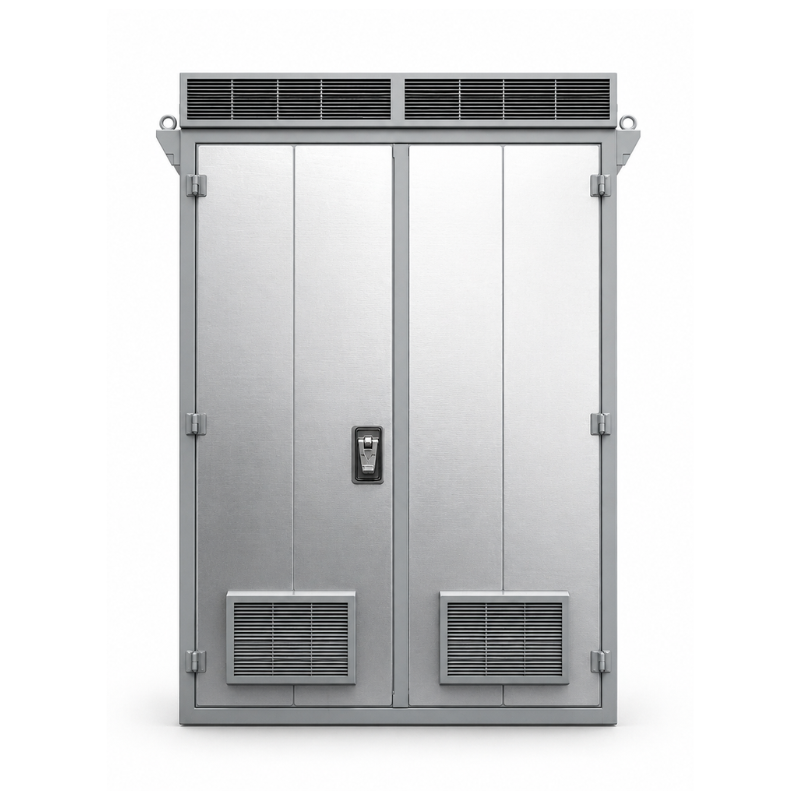

Rainford TrackSafe Double Bay Cabinet (2 × 19” Frame with Plinth Kit)
The Rainford TrackSafe Double Bay Cabinet (2 × 19” Frame with Plinth Kit) is a high-capacity, high-security outdoor enclosure engineered to protect critical telecom and rail infrastructure in demanding environments.
Part of the TrackSafe™ cabinet range, this configuration features dual 19-inch mounting frames (2 × 37U), providing maximum flexibility for high-density equipment installations across modern and legacy network deployments. Supplied with a plinth kit, the cabinet is designed for secure installation on GRP platforms or concrete bases, ensuring a stable and durable foundation.
Manufactured from 1.4003 stainless steel with a polyester powder-coated finish, the cabinet offers excellent resistance to corrosion, harsh weather and mechanical impact. Its dual-skin insulated construction and natural convection cooling system enable efficient thermal management, dissipating up to ~500W of heat without active cooling, reducing maintenance requirements and improving long-term reliability.
With IP54 protection against dust and water ingress and LPS1175 Issue 8 Level 2 security certification, the enclosure provides dependable environmental protection and resistance against opportunistic tampering—ideal for trackside and critical infrastructure deployments.
Key Features:
-
Double bay cabinet with 2 × 19” adjustable frames
-
Supplied with plinth kit for secure installation
-
High-capacity dual 37U configuration
-
IP54-rated enclosure for outdoor protection
-
LPS1175 Issue 8 Level 2 security rating
-
Natural convection cooling system (no moving parts)
-
Heat dissipation up to ~500W (ΔT ~6–8°C)
-
1.4003 stainless steel construction for durability
-
Dual-skin insulated design for improved thermal performance
-
Front and rear access doors for installation and maintenance
-
3-point locking system with padlock compatibility
-
Modular removable gland plates for flexible cable entry
-
Designed for 35+ year lifespan
Technical Specifications:
-
Product Type: External equipment cabinet (with plinth)
-
Mounting Format: 2 × 19-inch depth adjustable frames
-
Rack Capacity: 2 × 37U (double bay)
-
Dimensions (H × W × D): 2070 × 1300 × 700 mm
-
Weight: ~520 kg (cabinet only)
-
Material: 1.4003 Stainless Steel
-
Finish: Polyester powder coated
-
Colour: Telegrey (RAL 7045)
Security & Compliance:
-
IP Rating: IP54 (EN 60529)
-
Security Rating: LPS1175 Issue 8 Level 2
-
Rail Compliance: NR/L2/SIG/19820/K02
-
Quality Standard: ISO 9001:2015
Additional Features:
-
Free-standing internal frame allows panel replacement without disrupting equipment
-
Removable gland plates for future upgrades and expansion
-
Door-mounted A3 document holder and hinged laptop shelf
-
M16 lifting brackets for safe handling and installation
-
Integrated earthing system with bonded panels
-
Peaked removable roof for enhanced weather protection
-
Maintainable filter media for airflow and cooling efficiency
Applications:
-
Rail and trackside telecom infrastructure
-
High-density network equipment installations
-
Fibre and power distribution points
-
Utility and roadside communications cabinets
-
Industrial outdoor equipment protection
