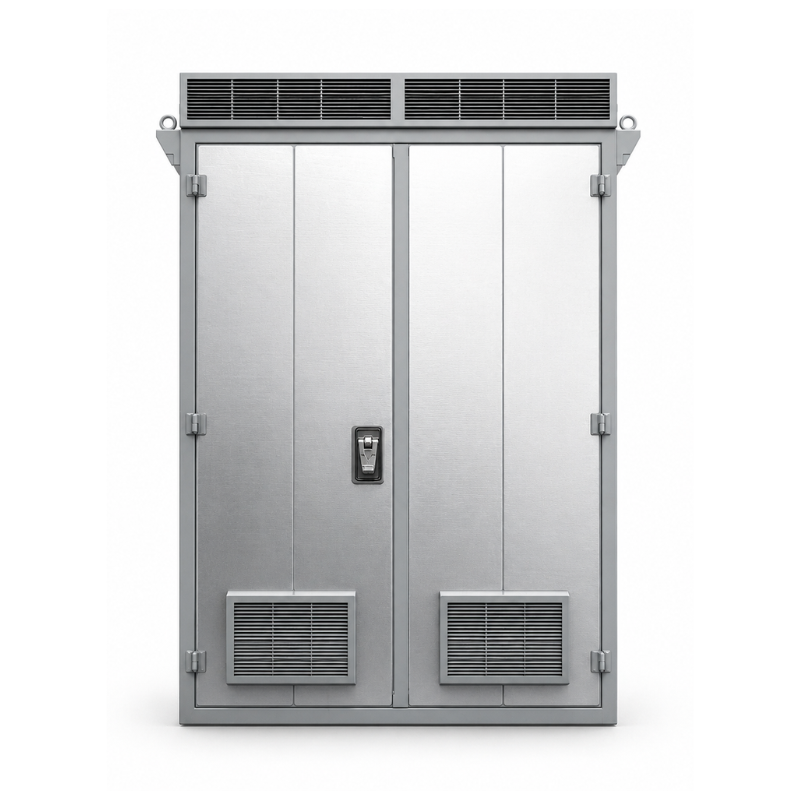

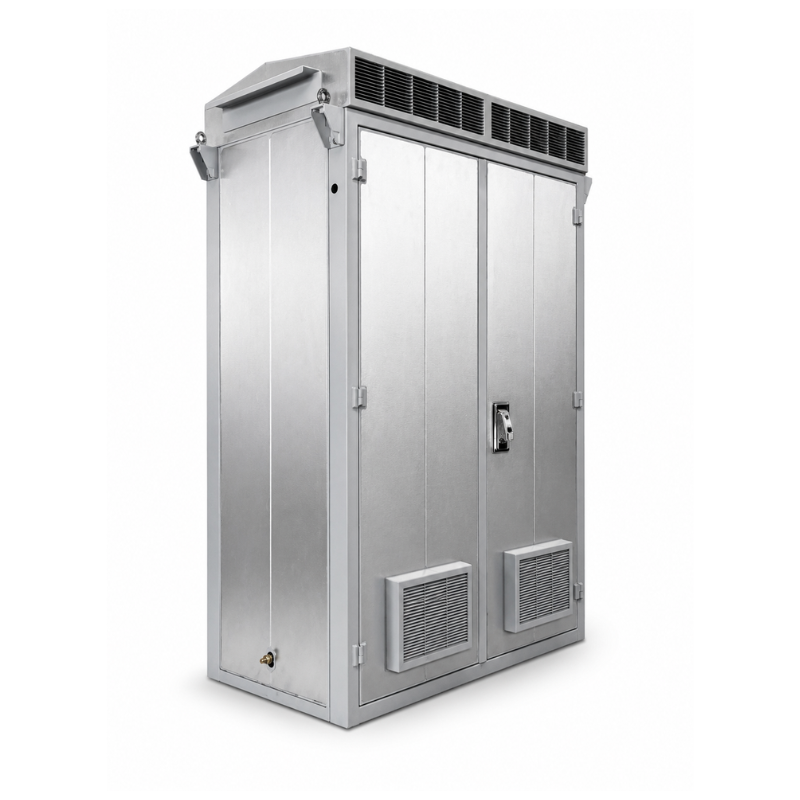

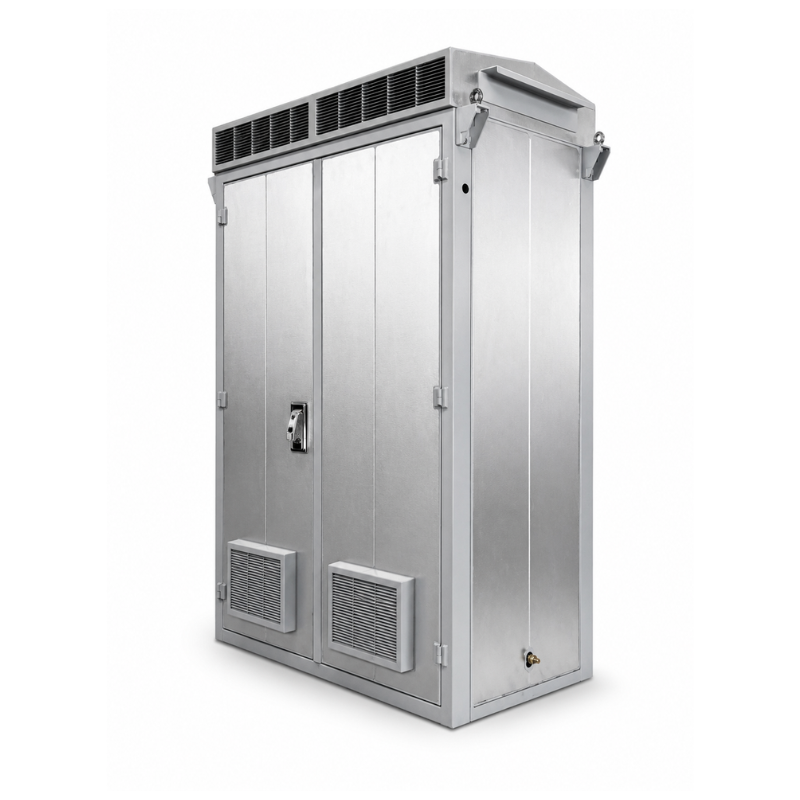

Rainford TrackSafe Double Bay Cabinet (2 × 19” Frame)
The Rainford TrackSafe Double Bay Cabinet (2 × 19” Frame) is a high-capacity, high-security outdoor enclosure engineered to protect critical telecom and rail infrastructure in demanding environments.
Part of the TrackSafe™ cabinet range, this double bay configuration is designed with dual 19-inch mounting frames (2 × 37U), providing maximum flexibility for housing a wide range of active and passive equipment across modern and legacy network deployments.
Constructed from 1.4003 stainless steel with a polyester powder-coated finish, the cabinet delivers exceptional durability against harsh weather conditions, corrosion and mechanical impact. Its dual-skin insulated design combined with a natural convection cooling system ensures efficient heat dissipation (up to ~500W), eliminating the need for active cooling and reducing ongoing maintenance.
With IP54-rated environmental protection and LPS1175 Issue 8 Level 2 security certification, the enclosure offers reliable protection against dust, water ingress and opportunistic tampering. Designed for longevity, it provides a 35+ year service life, making it ideal for long-term infrastructure deployment.
Key Features:
-
Double bay cabinet with 2 × 19” mounting frames
-
High-capacity dual 37U configuration
-
IP54-rated enclosure for outdoor protection
-
LPS1175 Issue 8 Level 2 security rating
-
Natural convection cooling system (no moving parts)
-
Heat dissipation up to ~500W (ΔT ~6–8°C)
-
1.4003 stainless steel construction for durability
-
Dual-skin insulated design for thermal efficiency
-
Front and rear access doors for installation and maintenance
-
3-point locking system with padlock compatibility
-
Modular removable gland plates for flexible cable entry
-
Designed for 35+ year lifespan
Technical Specifications:
-
Product Type: External equipment cabinet
-
Mounting Format: 2 × 19-inch depth adjustable frames
-
Rack Capacity: 2 × 37U (double bay)
-
Dimensions (H × W × D): 2070 × 1300 × 700 mm
-
Weight: ~520 kg
-
Material: 1.4003 Stainless Steel
-
Finish: Polyester powder coated
-
Colour: Telegrey (RAL 7045)
Security & Compliance:
-
IP Rating: IP54 (EN 60529)
-
Security Rating: LPS1175 Issue 8 Level 2
-
Rail Compliance: NR/L2/SIG/19820/K02
-
Quality Standard: ISO 9001:2015
Additional Features:
-
Free-standing internal frame for maintenance without disruption
-
Removable gland plates for future upgrades and expansion
-
Door-mounted A3 document holder and hinged laptop shelf
-
M16 lifting brackets for safe handling
-
Integrated earthing system with bonded panels
-
Peaked removable roof for enhanced weather protection
-
Maintainable filter media for airflow management
Applications:
-
Rail and trackside telecom infrastructure
-
High-capacity network equipment enclosures
-
Fibre and power distribution points
-
Utility and roadside communications cabinets
-
Industrial outdoor equipment protection
