Rainford TrackSafe Double Bay Cabinet (1 x 19” & 1 x BRS SM868 Frames with Plinth Kit)

Rainford TrackSafe Double Bay Cabinet (1 × 19” & 1 × BRS SM868 Frame with Plinth Kit)

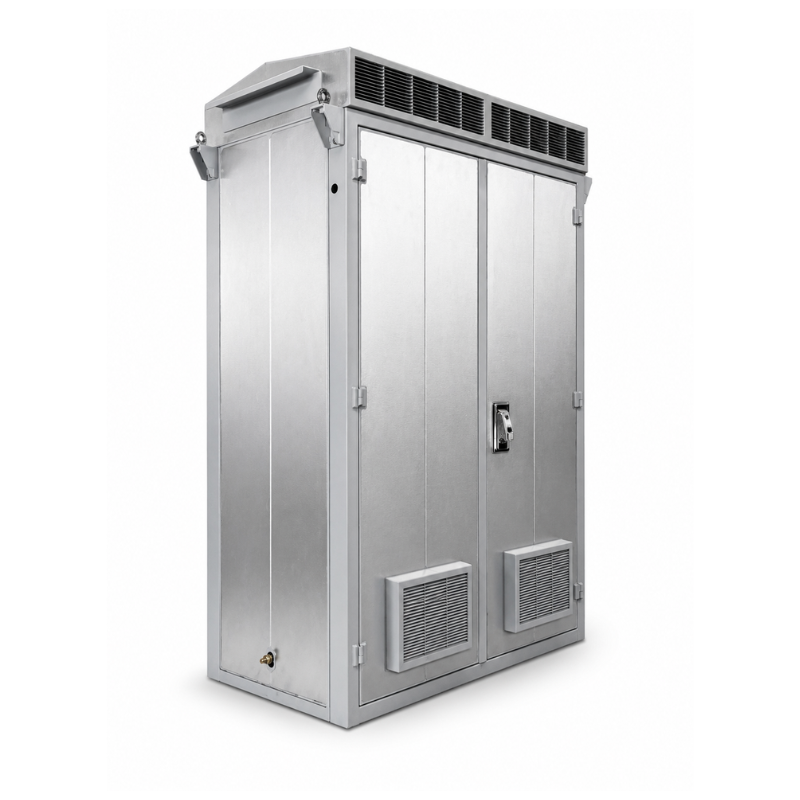

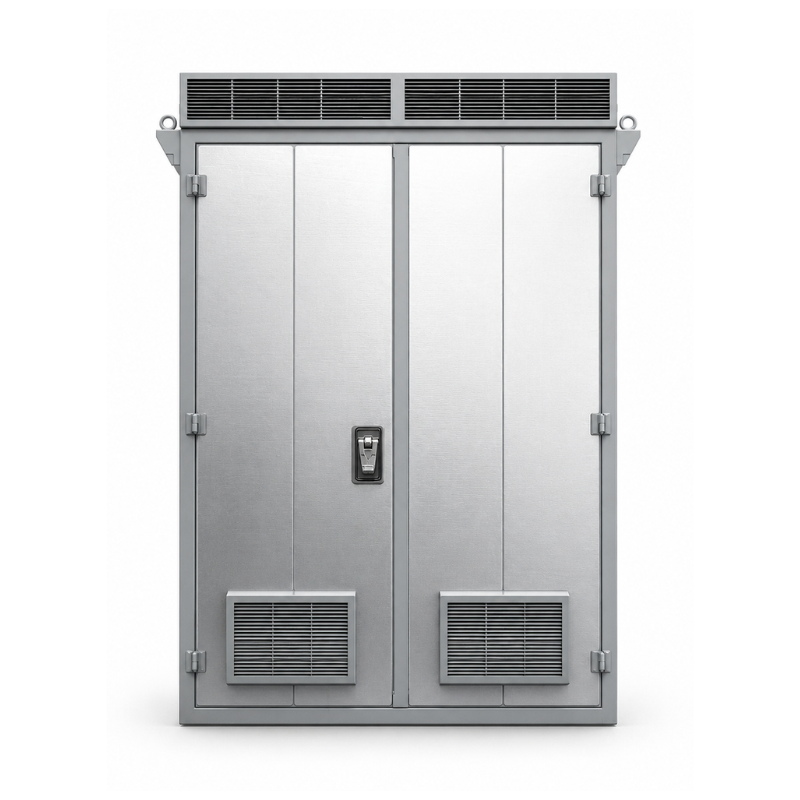

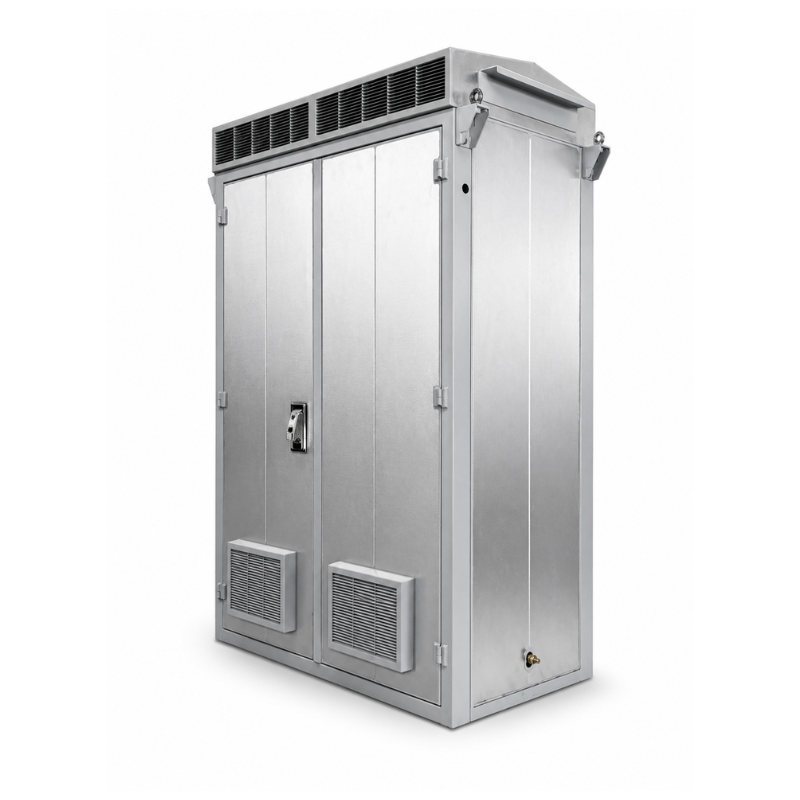

The Rainford TrackSafe Double Bay Cabinet (1 × 19” & 1 × BRS SM868 Frame with Plinth Kit) is a hybrid, high-capacity outdoor enclosure designed to protect and integrate both standard telecom and rail-specific equipment within a single secure cabinet. Part of the TrackSafe™ cabinet range, this configuration combines one 19-inch adjustable frame and one BRS SM868 mounting frame, making it ideal for mixed infrastructure deployments where both rack-mounted telecom equipment and rail-standard signalling systems need to be housed together.

Supplied with a plinth kit, the cabinet is engineered for installation on GRP platforms or concrete bases, providing a stable and secure foundation for trackside environments.

Designed for durability and long-term performance, the enclosure is constructed from 1.4003 stainless steel with a polyester powder-coated finish, ensuring resistance to corrosion, harsh weather and mechanical stress. Its dual-skin insulated design and natural convection cooling system deliver efficient passive thermal management, dissipating up to ~500W of heat without active components, reducing maintenance and improving system reliability.

As a TrackSafe solution, the cabinet is built to withstand harsh rail environments including vibration, weather exposure and operational stress, while maintaining optimal internal conditions for sensitive equipment.

Key Features:

• Hybrid double bay configuration (1 × 19” + 1 × BRS SM868 frame)

• Supplied with plinth kit for secure installation

• Ideal for mixed telecom and rail equipment deployments

• IP54-rated enclosure for outdoor protection

• LPS1175 Issue 8 Level 2 security rating

• Natural convection cooling system (no moving parts)

• Heat dissipation up to ~500W (ΔT ~6–8°C)

• 1.4003 stainless steel construction for durability

• Dual-skin insulated design for improved thermal performance

• Front and rear access doors for installation and maintenance

• 3-point locking system with padlock compatibility

• Modular removable gland plates for flexible cable entry

• Designed for 35+ year service life

Technical Specifications:

• Product Type: External equipment cabinet (with plinth)

• Mounting Format:

  • 1 × 19-inch adjustable frame

  • 1 × BRS SM868 frame (rail standard)

• Rack Capacity: 37U equivalent per bay (configurable)

• Dimensions (H × W × D): 2070 × 1300 × 700 mm

• Weight: ~520 kg (cabinet only)

• Material: 1.4003 Stainless Steel

• Finish: Polyester powder coated

• Colour: Telegrey (RAL 7045)

Security & Compliance:

• IP Rating: IP54 (EN 60529)

• Security Rating: LPS1175 Issue 8 Level 2

• Rail Compliance: NR/L2/SIG/19820/K02

• Quality Standard: ISO 9001:2015

Additional Features:

• Free-standing internal frame enables panel replacement without disrupting equipment

• Removable gland plates for future expansion and upgrades

• Door-mounted A3 document holder and hinged laptop shelf

• M16 lifting brackets for safe installation

• Integrated earthing system with bonded panels

• Peaked removable roof for enhanced weather protection

• Maintainable filter media for airflow and thermal efficiency

Applications:

• Rail and trackside signalling infrastructure

• Hybrid telecom and rail equipment deployments

• Fibre and power distribution points

• Utility and roadside communications cabinets

• Secure housing for mixed-format equipment systems
