Rainford TrackSafe Double Bay Cabinet (2 × BRS SM868 Frame with Plinth Kit)

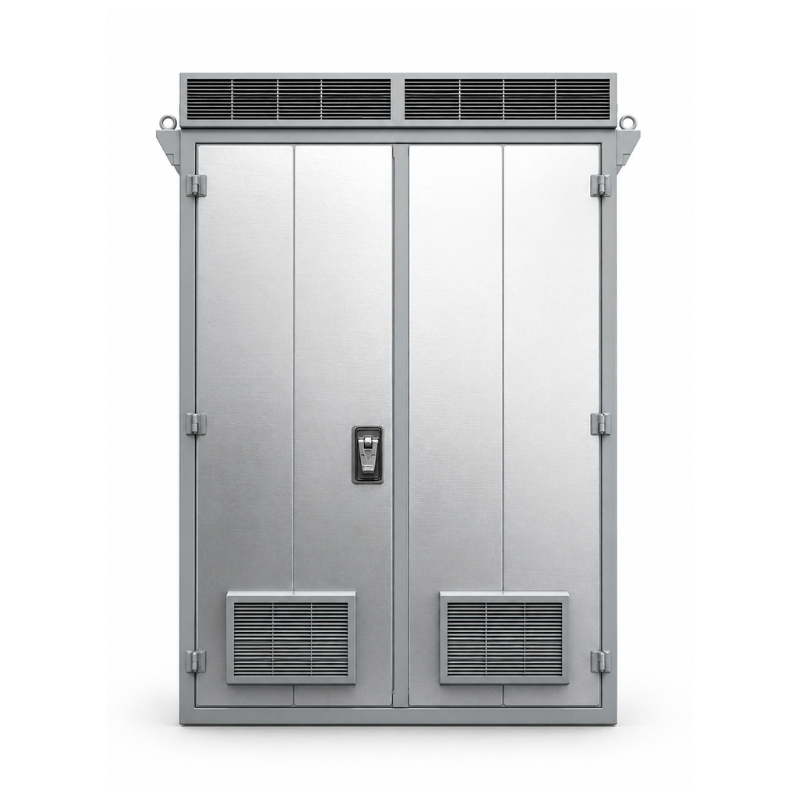

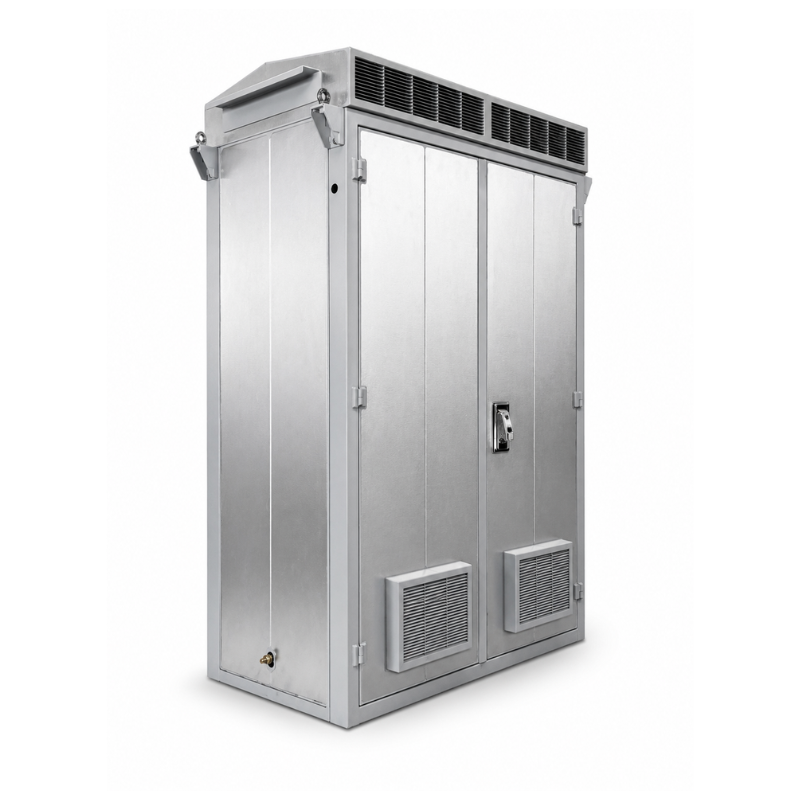

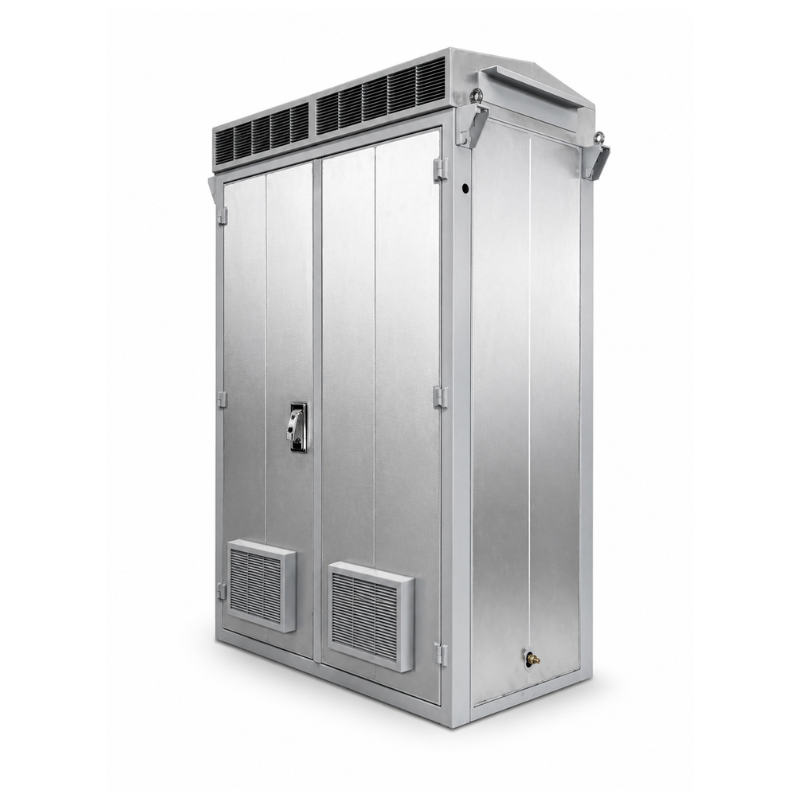

The Rainford TrackSafe Double Bay Cabinet (2 × BRS SM868 Frame with Plinth Kit) is a high-capacity, high-security outdoor enclosure engineered to protect critical telecom and rail infrastructure in demanding environments.

Part of the TrackSafe™ cabinet range, this configuration features dual BRS SM868 mounting frames, providing full compatibility with rail-standard equipment configurations where non-19” formats are required. Supplied with a plinth kit, the cabinet is designed for secure installation on GRP platforms or concrete bases, ensuring a stable and durable foundation.

As outlined in the datasheet (page 1), the cabinet delivers enhanced weather resistance, superior natural convection cooling and advanced security features, making it ideal for long-term deployment in trackside environments.

Constructed from 1.4003 stainless steel with a polyester powder-coated finish, the enclosure provides excellent resistance to corrosion, weather exposure and mechanical stress. Its dual-skin insulated construction and natural convection cooling system enable efficient thermal management, dissipating up to ~500W of heat without active components, reducing maintenance requirements and improving reliability.

Key Features:

• Double bay cabinet with 2 × BRS SM868 mounting frames

• Supplied with plinth kit for secure installation

• Designed for rail-standard equipment configurations

• High-capacity enclosure for signalling and telecom systems

• IP54-rated protection against dust and water ingress

• LPS1175 Issue 8 Level 2 security rating

• Natural convection cooling system (no moving parts)

• Heat dissipation up to ~500W (ΔT ~6–8°C)

• Dual-skin insulated design for enhanced thermal performance

• Front and rear access doors for installation and maintenance

• 3-point locking system with padlock compatibility

• Modular removable gland plates for flexible cable entry

• Designed for 35+ year lifespan

Technical Specifications:

• Product Type: External equipment cabinet (with plinth)

• Mounting Format: 2 × BRS SM868 frames (rail standard)

• Rack Capacity: 37U equivalent per bay (configurable)

• Dimensions (H × W × D): 2070 × 1300 × 700 mm

• Weight: ~520 kg (cabinet only)

• Material: 1.4003 Stainless Steel

• Finish: Polyester powder coated

• Colour: Telegrey (RAL 7045)

Security & Compliance:

• IP Rating: IP54 (EN 60529)

• Security Rating: LPS1175 Issue 8 Level 2

• Rail Compliance: NR/L2/SIG/19820/K02

• Quality Standard: ISO 9001:2015

Additional Features:

• Free-standing internal frame allows panel replacement without disrupting equipment

• Removable gland plates enable future upgrades and expansion

• Door-mounted A3 document holder and hinged laptop shelf

• M16 lifting brackets for safe installation

• Integrated earthing system with bonded panels

• Peaked removable roof for enhanced weather protection

• Maintainable filter media for airflow and cooling efficiency

Applications:

• Rail and trackside signalling infrastructure

• Telecom and fibre network enclosures

• High-capacity roadside and utility cabinets

• Control and monitoring systems

• Secure housing for BRS-standard equipment
