Rainford CommSafe® Single Bay RH End Pod Cabinet - Grey - 37U x 600D

Rainford CommSafe® Single Bay RH End Pod Cabinet – Grey – 37U × 600D

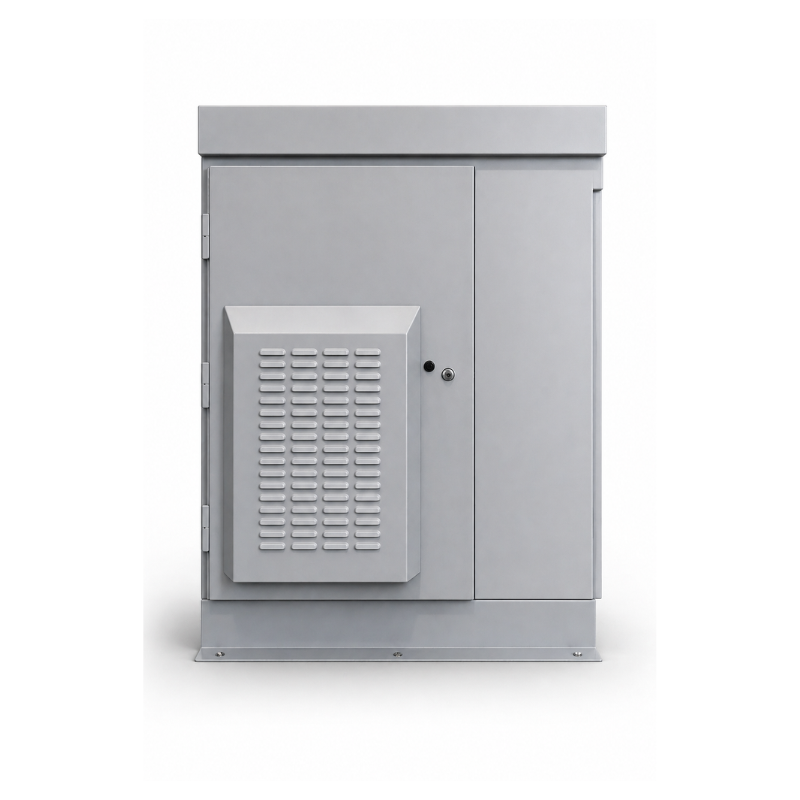

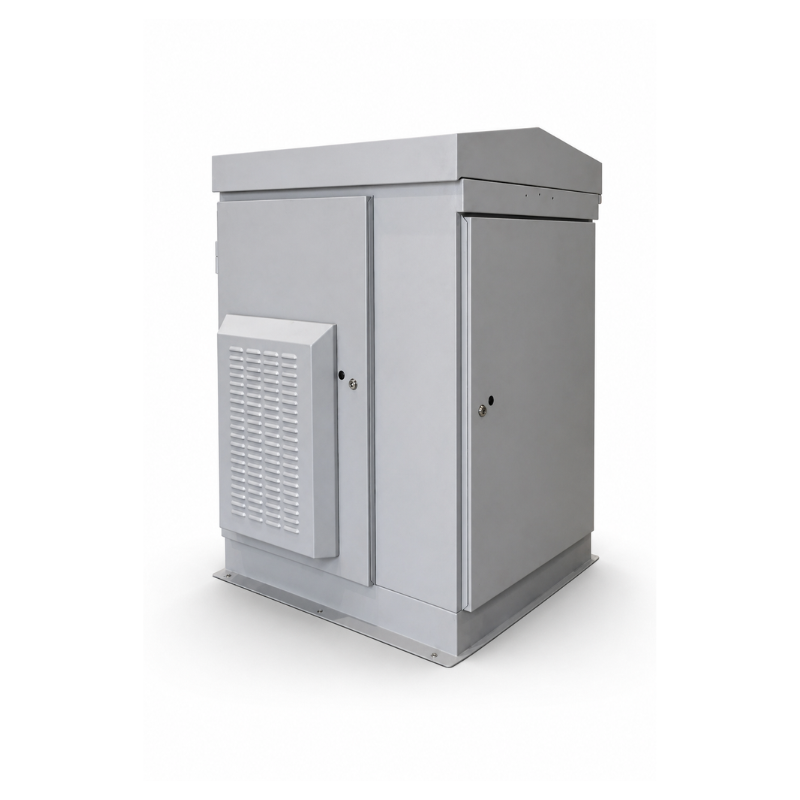

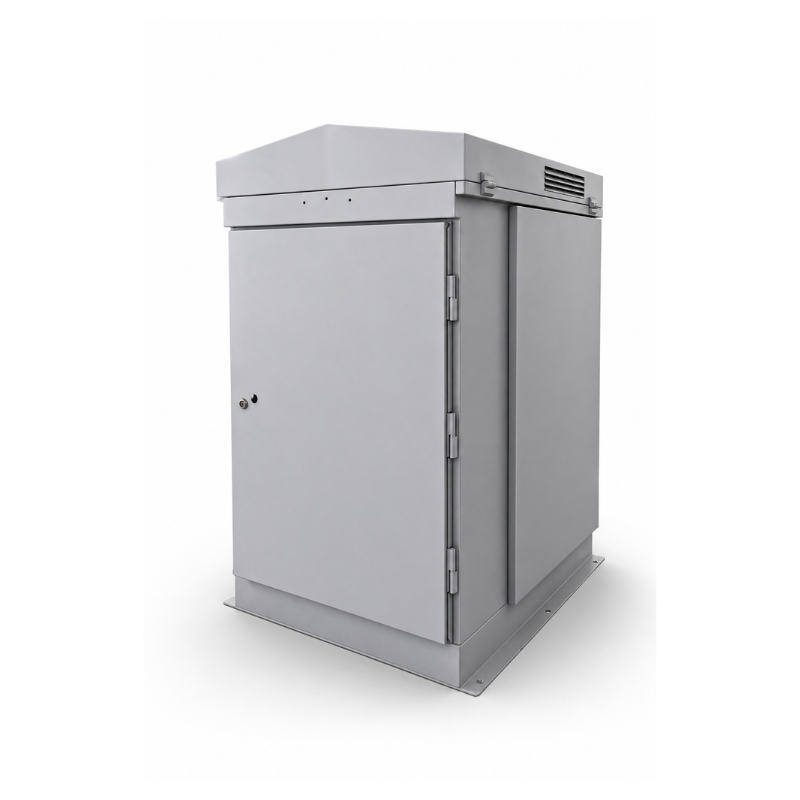

The Rainford CommSafe® Single Bay RH End Pod Cabinet – Grey – 37U × 600D is a high-capacity outdoor enclosure designed to house power distribution, battery systems and auxiliary equipment alongside primary telecom infrastructure.

Part of the CommSafe® cabinet range, this RH  end pod configuration integrates seamlessly with single bay cabinet systems, providing a dedicated, segregated compartment for support equipment. With a full-height 37U capacity and compact 600mm depth, it is ideal for installations requiring maximum vertical equipment space while maintaining a controlled footprint.

Engineered specifically for railway and critical infrastructure environments, the cabinet is built to ensure reliable long-term performance in harsh outdoor conditions, protecting equipment from dust, moisture and temperature fluctuations. Its IP55-rated enclosure provides strong ingress protection, supporting consistent operation of sensitive systems.

Constructed from 1.4003 stainless steel with a polyester powder-coated finish (RAL 7035 Light Grey), the cabinet offers excellent resistance to corrosion and environmental stress. The end pod design enables clear separation between power and active equipment, improving safety, organisation and ease of maintenance.

Key Features:

• RH  end pod cabinet configuration

• 37U capacity with 600mm depth (600D)

• Designed for power distribution, battery and auxiliary equipment

• IP55-rated enclosure (EN 60529) for outdoor protection

• Anti-vandal 3-point locking system

• Compatible with 221 Rail Cam lock

• 1.4003 stainless steel construction for durability

• RAL 7035 Light Grey finish

• Integrated gland plates for structured cable entry

• Removable lifting brackets for installation

Technical Specifications:

• Product Type: Outdoor RH end pod cabinet

• Configuration: Single bay with left-hand end pod

• Rack Capacity: 37U

• Depth: 600mm (600D)

• Material: 1.4003 Stainless Steel

• Finish: Polyester powder coated

• Colour: Light Grey (RAL 7035)

Security & Compliance:

• IP Rating: IP55 (EN 60529)

• Locking System: 3-point locking with rail cam compatibility

• Quality Standard: ISO 9001:2015

Additional Features:

• Dedicated compartment for power, battery and support systems

• Improved separation of active and power equipment

• Enhanced accessibility for maintenance and upgrades

• Base-mounted earth point for safety compliance

• Highly configurable, supporting:

  • Power distribution units (PDUs)

  • Battery systems

  • Cable trays

  • Monitoring systems

• Compatible with forced-air cooling and filtration options for thermal management

Applications:

• Railway and trackside infrastructure

• Power distribution and backup systems

• Telecom and fibre network installations

• CCTV and security systems

• Station communication systems
