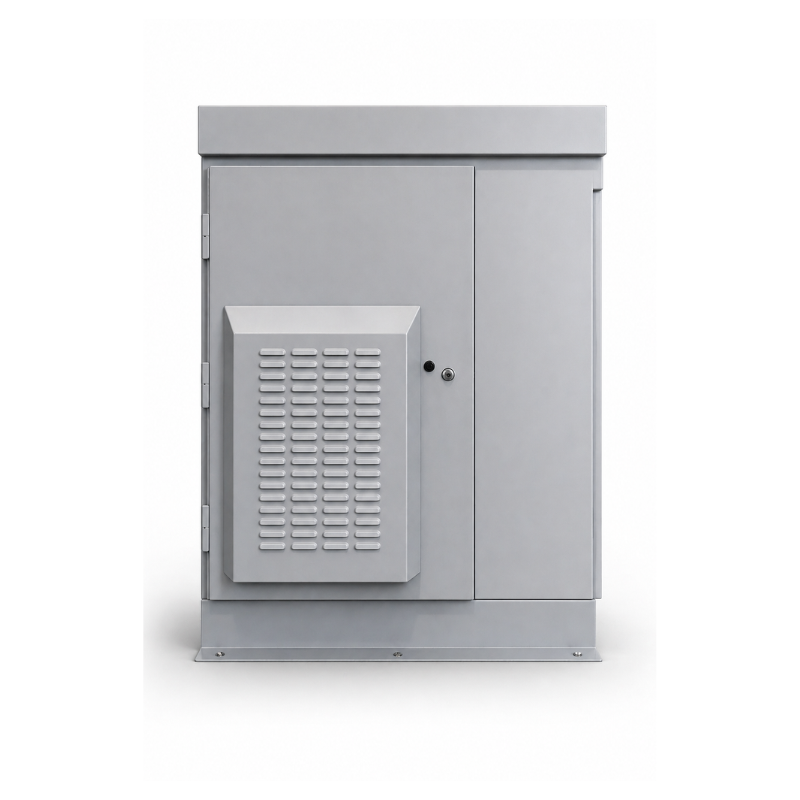

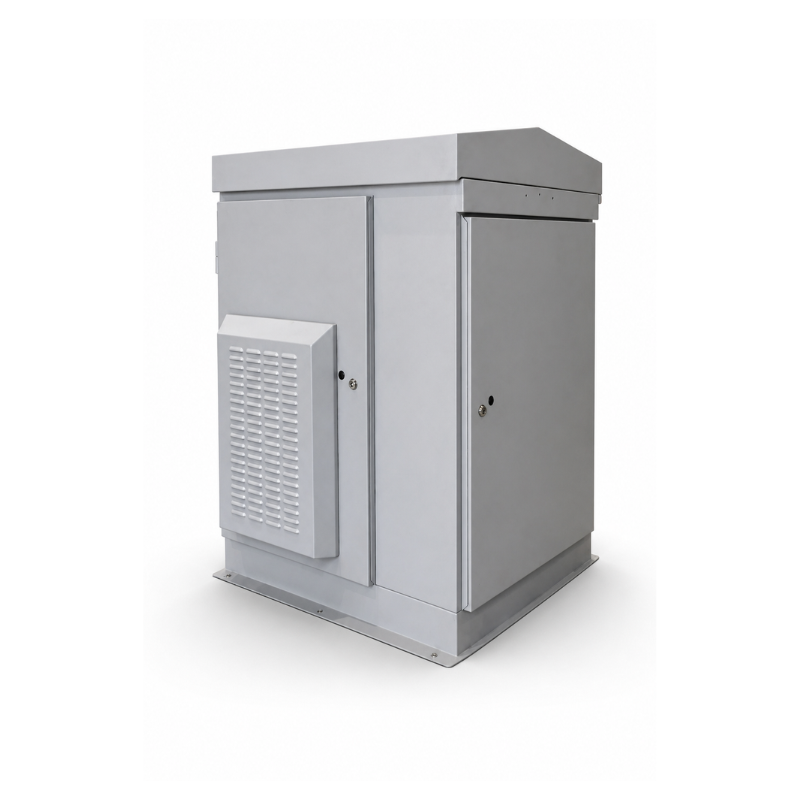

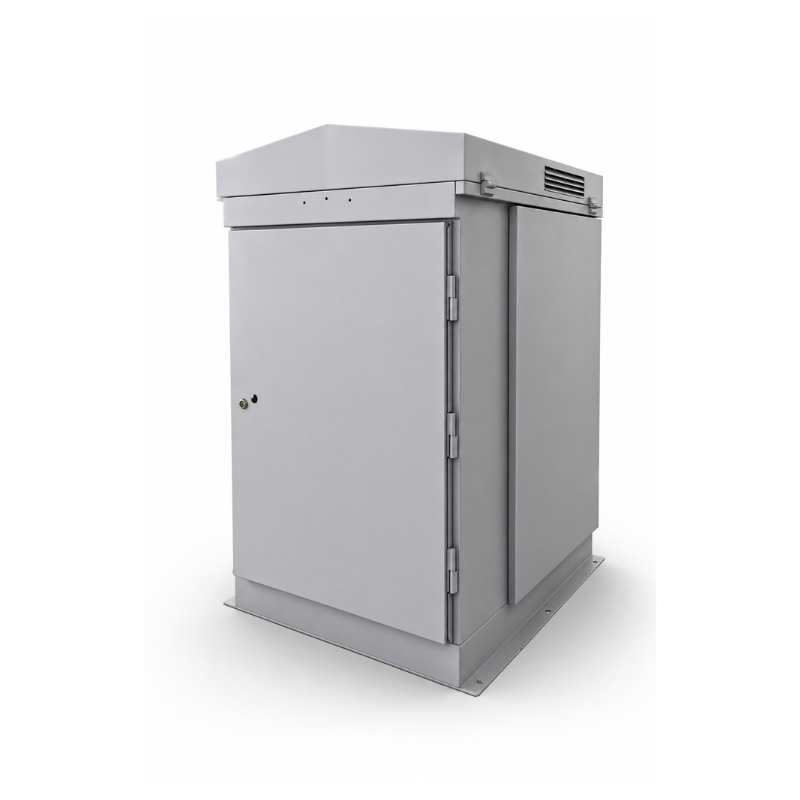

Rainford CommSafe® Single Bay RH End Pod Cabinet- Grey - 25U x 600D

Rainford CommSafe® Single Bay RH End Pod Cabinet – Grey – 25U × 600D

The Rainford CommSafe® Single Bay RHEnd Pod Cabinet – Grey – 25U × 600D is a specialist outdoor enclosure designed to support power distribution, battery systems and auxiliary equipment alongside primary telecom infrastructure. Part of the CommSafe® cabinet range, this RH end pod configuration integrates seamlessly with single bay cabinets, providing a dedicated and segregated compartment for support systems. The 25U capacity with 600mm depth offers an ideal balance of space and compact footprint, making it suitable for installations requiring efficient equipment organisation and easy maintenance access.

Engineered for railway and critical infrastructure environments, the cabinet delivers reliable performance in harsh outdoor conditions. Its IP55-rated enclosure protects against dust and water ingress, ensuring long-term durability and stable operation for sensitive equipment.

Constructed from 1.4003 stainless steel with a polyester powder-coated finish (RAL 7035 Light Grey), the cabinet provides excellent resistance to corrosion and mechanical stress. The end pod design enables safe separation of power and active systems, improving operational efficiency and system reliability.

Key Features:

• RH end pod cabinet for single bay systems

• 25U capacity with 600mm depth (600D)

• Designed for power distribution and auxiliary equipment housing

• IP55-rated enclosure (EN 60529) for outdoor protection

• Anti-vandal security with 3-point locking system

• Compatible with 221 Rail Cam lock

• 1.4003 stainless steel construction for durability

• RAL 7035 Light Grey finish

• Integrated gland plates for structured cable entry

• Removable lifting brackets for installation

Technical Specifications:

• Product Type: Outdoor end pod cabinet (LH configuration)

• Configuration: Single bay with left-hand end pod

• Rack Capacity: 25U

• Depth: 600mm (600D)

• Material: 1.4003 Stainless Steel

• Finish: Polyester powder coated

• Colour: Light Grey (RAL 7035)

Security & Compliance:

• IP Rating: IP55 (EN 60529)

• Locking System: 3-point locking with 221 cam lock compatibility

• Quality Standard: ISO 9001:2015

Additional Features:

• Dedicated compartment for power, battery and support systems

• Improved separation of active and power equipment

• Enhanced accessibility for maintenance and upgrades

• Base-mounted earth point for safety compliance

• Highly configurable, supporting:

  • Power distribution units (PDUs)

  • Battery systems

  • Cable trays

  • Monitoring equipment

Applications:

• Railway and trackside infrastructure

• Power distribution and backup systems

• Telecom and fibre network installations

• CCTV and security systems

• Station communication systems
