Rainford CommSafe® Single Bay LH End Pod Cabinet - Grey - 30U x 800D

Rainford CommSafe® Single Bay LH End Pod Cabinet – Grey – 30U × 800D

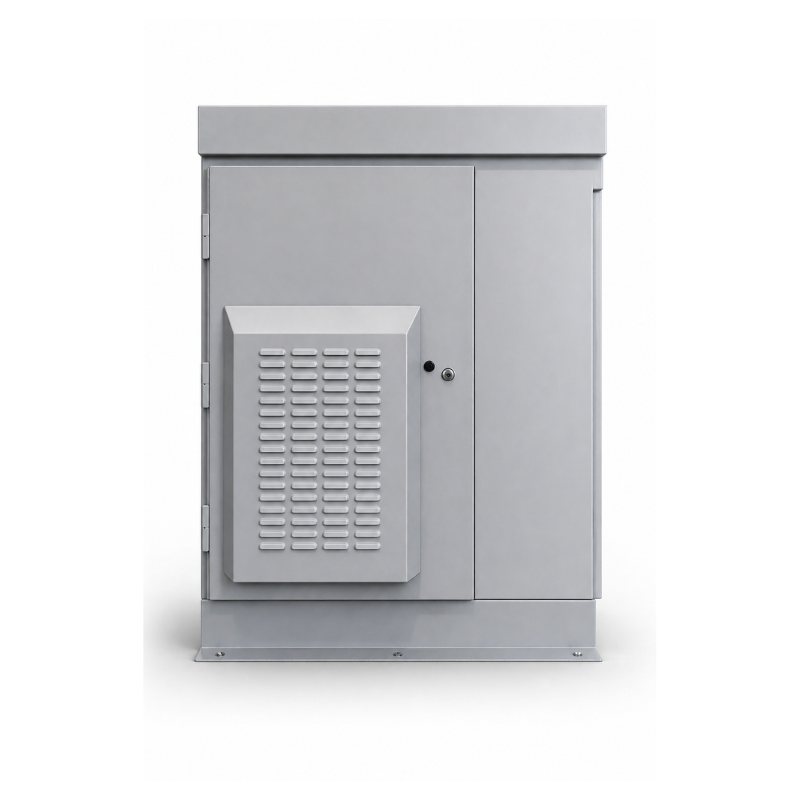

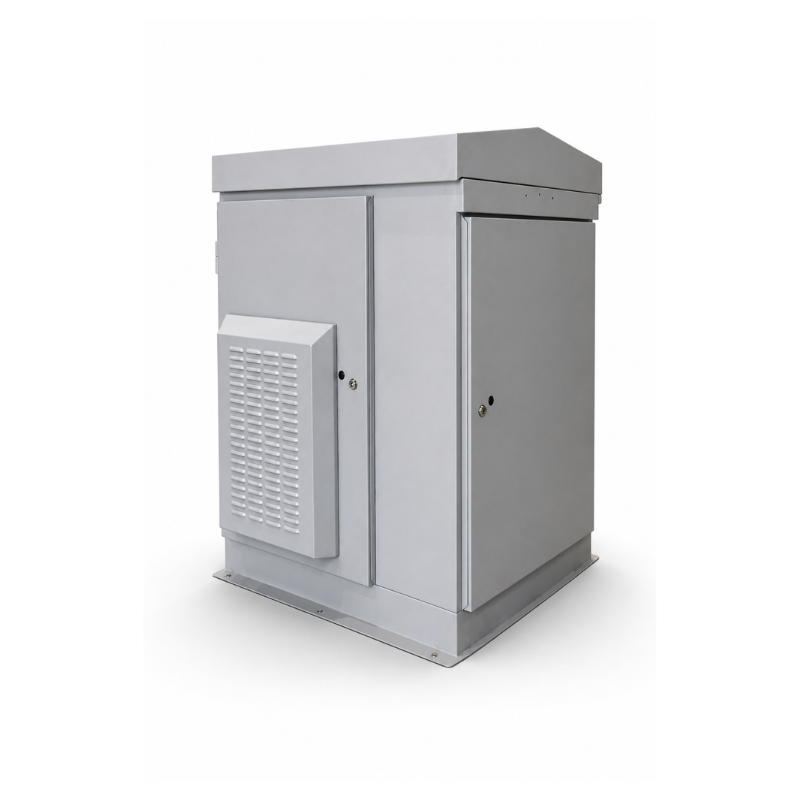

The Rainford CommSafe® Single Bay LH End Pod Cabinet – Grey – 30U × 800D is a specialist outdoor enclosure designed to house power distribution, battery systems and auxiliary equipment alongside primary telecom infrastructure.

Part of the CommSafe® cabinet range, this left-hand (LH) end pod configuration integrates with single bay cabinet systems to provide a dedicated, segregated compartment for support equipment. The 30U capacity combined with an extended 800mm depth offers increased internal space, making it ideal for installations requiring larger power systems, enhanced cable management and higher equipment density.

Engineered for railway and critical infrastructure environments, the cabinet delivers reliable performance in harsh outdoor conditions. Its IP55-rated enclosure provides strong protection against dust and water ingress, helping maintain stable internal conditions and ensuring long-term reliability for sensitive systems.

Constructed from 1.4003 stainless steel with a polyester powder-coated finish (RAL 7035 Light Grey), the cabinet offers excellent resistance to corrosion and environmental stress. The end pod design ensures clear separation between power and active equipment, improving system safety, organisation and ease of maintenance.

Key Features:

• Left-hand (LH) end pod cabinet configuration

• 30U capacity with extended 800mm depth (800D)

• Designed for power distribution, battery and auxiliary equipment

• IP55-rated enclosure (EN 60529) for outdoor protection

• Anti-vandal 3-point locking system

• Compatible with 221 Rail Cam lock and dual locking options

• 1.4003 stainless steel construction for durability

• RAL 7035 Light Grey finish

• Integrated gland plates for structured cable entry

• Removable lifting brackets for installation

Technical Specifications:

• Product Type: Outdoor LH end pod cabinet

• Configuration: Single bay with left-hand end pod

• Rack Capacity: 30U

• Depth: 800mm (800D)

• Mounting: 19-inch compatible (with integrated system)

• Material: 1.4003 Stainless Steel

• Finish: Polyester powder coated

• Colour: Light Grey (RAL 7035)

Security & Compliance:

• IP Rating: IP55 (EN 60529)

• Locking System: 3-point locking with rail-compatible cam lock options

• Quality Standard: ISO 9001:2015

Additional Features:

• Dedicated compartment for power, battery and support systems

• Improved separation of active and power equipment

• Enhanced internal space for complex installations

• Base-mounted earth stud for safety compliance

• Highly configurable, supporting:

  • Power distribution units (PDUs)

  • Battery systems

  • Cable trays

  • Monitoring and alarm systems

• Thermal management options available, including fan and filter systems for active cooling.

Applications:

• Railway and trackside infrastructure

• Power distribution and backup systems

• Telecom and fibre network installations

• CCTV and security systems

• Station communication systems
