Rainford CommSafe® Single Bay LH End Pod Cabinet- Grey - 20U x 600D

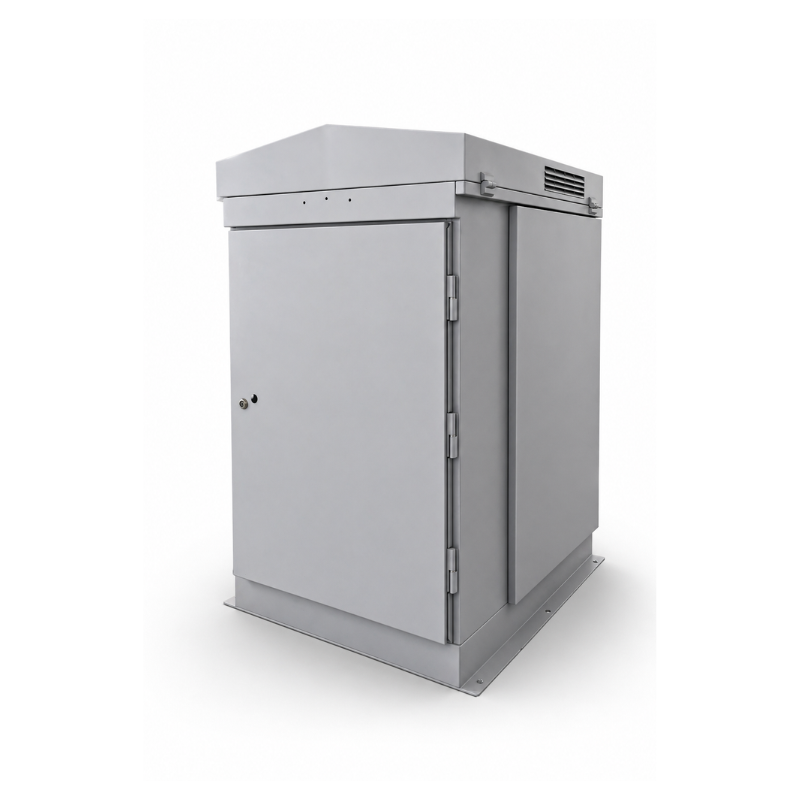

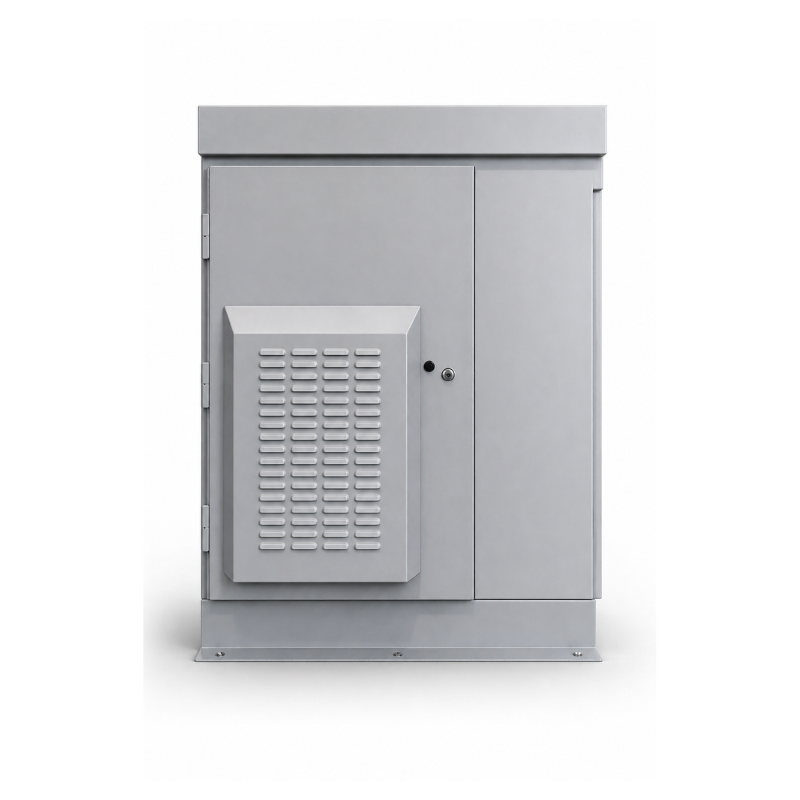

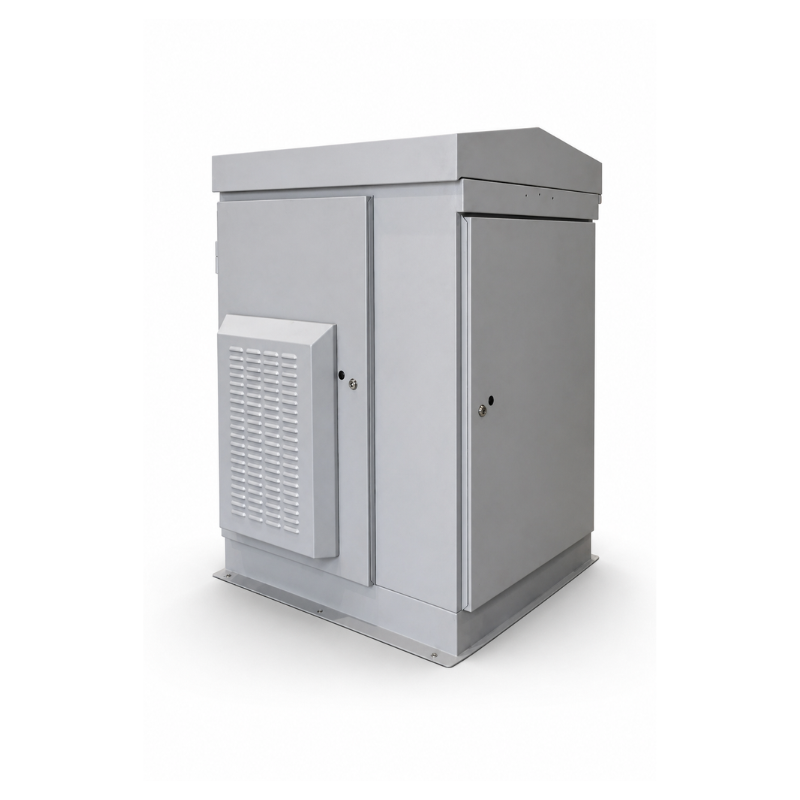

Rainford CommSafe® Single Bay LH End Pod – Grey – 20U × 600D

The Rainford CommSafe® Single Bay LH End Pod – Grey – 20U × 600D is a specialist outdoor enclosure designed to provide dedicated space for power distribution, battery systems and auxiliary equipment alongside primary telecom infrastructure.

Part of the CommSafe® cabinet range, this left-hand (LH) end pod configuration integrates seamlessly with single bay cabinets, offering a segregated compartment for power and support systems, improving organisation, safety and maintenance access in complex installations.

Engineered for railway and critical infrastructure environments, the cabinet ensures reliable performance in harsh outdoor conditions, protecting equipment from moisture, dust and temperature fluctuations. Its IP55-rated enclosure provides strong environmental protection, supporting long-term deployment in exposed locations.

Constructed from 1.4003 stainless steel with a polyester powder-coated finish (RAL 7035 Light Grey), the end pod delivers excellent resistance to corrosion and mechanical stress. It supports flexible equipment integration, making it ideal for housing power distribution units, batteries and cable management systems within a secure and accessible compartment.

Key Features:

• Left-hand (LH) end pod configuration for single bay cabinets

• 20U capacity with 600mm depth (600D)

• Designed for power distribution and auxiliary equipment housing

• IP55-rated enclosure (EN 60529) for outdoor protection

• 3-point locking system for anti-vandal security

• Compatible with rail-standard locking systems (e.g. 221 cam lock)

• 1.4003 stainless steel construction for durability

• RAL 7035 Light Grey finish

• Integrated gland plates for structured cable entry

• Removable lifting brackets for installation

Technical Specifications:

• Product Type: Outdoor end pod cabinet (LH configuration)

• Configuration: Single bay with left-hand end pod

• Rack Capacity: 20U

• Depth: 600mm (600D)

• Material: 1.4003 Stainless Steel

• Finish: Polyester powder coated

• Colour: Light Grey (RAL 7035)

Security & Compliance:

• IP Rating: IP55 (EN 60529)

• Locking System: 3-point locking with rail-compatible options

• Quality Standard: ISO 9001:2015

Additional Features:

• Dedicated compartment for power and battery systems

• Improved separation of active and power equipment

• Enhanced accessibility for maintenance and upgrades

• Base-mounted earth point for safety compliance

• Highly configurable, supporting:

  • Power distribution units (PDUs)

  • Battery shelves

  • Cable trays

  • Monitoring systems

Applications:

• Railway and trackside infrastructure

• Power distribution and backup systems

• Telecom and fibre network installations

• CCTV and security systems

• Station communication systems
