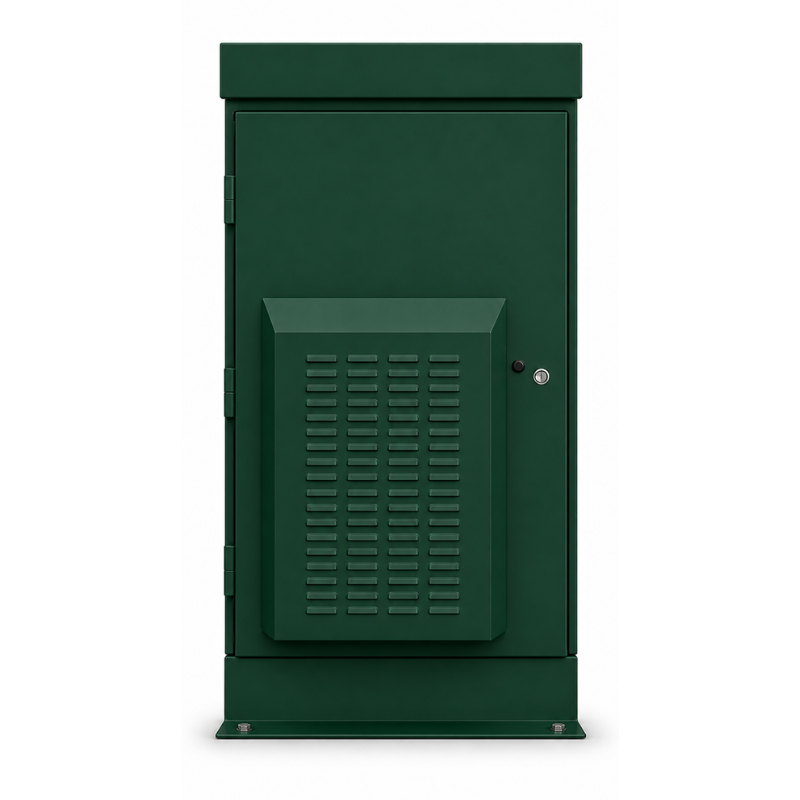

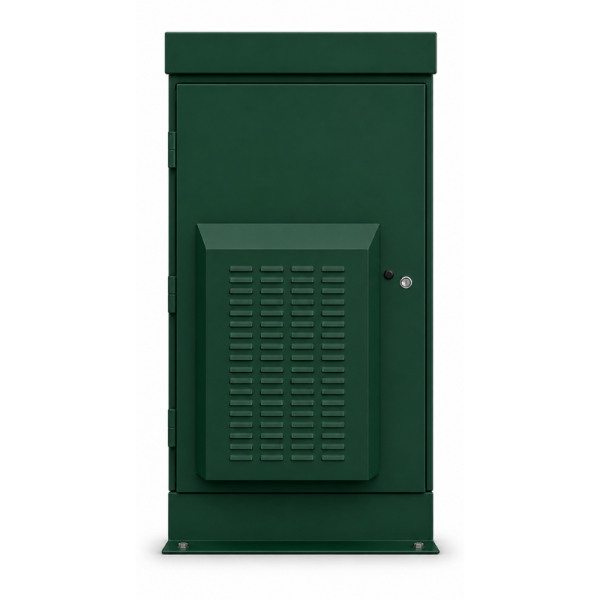

Rainford CommSafe® Single Bay Cabinet – Green – 30U × 800D

The Rainford CommSafe® Single Bay Cabinet – Green – 30U × 800D is a high-capacity outdoor enclosure engineered to protect active telecom, security and network systems in demanding railway and infrastructure environments.

Part of the CommSafe® cabinet range, this model combines a 30U rack capacity with an extended 800mm depth, providing increased internal space for high-density equipment, power systems and structured cable management. It is ideally suited for trackside, station and outdoor network deployments, where long-term reliability and accessibility are critical.

Designed for harsh environments, the cabinet ensures stable internal operating conditions despite temperature variation, moisture and airborne contaminants, supporting continuous performance of sensitive electronics. Its IP55-rated enclosure provides strong protection against dust and water ingress, making it suitable for exposed installations.

Constructed from 1.4003 stainless steel with a polyester powder-coated finish, the cabinet offers excellent resistance to corrosion and environmental stress. It features an advanced forced-air cooling system with filtration, capable of dissipating up to ~1.0kW of heat (ΔT 10°C), ensuring optimal thermal management for active equipment.

Key Features:

• Single bay cabinet – 30U capacity

• 800mm depth (800D) for increased equipment space

• Designed for railway and outdoor infrastructure environments

• IP55-rated enclosure (EN 60529) for dust and water protection

• Anti-vandal security with 3-point locking system

• Compatible with 221 Rail Cam lock

• Forced-air cooling system with integrated filtration

• Heat dissipation up to ~1.0kW (ΔT 10°C)

• 1.4003 stainless steel construction for durability

• RAL 7035 Light Grey finish

• Front door with removable rear panels for easy maintenance

• Depth-adjustable 19-inch mounting profiles

Technical Specifications:

• Product Type: Outdoor active equipment cabinet

• Configuration: Single bay

• Mounting Format: 19-inch rack (adjustable depth)

• Rack Capacity: 30U

• Depth: 800mm (800D)

• Dimensions (H × W × D): 1753 × 675 × 810 mm (range reference)

• Weight: ~125 kg

• Material: 1.4003 Stainless Steel

• Finish: Polyester powder coated

• Colour: Green

Security & Compliance:

• IP Rating: IP55 (EN 60529)

• Locking System: 3-point locking with 221 cam lock compatibility

• Quality Standard: ISO 9001:2015

Additional Features:

• Robust anti-vandal design for trackside security

• Full-height removable rear panels for maintenance access

• Peaked hinged roof for weather protection

• Captive door stays for safe operation

• Removable lifting brackets for installation

• Base-mounted earth point for safety compliance

• Cable entry gland plates for structured routing

• Highly configurable with options including:

  • Lighting

  • Heaters

  • Cable trays

  • PDUs

Applications:

• Railway and trackside communication systems

• CCTV and security infrastructure

• Station information and control systems

• Telecom and fibre network equipment

• Outdoor active equipment protection
