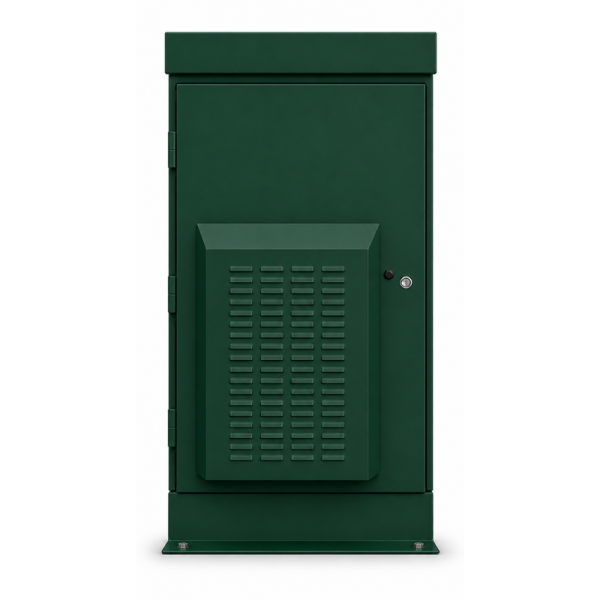

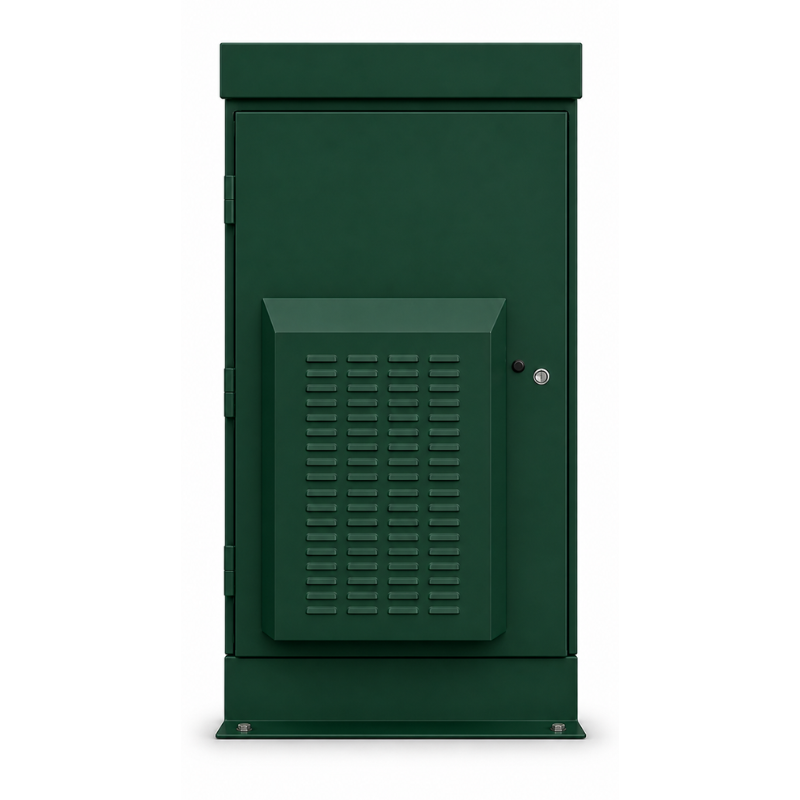

Rainford CommSafe® Cabinet Single Bay – Green – 20U × 800D
The Rainford CommSafe® Cabinet Single Bay – Green – 20U × 800D is a robust outdoor enclosure designed to protect active telecom and network equipment in demanding environments.
Part of the CommSafe® outdoor cabinet range, this model offers enhanced internal depth (800D), providing additional space for active equipment, power systems and cable management, making it ideal for more complex installations.
Manufactured from 1.4003 stainless steel with a polyester powder-coated finish, the cabinet delivers excellent resistance to corrosion, moisture and environmental exposure. It is specifically engineered to maintain stable internal operating conditions, ensuring reliable performance of sensitive electronics in outdoor and rail environments.
Equipped with an advanced forced-air cooling system with integrated filtration, the cabinet supports efficient thermal management, dissipating up to ~1.0kW of heat, making it suitable for high-performance active equipment deployments.
Key Features:
-
Single bay cabinet – 20U usable capacity
-
800mm depth (800D) for increased equipment space
-
19-inch mounting format for standard rack equipment
-
IP55-rated enclosure for enhanced environmental protection
-
Forced-air cooling system with fan and filter
-
Heat dissipation up to ~1.0kW (ΔT ~10°C)
-
1.4003 stainless steel construction for durability
-
RAL 7035 Light Grey finish for professional installations
-
3-point locking system with cam lock for security
-
Front door with removable rear panels for full access
-
Depth-adjustable mounting profiles
-
Integrated 100mm plinth for installation
Technical Specifications:
-
Product Type: Outdoor active equipment cabinet
-
Configuration: Single bay
-
Mounting Format: 19-inch rack
-
Rack Capacity: Up to 30U (model dependent)
-
Depth: 800mm (800D)
-
Dimensions (H × W × D): 1753 × 675 × 810 mm (reference model)
-
Weight: ~125 kg
-
Material: 1.4003 Stainless Steel
-
Finish: Polyester powder coated
-
Colour: Green
Security & Compliance:
Additional Features:
-
T-bar cylinder lock with 3-point locking system
-
Full-height removable rear panels for maintenance access
-
Peaked hinged roof for weather protection
-
Captive door stays for secure operation
-
Removable lifting brackets for installation
-
Base-mounted earth point for safety compliance
-
Plain cable entry gland plates in base
-
Long-life EN1822 hydrophobic ePTFE filter
-
Designed for all-weather resilience and thermal stability
Applications:
-
Rail and station communication systems
-
CCTV and security equipment enclosures
-
Active telecom and fibre network installations
-
Data and connectivity infrastructure
-
Outdoor protection for powered equipment
