Rainford CommSafe® Single Bay Cabinet - Grey - 25U x 600D

Rainford CommSafe® Cabinet Single Bay – Grey – 25U × 600D

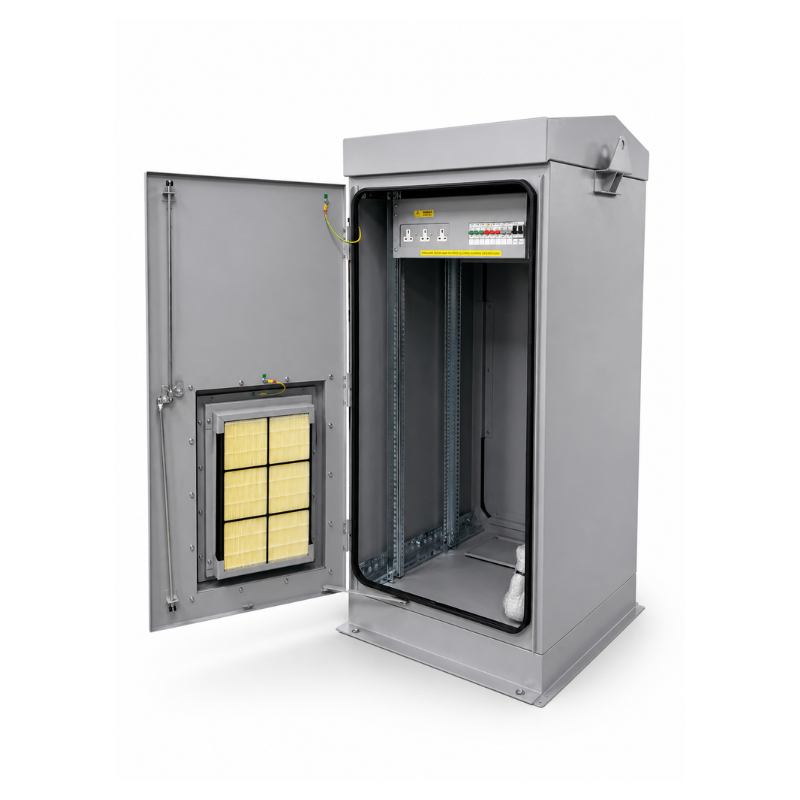

The Rainford CommSafe® Cabinet Single Bay – Grey – 25U × 600D is a robust outdoor enclosure designed to protect active telecom, security and network equipment in demanding environments.

Part of the CommSafe® cabinet range, this model offers a 25U configuration with 600mm depth, delivering an ideal balance between capacity and footprint for installations requiring reliable housing of active equipment. Designed for use across rail, telecom and infrastructure applications, it ensures stable performance in exposed outdoor conditions.

Constructed from 1.4003 stainless steel with a polyester powder-coated finish (RAL 7035 Light Grey), the cabinet provides excellent resistance to corrosion, moisture and environmental exposure. Its IP55-rated enclosure ensures strong protection against dust and water ingress, supporting long-term operational reliability.

Engineered for active systems, the cabinet incorporates a forced-air cooling system, capable of dissipating up to ~1.0kW of heat (ΔT 10°C), maintaining optimal internal temperatures and protecting sensitive equipment.

Key Features:

• Single bay cabinet – 25U capacity

• 600mm depth (600D) for compact installations

• 19-inch mounting format (depth adjustable)

• IP55-rated enclosure (EN 60529) for enhanced environmental protection

• Anti-vandal security with 3-point locking system

• Compatible with 221 Rail Cam lock

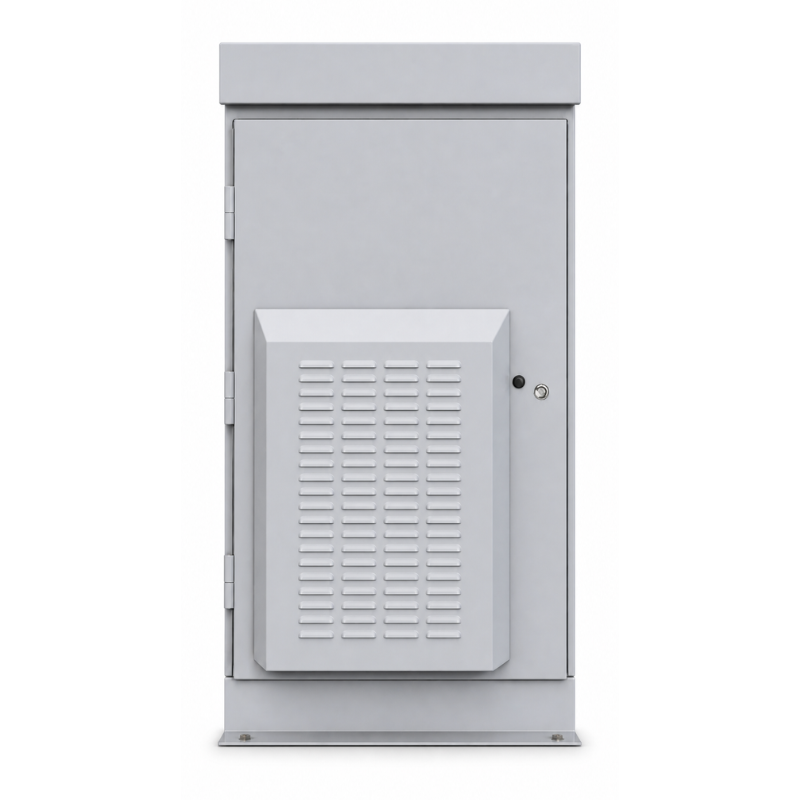

• Forced-air cooling system – dissipates up to ~1.0kW (ΔT 10°C)

• 1.4003 stainless steel construction for durability

• RAL 7035 Light Grey finish for professional installations

• Front door with removable rear panels for full access

• Base cable entry gland plates for flexible routing

Technical Specifications:

• Product Type: Outdoor active equipment cabinet

• Configuration: Single bay

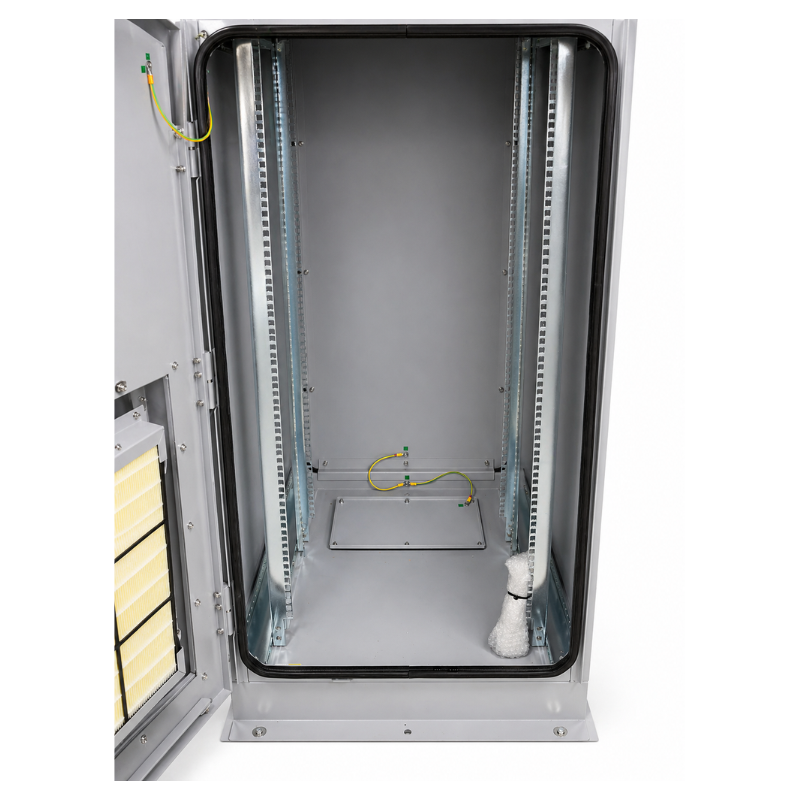

• Mounting Format: 19-inch rack (adjustable depth)

• Rack Capacity: 25U

• Depth: 600mm (600D)

• Dimensions (H × W × D): 1753 × 675 × 810 mm

• Weight: ~125 kg

• Material: 1.4003 Stainless Steel

• Finish: Polyester powder coated

• Colour: Light Grey (RAL 7035)

Security & Compliance:

• IP Rating: IP55 (EN 60529)

• Locking System: 3-point locking with 221 cam lock compatibility

• Quality Standard: ISO 9001:2015

Additional Features:

• Highly configurable design with options including:

  • Internal lighting

  • Heaters

  • Cable trays

  • PDUs (Power Distribution Units)

• Wide range of cabinet sizes available within the CommSafe® range

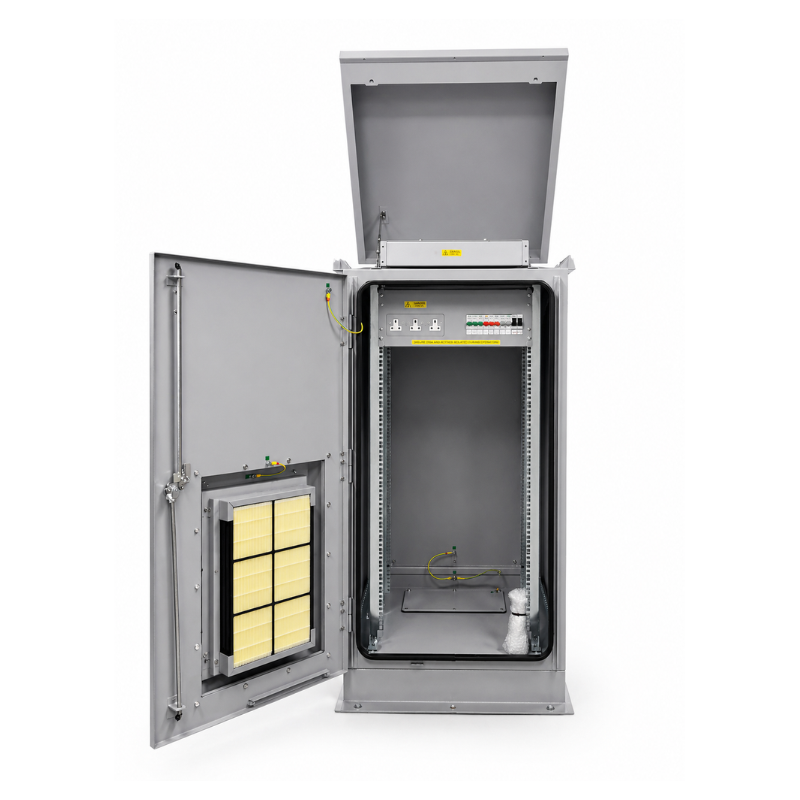

• Peaked hinged roof for improved weather resistance

• Captive door stays for safe operation

• Removable lifting brackets for installation

• Base-mounted earth point for safety compliance

• Long-life filtration system for airflow protection

Applications:

• Rail and station communication systems

• CCTV and security equipment enclosures

• Telecom and fibre network installations

• Power and control system housing

• Outdoor active equipment protection
