Rainford CommSafe® Single Bay Cabinet - Grey - 20U x 600D

Rainford CommSafe® Cabinet Single Bay 20U × 600D

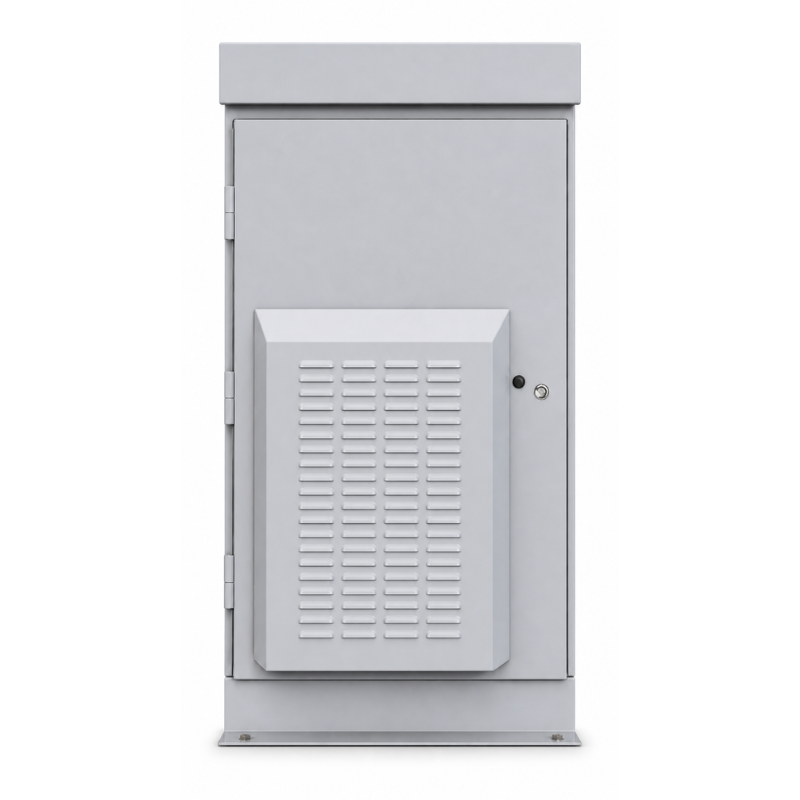

The Rainford CommSafe® Cabinet Single Bay 20U × 600D is a compact, high-performance outdoor enclosure designed to protect active telecom and network equipment in demanding environments.

Part of the CommSafe® outdoor cabinet range, this solution is engineered to deliver reliable performance, environmental protection and efficient thermal management for critical infrastructure such as station communications, security systems and network connectivity.

Constructed from 1.4003 stainless steel with a durable polyester powder-coated finish, the cabinet provides excellent resistance to corrosion, moisture and airborne contaminants. Its design ensures stable internal conditions, helping to protect sensitive electronics and maintain consistent operation.

Unlike passive enclosures, the CommSafe® cabinet features an advanced forced-air cooling system with integrated filtration, enabling efficient heat dissipation of up to ~1.0kW, making it ideal for active equipment installations requiring enhanced thermal control.

Key Features:

• Single bay cabinet – 20U usable space (600D format)

• 19-inch mounting format for standard equipment compatibility

• IP55-rated enclosure for enhanced environmental protection

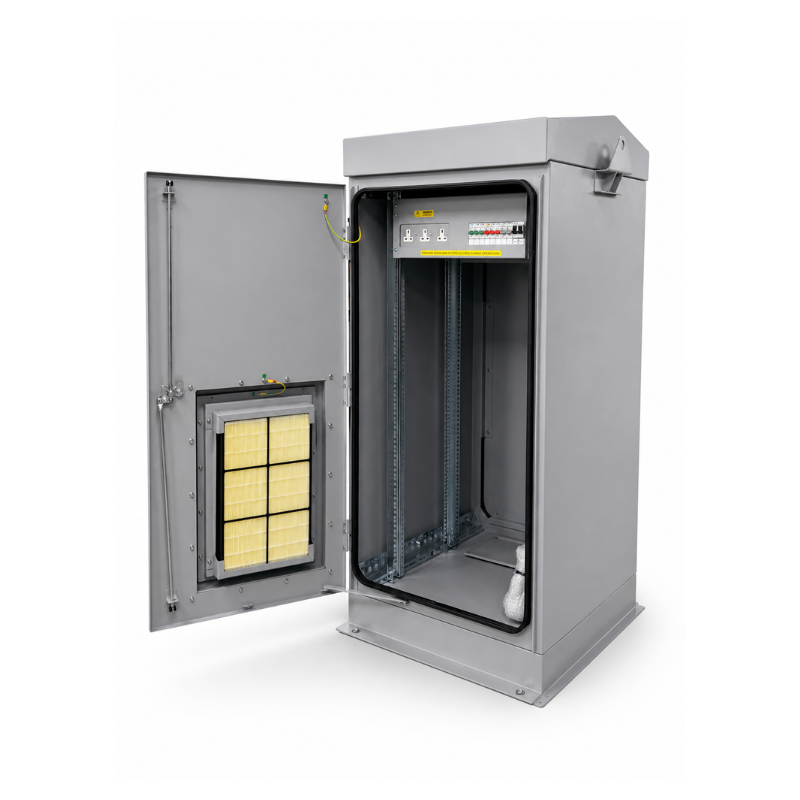

• Advanced forced-air cooling system with fan and filter

• Heat dissipation up to ~1.0kW (ΔT ~10°C)

• 1.4003 stainless steel construction for durability

• 3-point locking system plus cam lock for security

• Front door with removable rear panels for full access

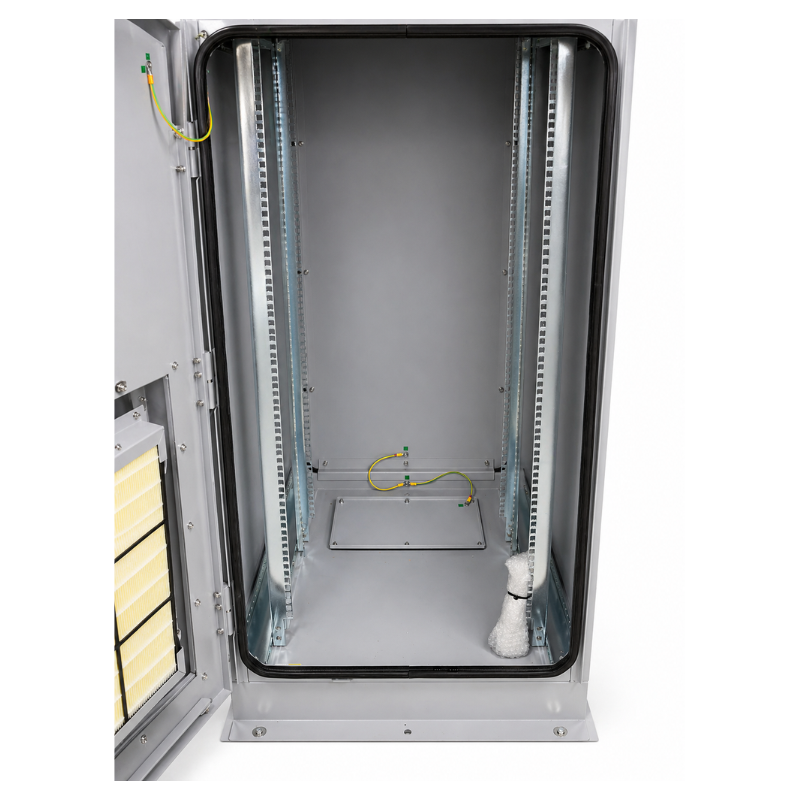

• Depth-adjustable mounting profiles

• Integrated 100mm plinth for installation

• Hydrophobic ePTFE filter (EN1822) for long-life performance

Technical Specifications:

• Product Type: Outdoor active equipment cabinet

• Configuration: Single bay

• Mounting Format: 19-inch rack

• Rack Capacity: Up to 30U (model dependent)

• Depth: 600mm class (600D)

• Dimensions (H × W × D): 1753 × 675 × 810 mm

• Weight: ~125 kg

• Material: 1.4003 Stainless Steel

• Finish: Polyester powder coated

• Colour: Light Grey (RAL 7035)

Security & Compliance:

• IP Rating: IP55 (EN 60529)

• Quality Standard: ISO 9001:2015

Additional Features:

• T-bar cylinder lock with 3-point locking system

• Full-height removable rear panels for maintenance access

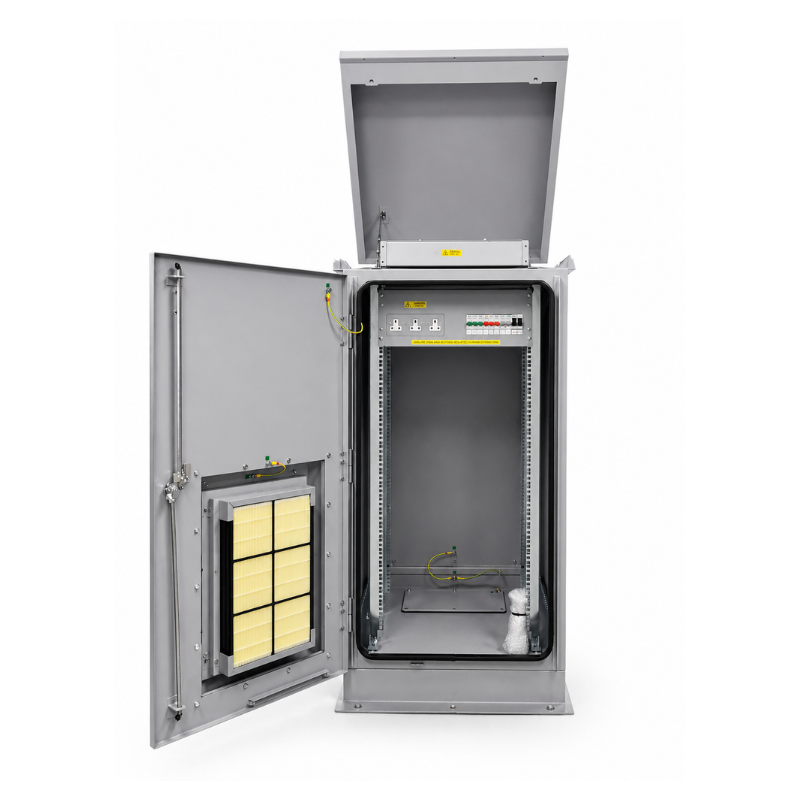

• Peaked hinged roof for weather protection

• Captive door stays for secure operation

• Removable lifting brackets for easy installation

• Base-mounted earth point for safety compliance

• Plain cable entry gland plates in base

• Designed for all-weather resilience and temperature stability

Applications:

• Rail and station communication systems

• CCTV and security equipment enclosures

• Active telecom network installations

• Data and connectivity infrastructure

• Outdoor equipment protection in harsh environments
