MaxCell Multi-Cell Textile Sub - Tube – MXE8638 – Datacentre

MaxCell Multi-Cell Textile Sub-Tube – MXE8638 – Datacentre

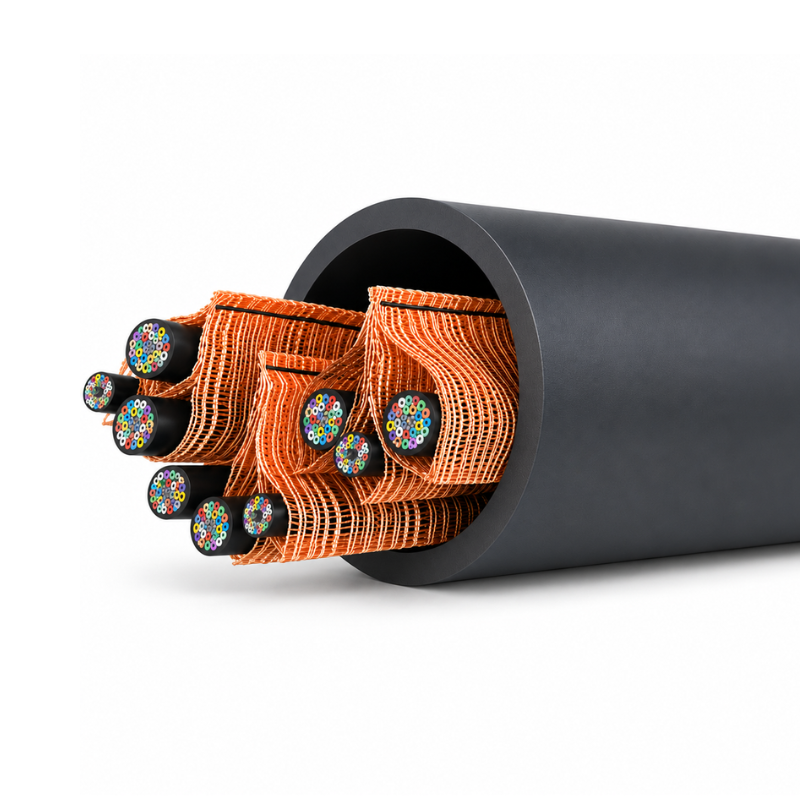

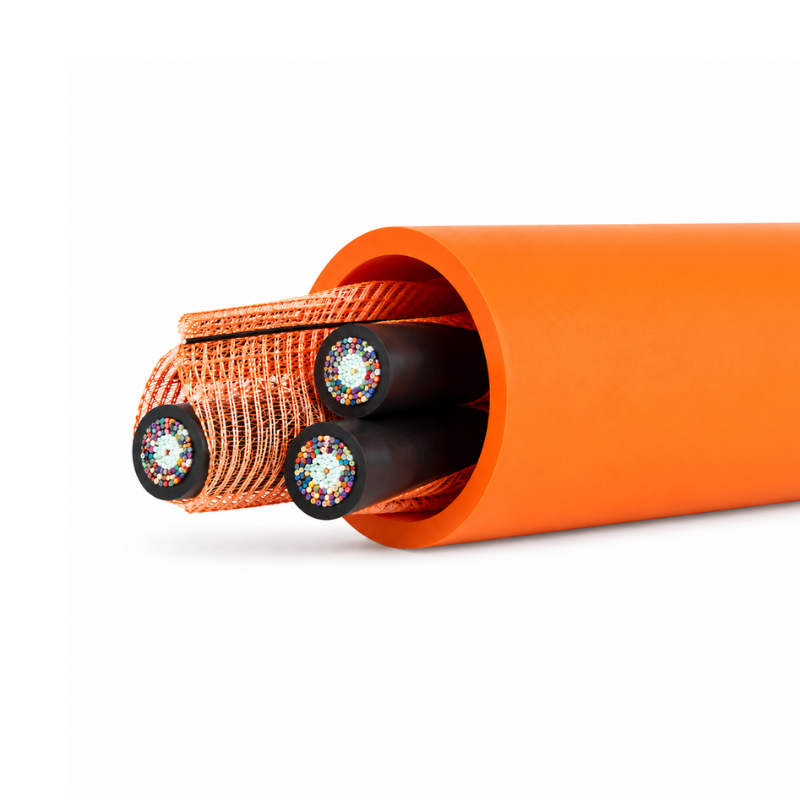

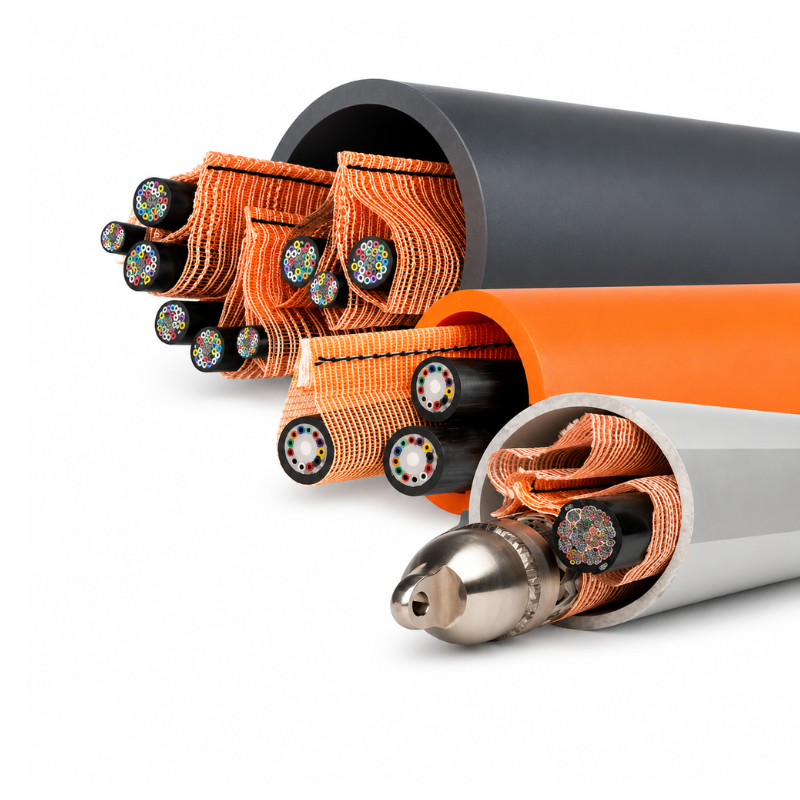

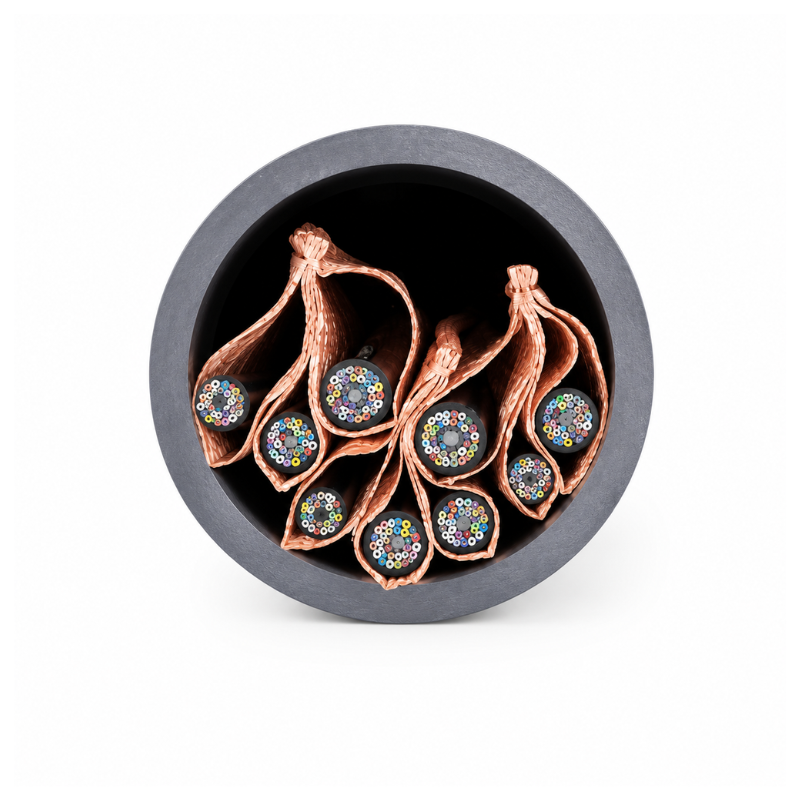

The MaxCell Multi-Cell Textile Sub-Tube – MXE8638 – Datacentre is a premium multi-cell textile sub-duct engineered for high-density data centres, FTTH networks, 5G infrastructure and telecommunications backbone deployments. Developed using 5th generation MaxCell EDGE technology, its flexible, pre-lubricated textile construction minimises cable pulling forces while maximising the available capacity within existing conduit systems.

Designed for installation inside PVC, HDPE and TPC conduits, the MXE8638 supports both new cable installations and future network expansion without additional civil works. Featuring up to four independent compartments, each capable of accommodating cables up to 38mm in diameter, it delivers exceptional scalability, cable protection and efficient use of conduit space for demanding telecommunications and IT environments.

Key Features:

• Multi-cell textile sub-duct for data centre, FTTH and 5G applications

• MaxCell EDGE 5th generation technology

• Up to four independent cable compartments

• Pre-lubricated textile construction

• Reduces cable pulling forces

• Maximises conduit capacity and utilisation

• Supports new installations and future infrastructure expansion

• Flexible design adapts to conduit geometry

• Protects critical network cabling

• Designed for high-density telecommunications infrastructure

Technical Specifications:

• Product Type: Multi-Cell Textile Sub-Tube

• Brand: MaxCell

• Model: MXE8638

• Version: MaxCell EDGE Datacentre / 5G

• Construction: Flexible Pre-Lubricated Textile

• Number of Cells: Up to 4

• Maximum Cable Diameter: 38mm per Cell

• Compatible Conduits:

  • PVC

  • HDPE

  • TPC

• Applications:

  • High-Density Data Centres

  • FTTH Networks

  • 5G Infrastructure

  • Telecommunications Backbone

• Available Supplier References:

  • MXE86381

  • MXE86382

  • MXE86383

  • MXE86384

• Weight: 325kg

Applications:

• High-density data centres

• FTTH network deployment

• 5G infrastructure

• Telecommunications backbone networks

• Enterprise fibre networks

• Campus networks

• Underground duct systems

• Critical infrastructure

• Network expansion projects

• Cable replacement and upgrade programmes
