MaxCell Multi-Cell Textile Sub - Tube – MXE5222 – Datacentre

MaxCell Multi-Cell Textile Sub-Tube – MXE5222 – Datacentre

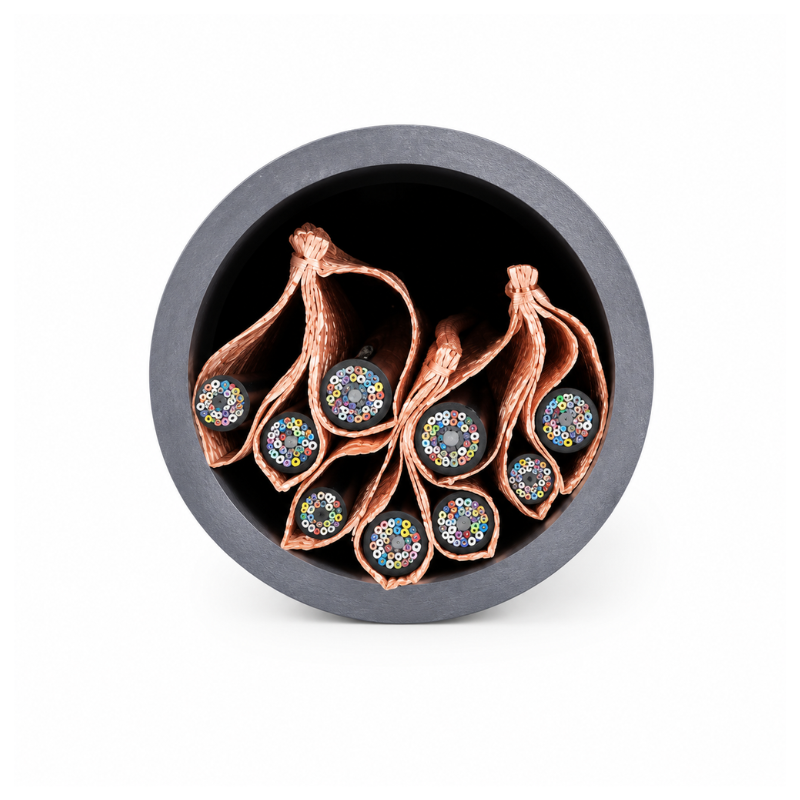

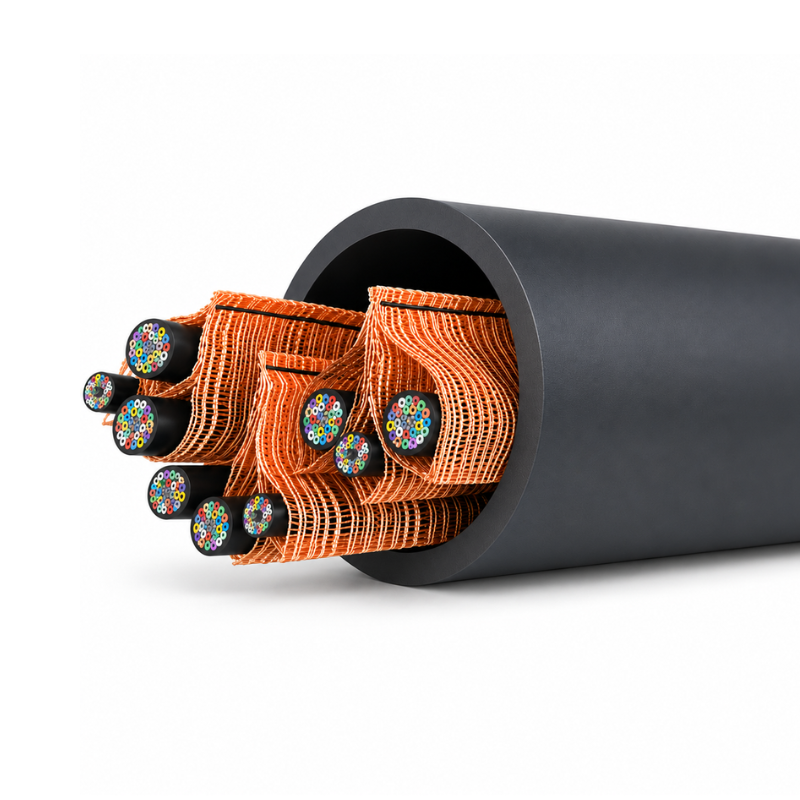

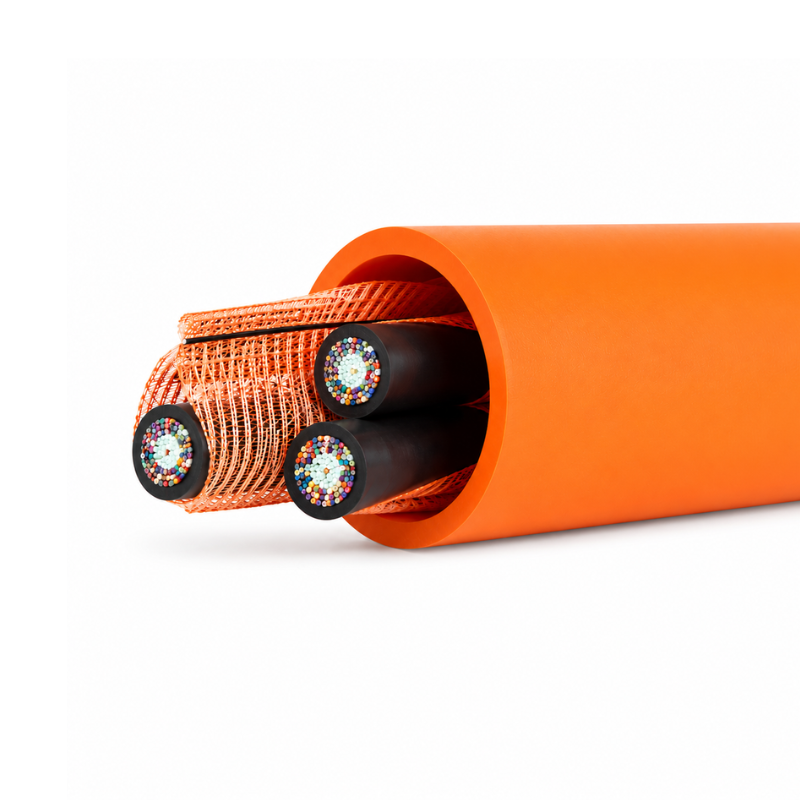

The MaxCell Multi-Cell Textile Sub-Tube – MXE5222 – Datacentre is a high-capacity multi-cell textile sub-duct engineered to optimise cable deployment in data centres, FTTH networks and telecommunications backbone infrastructure. Developed using MaxCell EDGE technology, its flexible, pre-lubricated textile construction significantly reduces cable pulling forces while maximising conduit utilisation, allowing up to three times more cables to be installed compared to traditional rigid inner ducts.

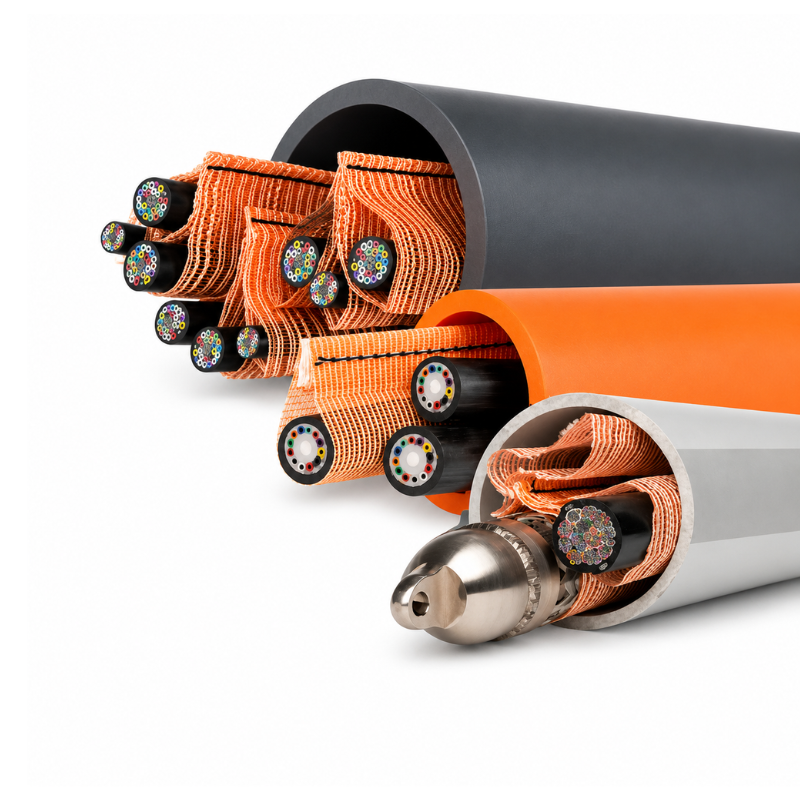

Designed for installation within existing PVC, HDPE and TPC conduits, the MXE5222 supports both new cable installations and future network expansion without additional civil works. Featuring up to four independent compartments, each capable of accommodating cables up to 22mm in diameter, it provides outstanding cable protection, scalability and efficient use of valuable duct space for high-density network deployments.

Key Features:

• Multi-cell textile sub-duct for data centre and telecom applications

• MaxCell EDGE technology

• Up to four independent cable compartments

• Pre-lubricated textile construction

• Supports up to three times more cables than traditional rigid inner ducts

• Reduces cable pulling forces

• Maximises conduit occupancy and available space

• Suitable for new installations and infrastructure upgrades

• Flexible design adapts to conduit geometry

• Protects critical network cabling

Technical Specifications:

• Product Type: Multi-Cell Textile Sub-Tube

• Brand: MaxCell

• Model: MXE5222

• Version: MaxCell EDGE Datacentre / 5G

• Construction: Flexible Pre-Lubricated Textile

• Number of Cells: Up to 4

• Maximum Cable Diameter: 22mm per Cell

• Compatible Conduits:

  • PVC

  • HDPE

  • TPC

• Applications:

  • High-Density Data Centres

  • FTTH Networks

  • Telecommunications Backbone

• Available Supplier References:

  • MXE55221 (2.00"-1)

  • MXE55222 (2.00"-2)

  • MXE55223 (2.00"-3)

  • MXE55224 (2.00"-4)

• Weight: 275kg

Applications:

• High-density data centres

• Telecommunications backbone networks

• FTTH infrastructure

• Enterprise fibre networks

• 5G infrastructure

• Campus networks

• Underground duct systems

• Critical infrastructure

• Network expansion projects

• Cable replacement and upgrade programmes
