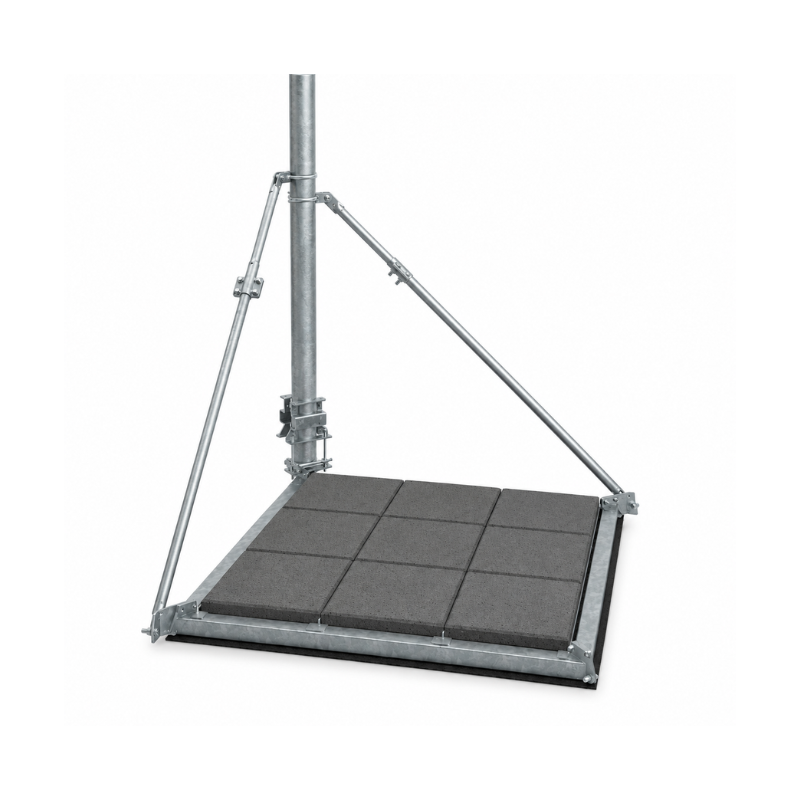

MAFI 4611 – Modular Free Standing Roof Top Solution – 3 x 3
The MAFI 4611 – Modular Free Standing Roof Top Solution – 3 x 3 is a heavy-duty rooftop mounting system designed to provide a secure, non-penetrating solution for supporting telecommunications equipment, antennas and poles on flat roofs.

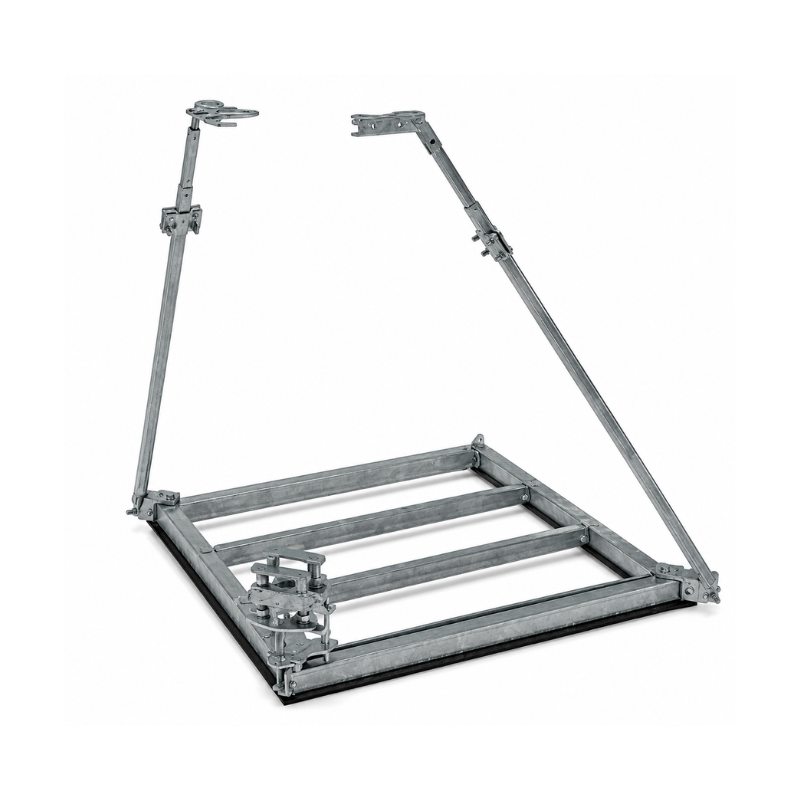

Designed to eliminate the need to penetrate roof waterproofing layers, the modular system uses adjustable ballast-carrying cross beams to accommodate a variety of concrete paving slab sizes, allowing installers to use locally available ballast. The structure supports a maximum ballast weight of 504kg while maintaining exceptional stability in demanding rooftop environments.
The system is supplied as standard with a Ø114.3mm (4.5") pole, with the option to specify a Ø76.1mm (3") pole using the optional 2801-1 U-bolt kit. The pole remains vertical on roof slopes of up to 4°, ensuring correct equipment alignment, while the fold-flat design simplifies transportation, installation and ongoing maintenance.
Engineered for telecommunications, wireless infrastructure and rooftop communications equipment, the MAFI 4611 provides a robust, adaptable and installer-friendly mounting solution.
Key Features:
-
Non-penetrating rooftop mounting system
-
Modular 3 x 3 freestanding design
-
Protects roof waterproofing membranes
-
Adjustable ballast-carrying cross beams
-
Supports up to 504kg ballast
-
Standard Ø114.3mm (4.5") support pole
-
Optional Ø76.1mm (3") pole compatibility
-
Suitable for roof slopes up to 4°
-
Fold-flat pole for easy installation and maintenance
-
Heavy-duty galvanised construction
Technical Specifications:
-
Product Type: Modular Free Standing Roof Top Solution
-
Model: MAFI 4611
-
Configuration: 3 x 3
-
Installation: Non-Penetrating Rooftop Mount
-
Standard Pole Diameter: Ø114.3mm (4.5")
-
Optional Pole Diameter: Ø76.1mm (3")
-
Maximum Roof Slope: 4°
-
Maximum Ballast Weight: 504kg (1111lb)
-
Ballast Type: Concrete Paving Slabs
-
Pole Design: Fold Flat
Optional Accessories
-
42071 – Concrete Slab Ballast
-
Half Ballast: 9 Slabs
-
Full Ballast: 18 Slabs
-
91124 – Additional Strut for Yoke Arms (Ø76.1mm Pole)
-
2801-1 – U-Bolt Kit for Ø76.1mm Pole
Applications:
-
Mobile network infrastructure
-
Rooftop telecommunications installations
-
Wireless communication systems
-
Antenna mounting
-
Radio equipment support
-
4G and 5G infrastructure
-
Commercial rooftops
-
Industrial buildings
-
Broadcast equipment
-
Non-penetrating rooftop installations
