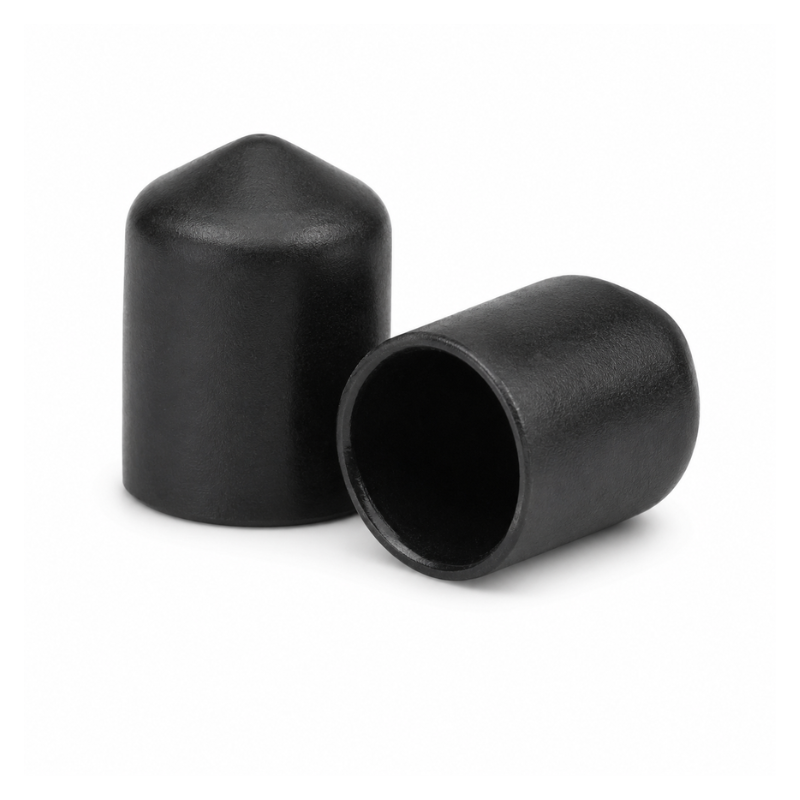

CAP 10 – M10 Stud End Cap
The CAP 10 M10 Stud End Cap is a durable protective solution designed to cover and seal M10 threaded studs, offering reliable resistance against dust, moisture, and impact. Manufactured from high-quality PVC polymer, this cap provides excellent flexibility and toughness for industrial and electrical applications.
With a blend of resin particles and plasticiser, the CAP 10 ensures long-lasting elasticity and performance, even in demanding environments. Its high elongation at break and strong tensile strength make it ideal for applications requiring durability and repeated use.
Key Features:
- Flexible PVC construction for durability and resilience
- Provides protection against contaminants and mechanical damage
- Excellent elasticity with elongation at break up to 320%
- Strong tensile strength for secure fitting and long service life
- Suitable for continuous use in temperatures up to 60°C
- Ideal for industrial, electrical, and mechanical applications
Technical Specifications:
- Composition: PVC polymer blended liquid substance consisting of resin particles dispersed in a plasticiser
- Viscosity: 3,500–4,500 cps @ 20°C (Brookfield RV Spindle 3/10 rpm)
- Specific Gravity: 1.20–1.25 g/cm³ @ 20°C
- Shore "A" Hardness: 80 ± 3
- Elongation at Break: 280–320%
- Tensile Strength: 15 MN/m²
- Service Temperature: Max 60°C (continuous)
- Colour: Black
