Excel Enbeam 24 Way Singlemode Fibre Optic Panel – 8 LC Duplex – 16 Fibre – Blue

Excel Enbeam 24 Way Singlemode Fibre Optic Panel – 8 LC Duplex – 16 Fibre – Blue

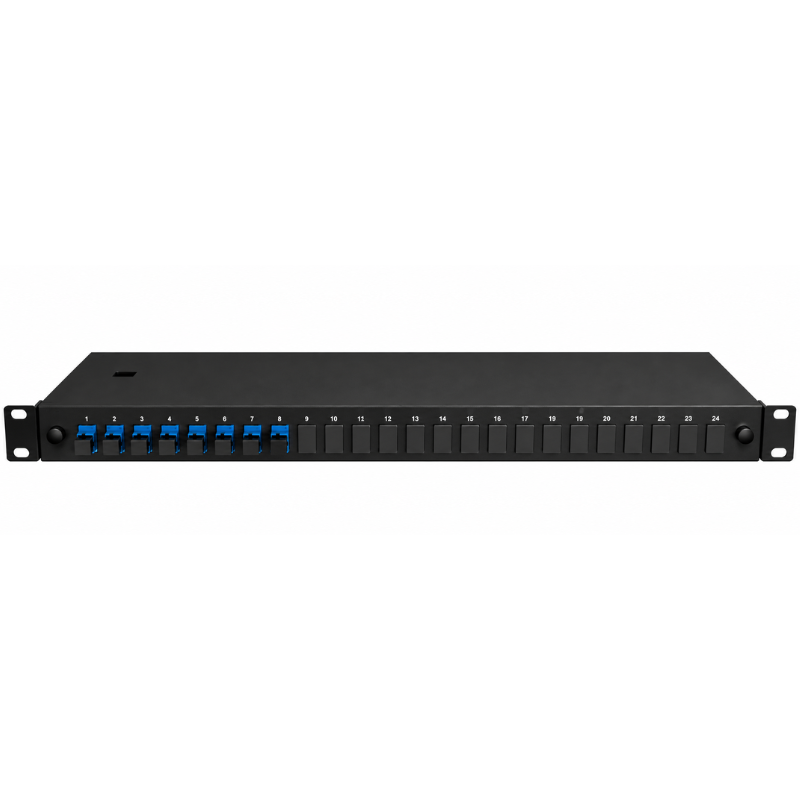

The Excel Enbeam 24 Way Singlemode Fibre Optic Panel provides a flexible and scalable solution for fibre termination, patching and distribution within data centre, telecommunications and structured cabling environments. Designed for OS2 singlemode fibre, this configuration is loaded with 8 LC Duplex adaptors, providing connectivity for 16 fibres.

With capacity for up to 24 module inserts and 48 fibre cores, the panel provides room for future network expansion without requiring replacement of the enclosure. The compact LC Duplex format enables high-density fibre connectivity while making efficient use of the available rack space.

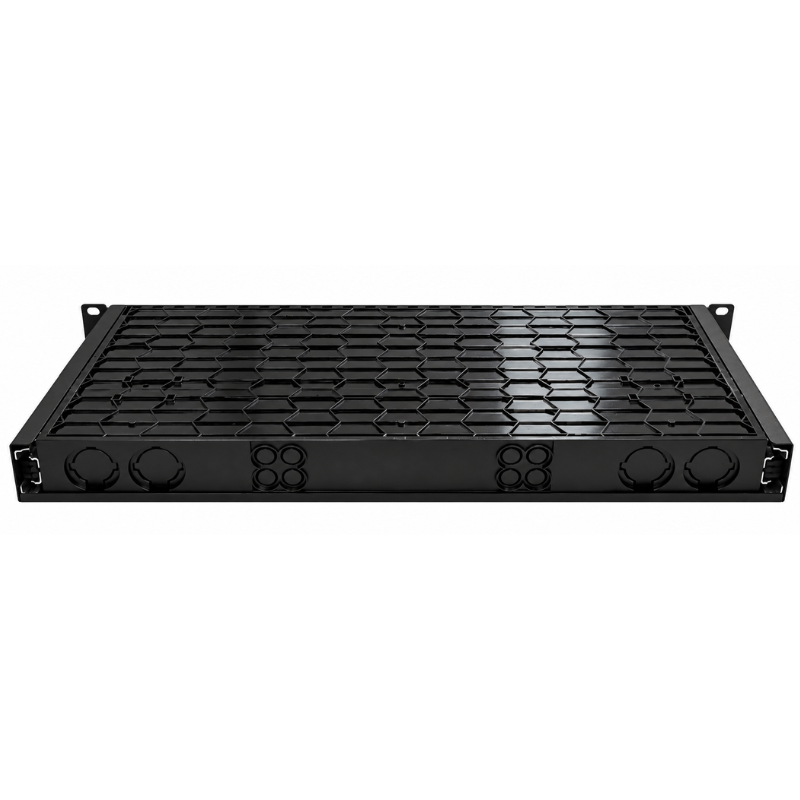

The panel occupies just 1U within a standard 19" rack and is manufactured from ABS and 1.2mm cold rolled steel with a durable powder-coated finish. Two 20mm and two 25mm cable entry points provide flexibility when routing incoming fibre cables, while the IP20-rated construction is suited to protected indoor network environments.

Designed in accordance with ISO/IEC 11801, IEC 60304, IEC 61754 and TIA/EIA 568.D, the panel provides a professional fibre management solution for OS2 network installations. It is supplied without pigtails, allowing the appropriate termination components to be selected for the individual project.

Key Features:

• Excel Enbeam 24-way fibre optic panel

• Loaded with 8 x LC Duplex adaptors

• Provides connectivity for 16 fibres

• Designed for OS2 singlemode fibre

• Capacity for up to 48 fibre cores

• Supports up to 24 module inserts

• LC Duplex internal and external connectivity

• UPC/non-APC configuration

• Compact 1U rack height

• Standard 19" rack mounting

• Two 20mm cable entry points

• Two 25mm cable entry points

• ABS and cold rolled steel construction

• Durable powder-coated finish

• IP20 rated

• Operating temperature from -40°C to +80°C

• RoHS compliant

• Supplied without pigtails

• Designed for scalable fibre network installations

Technical Specifications:

• Brand: Excel Enbeam

• Product Type: Fibre Optic Panel

• Panel Capacity: 24 Way

• Suitable Fibre Cores: Up to 48

• Module Insert Capacity: 24

• Loaded Adaptors: 8

• Active Fibre Capacity: 16 Fibres

• Adaptor Type: LC Duplex

• External Connector Type: LC Duplex

• Internal Connector Type: LC Duplex

• Fibre Type: Singlemode

• Fibre Class: OS2

• APC Type: No

• Pigtails Included: No

• Rack Mounting: 482.6mm (19")

• Rack Height: 1U

• Colour: Black

• RAL Number: RAL 9005

• Height: 43.8mm

• Width: 482mm

• Depth: 216.3mm

• Operating Temperature: -40°C to +80°C

• IP Rating: IP20

• 20mm Cable Entries: 2

• 25mm Cable Entries: 2

• Material: ABS and Cold Rolled Steel

• Material Thickness: 1.2mm

• Material Coating: Powder Coated

• RoHS: Compliant

• Standards: ISO/IEC 11801, IEC 60304, IEC 61754, TIA/EIA 568.D

Applications:

• OS2 singlemode fibre networks

• Data centre fibre connectivity

• Telecommunications infrastructure

• Structured cabling systems

• Communications and equipment rooms

• Fibre termination and distribution

• 19" network and server cabinets

• Enterprise fibre networks

• Fibre network expansion
