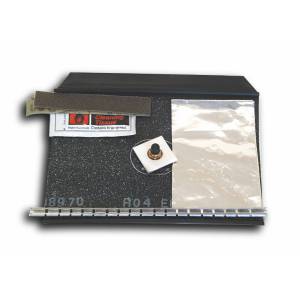

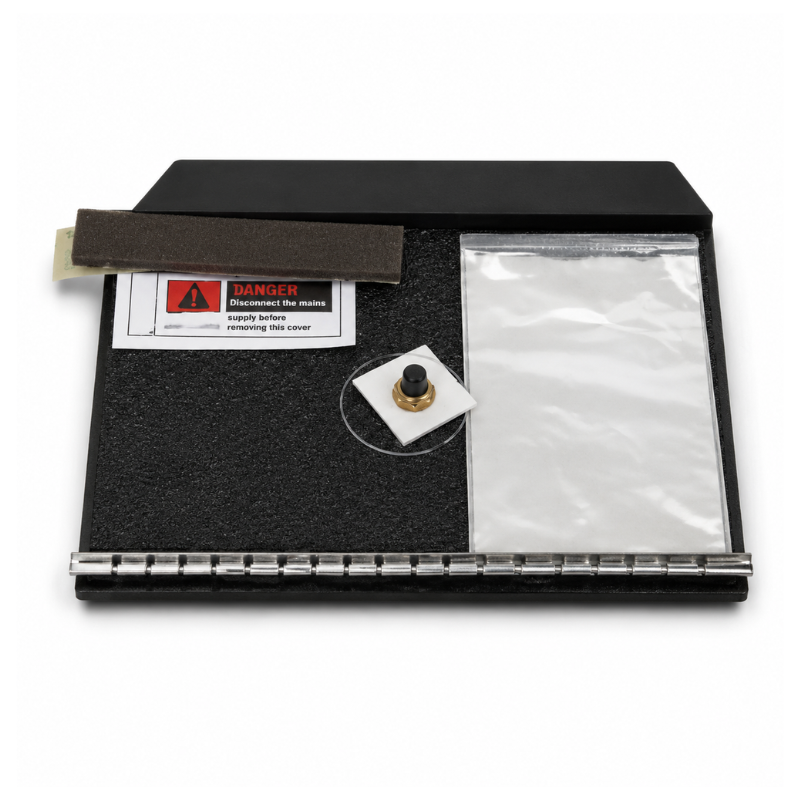

Connector / Valve Air Heatshrinkable 1C
The Connector / Valve Air Heatshrinkable 1C is designed to provide a secure and durable air inlet point on pressurised fibre optic cables. It features an integrated Valve Air 5, allowing for accurate test pressure readings during the installation or maintenance of heatshrink closure systems.
This heat-activated sealing component fits larger cable diameters and ensures a reliable, airtight seal, essential for maintaining pressure integrity in optical cable joints. The 1C variant is ideal for use on backbone or trunk fibre installations where larger cable sizes are deployed.
Key Features & Benefits:
- Provides air inlet access on pressurised fibre optic cables
- Integrated Valve Air 5 for monitoring and test pressure control
- Heatshrink sleeve offers a tight, waterproof seal
- Compatible with larger cable diameters in trunk or distribution networks
- Easy to install with a heat source
- Ideal for use in joint closures, pressurised cable maintenance and testing
Technical Specifications:
- Maximum Cable Diameter: 90mm
- Minimum Cable Diameter: 55mm
- Sleeve Length: 250mm
- Valve Type: Air Valve 5
- Application: Fibre optic pressurised joint enclosures
- Installation Method: Heat-activated shrink seal
