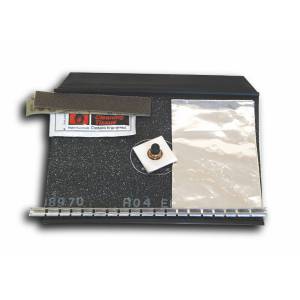

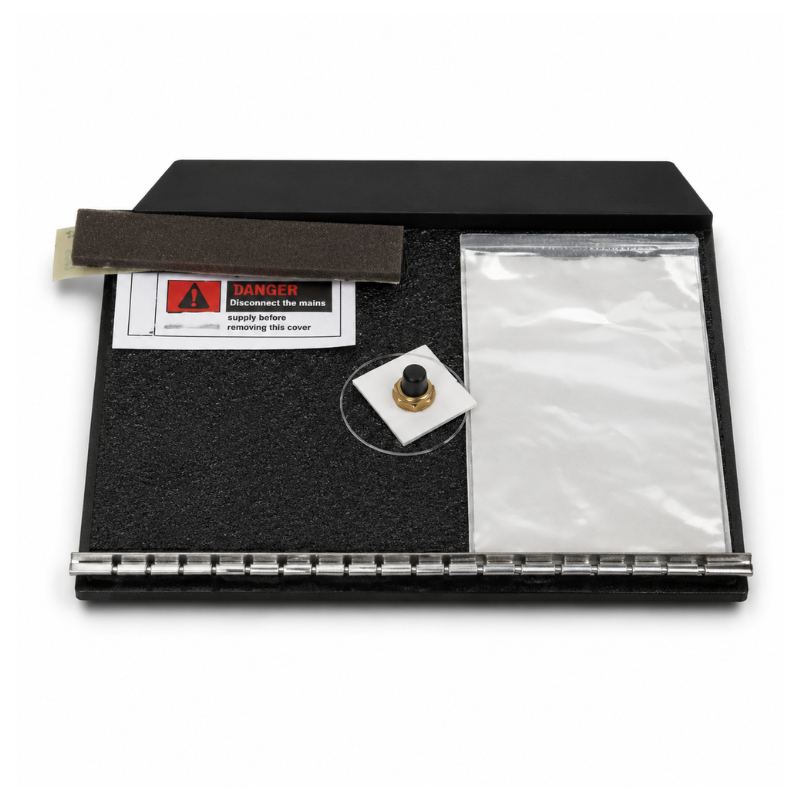

Connector/Valve Air Heatshrinkable 1A
The Heatshrinkable Connector/Valve 1A provides air inlets on pressurised fibre optic cables, particularly in heat-shrink closure systems. This component incorporates a Valve Air 5 to enable precise test pressure readings, ensuring optimal seal integrity during installation and maintenance.
Designed for use on a wide range of cable diameters, the sleeve fits securely and shrinks to form a tight, air-sealed interface around the cable. It is ideal for fibre joint enclosures where maintaining pressure is critical for protection and long-term reliability.
Key Features & Benefits:
- Enables controlled air inlet on pressurised fibre optic cables
- Includes Valve Air 5 for test pressure monitoring
- Compatible with most heatshrink fibre optic closure systems
- Designed for quick, secure application using a heat source
- Ensures airtight sealing for pressure retention
- Ideal for both installation and maintenance use cases
Technical Specifications:
- Maximum Cable Diameter: 40mm
- Minimum Cable Diameter: 16mm
- Sleeve Length: 250mm
- Valve Type: Air Valve 5
- Application: Fibre optic heatshrink closures
- Installation Method: Heat activated
