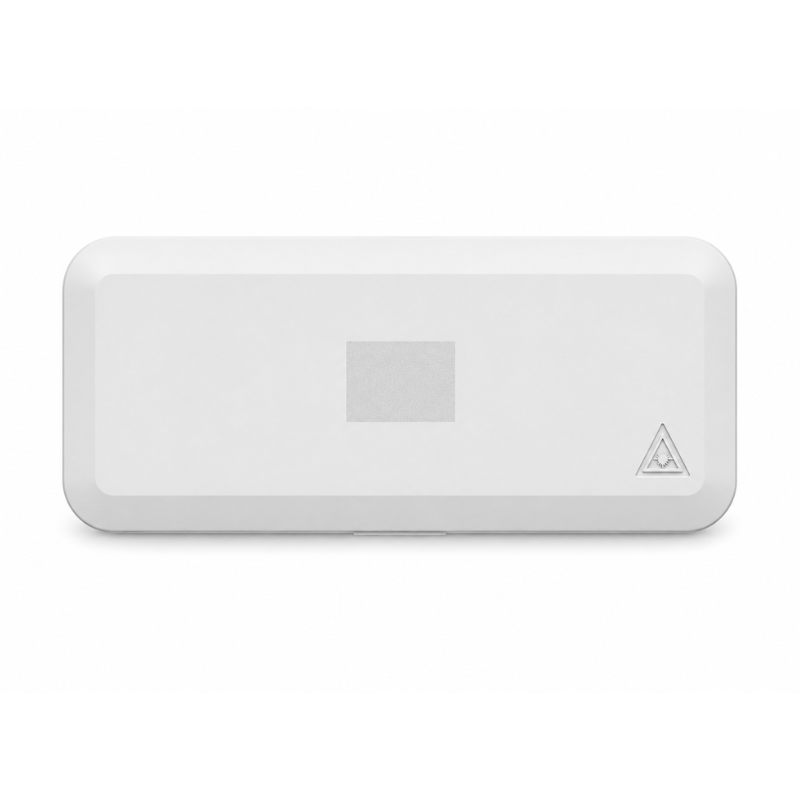

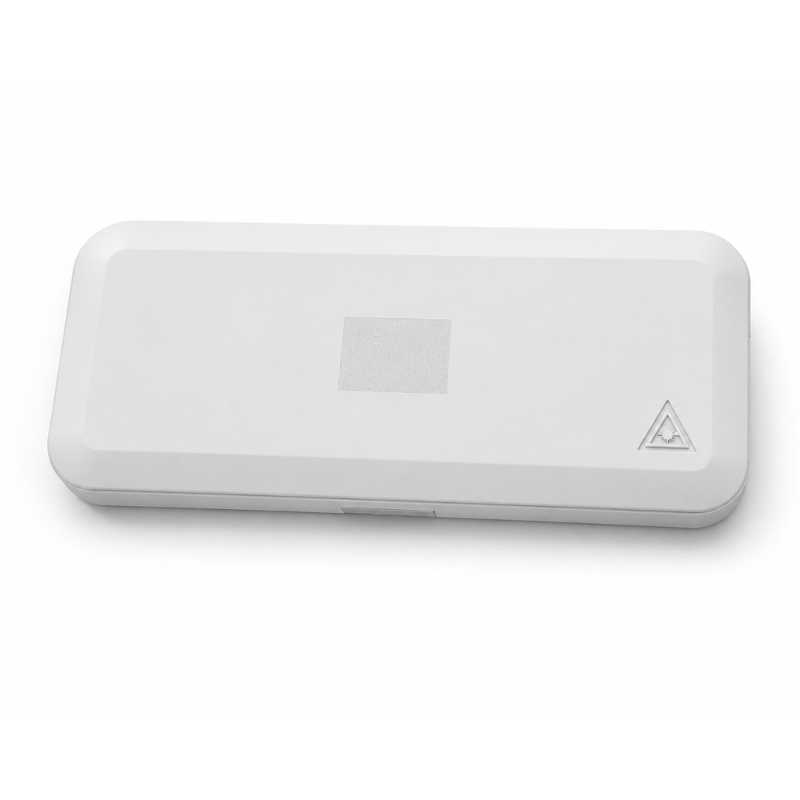

Compact Point of Entry (POE)

Compact Point of Entry (POE)

The Compact Point of Entry (POE) is a discreet fibre termination enclosure designed to provide a neat and secure transition point between external drop cables and internal fibre cabling. Its compact design makes it ideal for residential and commercial FTTH installations where space is limited while maintaining professional cable management and splice protection.

Manufactured from ABS UL94 V-0 flame-retardant material, the enclosure offers excellent durability and reliable long-term performance. Internal fibre guides simplify cable routing and splice management, while the enclosure is easily secured to a wall using two screws. It supports both drop cable splicing and breakout cable repair, making it a versatile solution for fibre access networks.

The enclosure accommodates up to four drop cable entries (2–6mm) with an additional rear cable entry through the wall. It supports 1 x SC simplex adapter or 2 x LC duplex adapters, making it suitable for a wide range of fibre termination applications. A built-in fire clip protection feature further enhances installation safety.

Key Features:

• Compact, discreet fibre point of entry enclosure

• Suitable for internal fibre terminations

• Supports up to four drop cable entries (2–6mm)

• Additional rear cable entry through wall

• Internal fibre routing guides

• Supports drop cable splicing and breakout cable repair

• Accommodates 1 × SC simplex or 2 × LC duplex adapters

• 2-fibre splice capacity for drop cable

• Manufactured from ABS UL94 V-0 flame-retardant material

• Simple wall mounting using two fixing screws

Technical Specifications:

• Product Type: Compact Point of Entry (POE)

• Drop Cable Entries: 4 (2–6mm)

• Additional Entry: Rear through-wall cable entry

• Adapter Capacity:

  • 1 × SC Simplex

  • 2 × LC Duplex

• Splice Capacity: 2F Drop Cable

• Functions:

  • Drop Cable Splicing (2F)

  • Breakout Cable Repair (16F)

• Additional Feature: Fire Clip Protection

• Material: ABS UL94 V-0

• Colour: White

• Dimensions:

  • Width: 148.45mm

  • Height: 60.0mm

  • Depth: 18.2mm

Applications:

• FTTH installations

• Fibre building entry points

• Residential fibre terminations

• Commercial fibre networks

• Customer premises fibre connections

• Fibre drop cable management

• Internal fibre splicing

• Broadband network installations

• Passive Optical Networks (PON)

• Fibre access infrastructure
