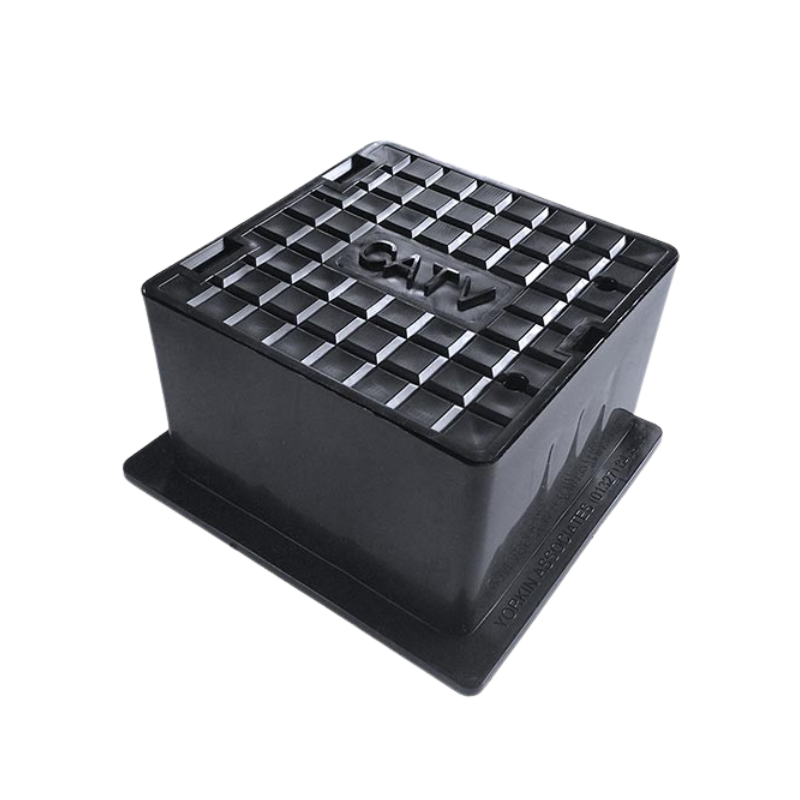

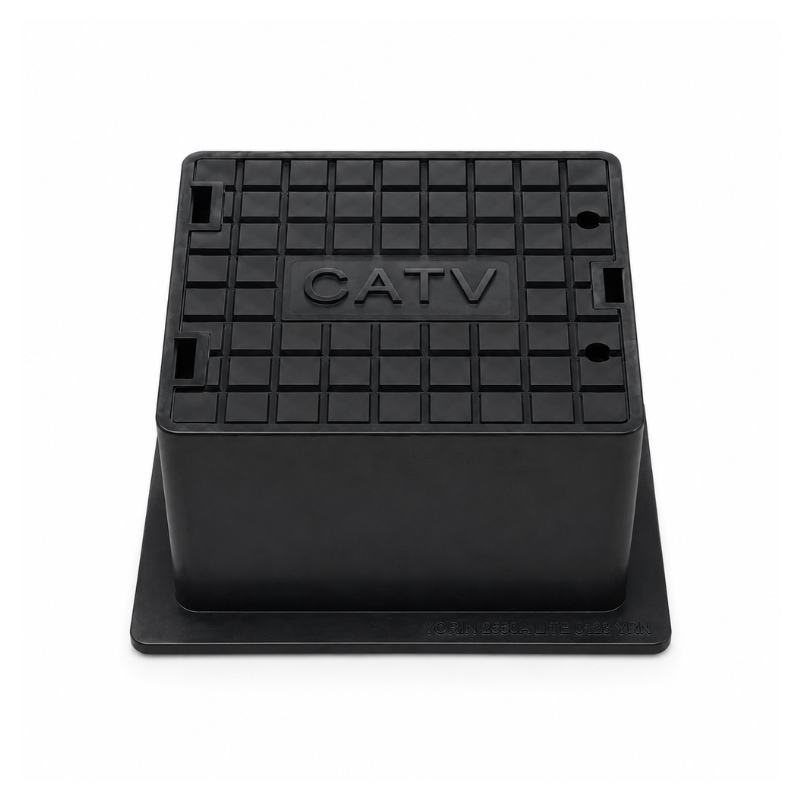

CATV Surface Box – 130mm x 140mm x 75mm (Sid Box)
The CATV Surface Box, also known as a Sid Box, is a robust and compact enclosure designed for external cable television installations. Constructed to withstand outdoor conditions, this surface-mounted box is clearly marked ‘CATV’ for easy identification in the field. Ideal for use in fibre and coaxial CATV network terminations, it ensures secure and weather-resistant housing for cable connections.
The box features a durable plastic body with a 63mm internal diameter spigot for duct entry, providing a snug fit for standard telecom ducting. Its compact design makes it easy to install in tight or limited-access areas such as garden walls or street furniture. The flange mounting allows for firm surface installation while maintaining a discreet footprint.
Key Features:
-
Clearly marked 'CATV' for field identification
-
Suitable for fibre or coaxial cable television applications
-
Weather-resistant design for long-term outdoor use
-
Spigot accommodates 63mm internal / 66mm external ducting
-
Compact size ideal for wall or surface mounting
-
Lightweight, easy to handle and install
Technical Specifications:
-
External Dimensions: 130mm x 140mm x 75mm
-
Spigot Internal Diameter: 63mm
-
Spigot External Diameter: 66mm
-
Flange Size: 150mm x 134mm
-
Internal Opening Size: 109mm x 109mm
-
Material: Durable outdoor-grade plastic
-
Mounting Type: Surface mount with flange
