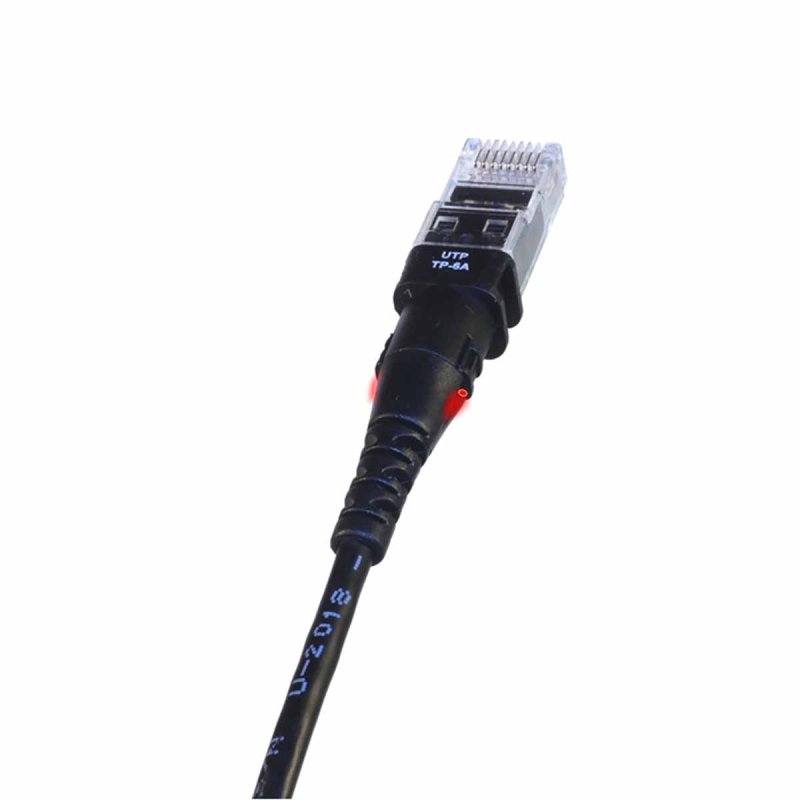

The illuminated RJ45 cable integrates Patchsee and Patchclip technologies, offering easy and quick identification. Compatible with Pro-Patchlight light injectors, this cable facilitates patching and accessibility, especially in high-density environments.
Main Features:
- Patchsee and Patchclip technologies for easy identification (16 available colors)
- 11 available lengths from 0.6m to 4.9m
- Black sheath and reference and length markings on the sleeve
- UTP and FTP versions 100 Ohms
- Compatible with categories 5e, 6, 6a (TIA/EIA-568.2-D and ISO/IEC 11801-2:2017 standards)
- Up to 10 Gbit/s application
- Slim sleeve aligned with RJ45 connector for higher density
- Tinned copper conductor AWG 28 and plastic optical waveguide
- Overall diameter: 3.8mm and bending radius of 11.4mm
Technical Specifications:
- 4 pairs - Type: U-UTP
- Tinned copper wire, 7 / 0.124 +/- 0.003 mm
- Insulation: High-density polyethylene
- Optical waveguide: 2 plastic optical fibers of 0.5mm
- PVC sheath
