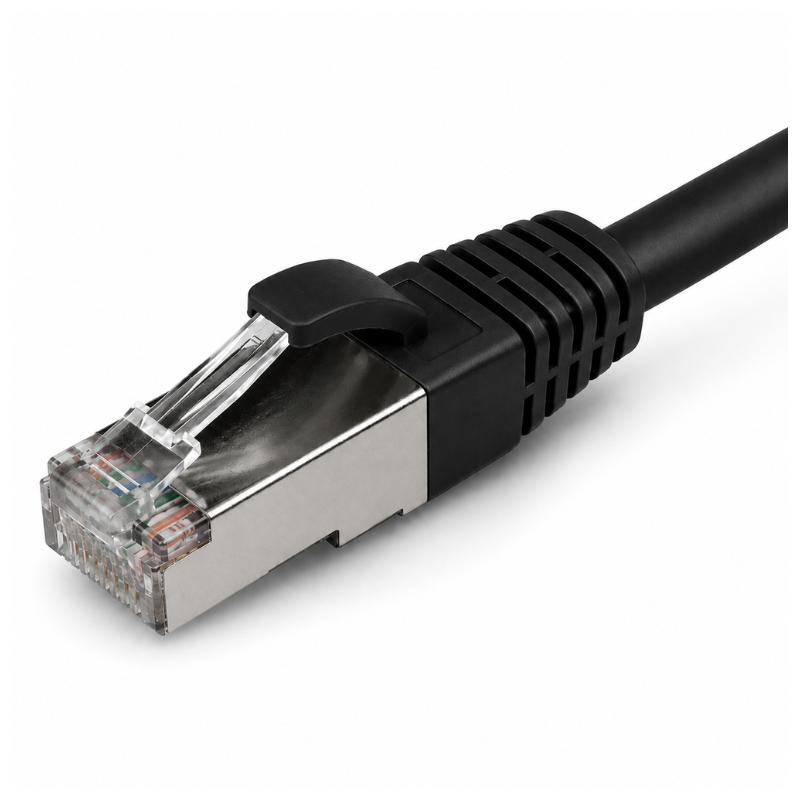

CAT6A Patchcord – U/UTP – RJ45 to RJ45 – AWG28 – Small OD – Black – 3.1m

CAT6A Patchcord – U/UTP – RJ45 to RJ45 – AWG28 – Small OD – Black – 3.1m

The CAT6A U/UTP RJ45 to RJ45 Patchcord – 3.1m is a slim-profile network patch cable designed for high-density structured cabling environments. Featuring Patchsee and Patchclip technologies, it provides a simple method of identifying individual connections, helping technicians trace and manage network cabling more efficiently.

Featuring AWG28 tinned copper conductors in a four-pair U/UTP configuration, the patchcord supports network applications up to 10 Gbit/s. Its compact 3.8mm overall diameter helps reduce cable congestion within densely populated racks and cabinets while maintaining flexible cable routing.

An integrated optical waveguide consisting of two 0.5mm plastic optical fibres supports light-based cable identification. The slim sleeve is aligned with the RJ45 connector, helping increase connection density and improve accessibility around patch panels, switches and other network equipment.

Finished with a black PVC sheath, the 3.1m patchcord includes reference and length markings on the sleeve. Its length provides useful routing flexibility for professional data centre, telecoms and structured cabling installations.

Key Features:

• CAT6A U/UTP network patchcord

• RJ45 to RJ45 connectivity

• 3.1 metre cable length

• AWG28 tinned copper conductors

• Slim 3.8mm overall cable diameter

• Supports applications up to 10 Gbit/s

• Patchsee and Patchclip identification technologies

• 16 Patchclip identification colours available

• Integrated plastic optical waveguide

• Slim RJ45-aligned sleeve for increased connection density

• Black PVC outer sheath

• Reference and cable length marked on sleeve

• 100 Ohm impedance

• 11 lengths available from 0.6m to 4.9m

• Compatible with Category 5e, 6 and 6A applications

Technical Specifications:

• Product Type: Network Patchcord

• Category: CAT6A

• Cable Type: U/UTP

• Connector A: RJ45

• Connector B: RJ45

• Length: 3.1m

• Colour: Black

• Conductor Size: AWG28

• Conductor Material: Tinned Copper

• Conductor Construction: 7 / 0.124 ± 0.003mm

• Number of Pairs: 4

• Overall Diameter: 3.8mm

• Bend Radius: 11.4mm

• Impedance: 100 Ohm

• Insulation: High-Density Polyethylene

• Optical Waveguide: 2 x 0.5mm Plastic Optical Fibres

• Outer Sheath: PVC

• Maximum Application Speed: Up to 10 Gbit/s

• Standards: TIA/EIA-568.2-D, ISO/IEC 11801-2:2017

Applications:

• Data centres

• High-density network racks

• Server cabinets

• Patch panels

• Network switches

• Structured cabling systems

• Telecoms infrastructure

• Network equipment interconnections

• Cable identification and tracing

• Professional network installations
