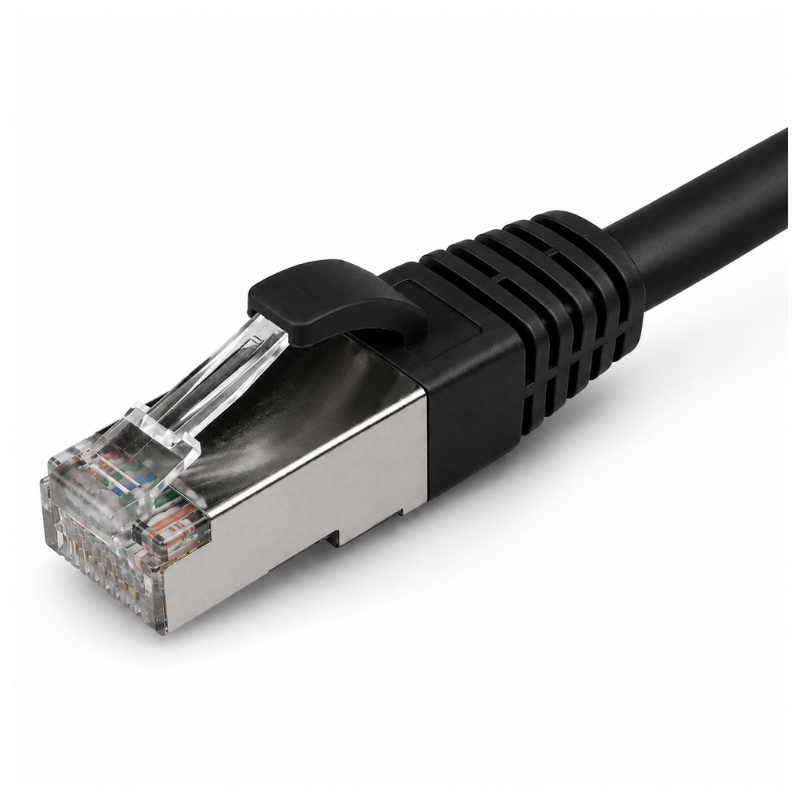

CAT6A Patchcord – U/UTP – RJ45 to RJ45 – AWG28 – Small OD – Black – 1.2m

CAT6A Patchcord – U/UTP – RJ45 to RJ45 – AWG28 – Small OD – Black – 1.2m

The CAT6A U/UTP RJ45 to RJ45 Patchcord – 1.2m is a slim-profile network patch cable designed for high-density structured cabling environments. Featuring Patchsee and Patchclip technologies, it provides simple cable identification to help technicians quickly trace individual connections during installation, maintenance and network changes.

Featuring AWG28 tinned copper conductors in a four-pair U/UTP configuration, the patchcord supports network applications up to 10 Gbit/s. Its compact 3.8mm overall diameter helps reduce cable congestion, making it particularly suitable for densely populated network racks, cabinets and patching environments.

An integrated optical waveguide consisting of two 0.5mm plastic optical fibres supports light-based cable identification. The slim sleeve is aligned with the RJ45 connector, helping improve accessibility and maximise connection density around patch panels and network equipment.

Finished with a black PVC sheath, the 1.2m patchcord includes reference and length markings on the sleeve for straightforward identification. Its practical length provides flexibility for nearby equipment connections while helping minimise unnecessary cable within racks and cabinets.

Key Features:

• CAT6A U/UTP network patchcord

• RJ45 to RJ45 connectivity

• 1.2 metre cable length

• AWG28 tinned copper conductors

• Slim 3.8mm overall cable diameter

• Supports applications up to 10 Gbit/s

• Patchsee and Patchclip identification technologies

• 16 Patchclip identification colours available

• Integrated plastic optical waveguide

• Slim RJ45-aligned sleeve for increased connection density

• Black PVC outer sheath

• Reference and cable length marked on sleeve

• 100 Ohm impedance

• 11 cable lengths available from 0.6m to 4.9m

• Compatible with Category 5e, 6 and 6A applications

Technical Specifications:

• Product Type: Network Patchcord

• Category: CAT6A

• Cable Type: U/UTP

• Connector A: RJ45

• Connector B: RJ45

• Length: 1.2m

• Colour: Black

• Conductor Size: AWG28

• Conductor Material: Tinned Copper

• Conductor Construction: 7 / 0.124 ± 0.003mm

• Number of Pairs: 4

• Overall Diameter: 3.8mm

• Bending Radius: 11.4mm

• Impedance: 100 Ohm

• Insulation: High-Density Polyethylene

• Optical Waveguide: 2 x 0.5mm Plastic Optical Fibres

• Outer Sheath: PVC

• Maximum Application Speed: Up to 10 Gbit/s

• Standards: TIA/EIA-568.2-D, ISO/IEC 11801-2:2017

Applications:

• Data centres

• High-density network racks

• Server cabinets

• Patch panels

• Network switches

• Structured cabling systems

• Telecoms infrastructure

• Network equipment interconnections

• Cable identification and tracing

• Professional network installations
