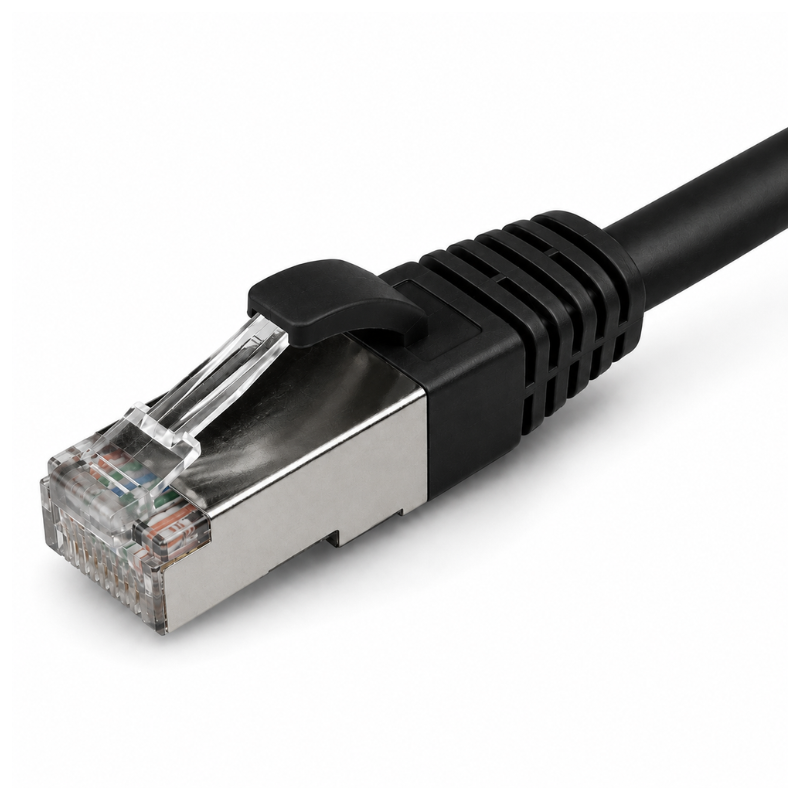

CAT6A Patchcord – U/UTP – RJ45 to RJ45 – AWG28 – Black - Small OD – 4.9m

CAT6A Patchcord – U/UTP – RJ45 to RJ45 – AWG28 – Small OD – 4.9m

The CAT6A U/UTP RJ45 to RJ45 Patchcord – 4.9m is a slim-profile network patch cable designed for high-density structured cabling environments. Combining Patchsee and Patchclip identification technologies, the patchcord allows compatible connections to be identified quickly, helping simplify patching, tracing and maintenance within busy network racks and cabinets.

Compatible with Pro-Patchlight light injectors, the integrated optical identification system uses two plastic optical fibres within the cable to assist with tracing individual patchcords. This is particularly beneficial in high-density environments where identifying conventional network cables can be time-consuming.

The patchcord uses AWG28 tinned copper conductors in a four-pair U/UTP configuration and supports applications up to 10 Gbit/s. Its slim 3.8mm overall diameter and connector-aligned sleeve help reduce cable congestion and improve accessibility around densely populated patch panels and network equipment.

Featuring RJ45 connectors at both ends, a black PVC sheath and a 4.9 metre length, the patchcord provides flexible routing for data centre, telecoms and structured cabling installations while maintaining a compact cable footprint.

Key Features:

• CAT6A U/UTP network patchcord

• RJ45 to RJ45 connectivity

• 4.9 metre cable length

• AWG28 tinned copper conductors

• Slim 3.8mm overall cable diameter

• Supports applications up to 10 Gbit/s

• Integrated Patchsee and Patchclip identification technologies

• Compatible with Pro-Patchlight light injectors

• Integrated plastic optical fibres for cable identification

• 16 Patchclip identification colours available

• Slim connector sleeve designed for high-density installations

• Black PVC outer sheath

• Cable reference and length marked on sleeve

• 100 Ohm impedance

• Suitable for high-density patching environments

Technical Specifications:

• Product Type: Network Patchcord

• Category: CAT6A

• Cable Type: U/UTP

• Connector A: RJ45

• Connector B: RJ45

• Length: 4.9m

• Conductor Size: AWG28

• Conductor Material: Tinned Copper

• Conductor Construction: 7 / 0.124 ± 0.003mm

• Number of Pairs: 4

• Overall Diameter: 3.8mm

• Minimum Bend Radius: 11.4mm

• Impedance: 100 Ohm

• Insulation: High-Density Polyethylene

• Optical Waveguide: 2 x 0.5mm Plastic Optical Fibres

• Outer Sheath: PVC

• Sheath Colour: Black

• Maximum Application Speed: Up to 10 Gbit/s

• Standards: TIA/EIA-568.2-D, ISO/IEC 11801-2:2017

Applications:

• Data centres

• High-density network racks

• Server cabinets

• Patch panels

• Network switches

• Structured cabling systems

• Telecoms infrastructure

• Network equipment interconnections

• Cable identification and tracing

• Professional network installations
