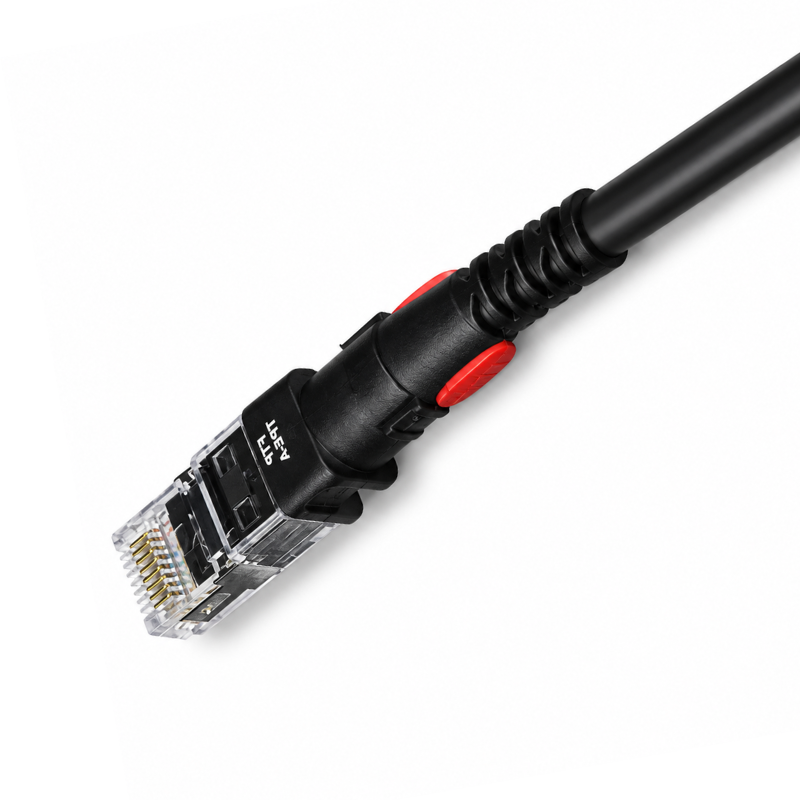

CAT6A Patchcord – U/FTP – RJ45 to RJ45 – AWG28 – Small OD – 4.0m

CAT6A Patchcord – U/FTP – RJ45 to RJ45 – AWG28 – Small OD – 4.0m

The CAT6A U/FTP RJ45 to RJ45 Patchcord – 4.0m is a slim, high-performance network cable designed for reliable connectivity and easy cable identification in high-density network environments. Incorporating Patchsee and Patchclip technologies, the patchcord can be quickly traced using compatible Pro-Patchlight light injectors, helping simplify installation, maintenance and troubleshooting.

Designed to support network applications up to 10Gbit/s, the cable features four individually shielded pairs using aluminium-laminated metal foil. This U/FTP construction provides additional protection against electromagnetic interference while maintaining the flexibility required for professional structured cabling installations.

The AWG28 tinned copper conductors are housed within an LSOH sheath with a compact 4.9mm overall diameter. Combined with the slim RJ45 connector sleeves, this helps reduce cable congestion and improve accessibility around densely populated switches, patch panels and network cabinets.

At 4.0 metres long, the patchcord provides additional reach between network equipment while retaining a compact cable profile. Reference and length markings on the sleeve further assist with cable management and identification.

Key Features:

• CAT6A U/FTP network patchcord

• RJ45 to RJ45 connectivity

• 4.0 metre cable length

• Supports applications up to 10Gbit/s

• Patchsee and Patchclip identification technologies

• Compatible with Pro-Patchlight light injectors

• Integrated plastic fibre optic waveguide

• 16 identification colours available

• AWG28 tinned copper conductors

• Four individually shielded pairs

• Aluminium-laminated metal foil pair shielding

• Tinned steel drain wire

• Slim connector sleeves for high-density patching

• Small 4.9mm overall cable diameter

• 14.7mm bending radius

• LSOH outer sheath

• Black sheath with reference and length markings

• Designed for improved cable accessibility and management

Technical Specifications:

• Product Type: Network Patchcord

• Category: CAT6A

• Cable Type: U/FTP

• Connectors: RJ45 to RJ45

• Length: 4.0m

• Number of Pairs: 4

• Conductor: Tinned Copper

• Conductor Size: AWG28

• Conductor Construction: 7 / 0.124 ± 0.003mm

• Insulation: High-Density Polyethylene

• Individual Pair Shielding: Aluminium-Laminated Metal Foil

• Drain Wire: Tinned Steel

• Drain Wire Construction: 7 / 0.152mm

• Sheath: LSOH

• Sheath Colour: Black

• Overall Diameter: 4.9mm

• Bending Radius: 14.7mm

• Application Speed: Up to 10Gbit/s

• Identification Technology: Patchsee / Patchclip

• Pro-Patchlight Compatible: Yes

• Available Length Range: 0.6m to 4.9m

Applications:

• Data centre network patching

• High-density network racks

• Server racks and cabinets

• Network switches

• Patch panels

• Structured cabling systems

• CAT6A Ethernet networks

• 10 Gigabit Ethernet applications

• Telecommunications networks

• Network equipment interconnections

• Cable tracing and identification
