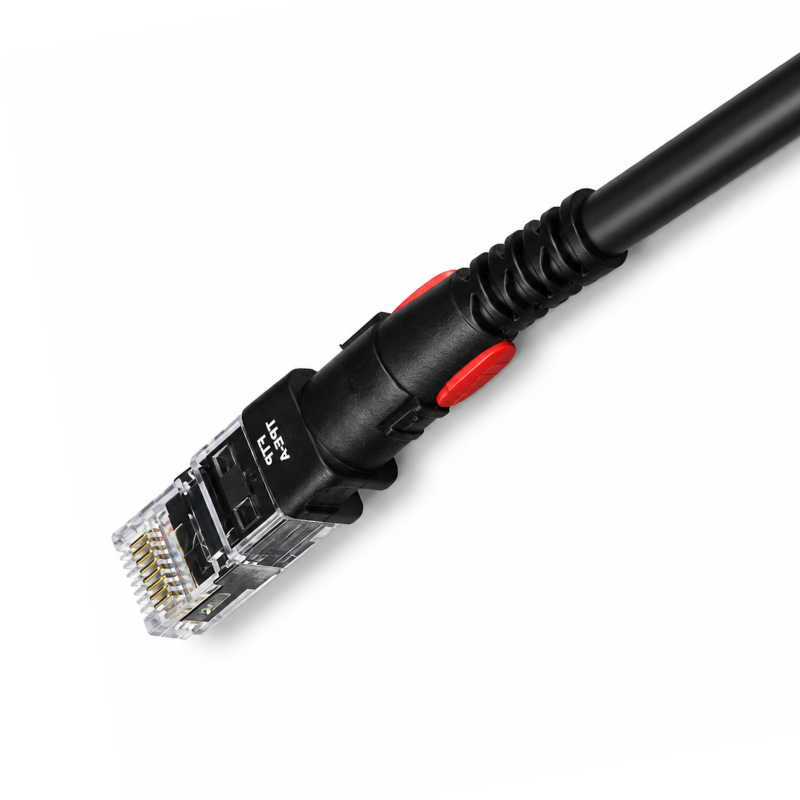

CAT6A Patchcord – U/FTP – RJ45 to RJ45 – AWG28 – Small OD – 2.4m

CAT6A Patchcord – U/FTP – RJ45 to RJ45 – AWG28 – Small OD – 2.4m

The CAT6A U/FTP RJ45 to RJ45 Patchcord – 2.4m is a slim, high-performance network cable designed for reliable connectivity and straightforward cable identification in high-density network environments. Incorporating Patchsee and Patchclip technologies, the patchcord enables quick visual identification when used with compatible Pro-Patchlight light injectors.

Designed to support applications up to 10Gbit/s, the cable features four individually shielded pairs using aluminium-laminated metal foil. This U/FTP construction helps protect signal transmission against electromagnetic interference while retaining the flexibility required for professional structured cabling installations.

The cable uses AWG28 tinned copper conductors alongside an integrated plastic fibre optic waveguide for light-based cable identification. Its compact 4.9mm overall diameter and slim connector sleeves help reduce cable congestion and improve accessibility around densely populated network switches, patch panels and cabinets.

Finished with a black LSOH sheath, the patchcord is suitable for professional network and data centre installations. At 2.4 metres long, it provides useful additional reach between network equipment while retaining a compact profile for efficient rack and cable management.

Key Features:

• CAT6A U/FTP network patchcord

• RJ45 to RJ45 connectivity

• 2.4 metre cable length

• Supports applications up to 10Gbit/s

• Patchsee and Patchclip identification technologies

• Compatible with Pro-Patchlight light injectors

• Integrated plastic fibre optic waveguide

• 16 identification colours available

• AWG28 tinned copper conductors

• Four individually shielded pairs

• Aluminium-laminated metal foil pair shielding

• Tinned steel drain wire

• Slim connector sleeves for high-density patching

• Compact 4.9mm overall cable diameter

• 14.7mm bending radius

• LSOH outer sheath

• Black sheath with reference and length marking

• Designed for efficient cable management and identification

Technical Specifications:

• Product Type: Network Patchcord

• Category: CAT6A

• Cable Type: U/FTP

• Connectors: RJ45 to RJ45

• Length: 2.4m

• Number of Pairs: 4

• Conductor: Tinned Copper

• Conductor Size: AWG28

• Conductor Construction: 7 / 0.124 ± 0.003mm

• Insulation: High-Density Polyethylene

• Individual Pair Shielding: Aluminium-Laminated Metal Foil

• Drain Wire: Tinned Steel

• Drain Wire Construction: 7 / 0.152mm

• Sheath: LSOH

• Sheath Colour: Black

• Overall Diameter: 4.9mm

• Bending Radius: 14.7mm

• Application Speed: Up to 10Gbit/s

• Identification Technology: Patchsee / Patchclip

• Pro-Patchlight Compatible: Yes

• Available Length Range: 0.6m to 4.9m

Applications:

• Data centre network patching

• High-density network racks

• Server racks and cabinets

• Network switches

• Patch panels

• Structured cabling systems

• CAT6A Ethernet networks

• 10 Gigabit Ethernet applications

• Telecommunications networks

• Network equipment interconnections

• Cable tracing and identification
