CAT6A Patchcord – U/FTP – RJ45 to RJ45 – AWG28 – Small OD – 1.8m

CAT6A Patchcord – U/FTP – RJ45 to RJ45 – AWG28 – Small OD – 1.8m

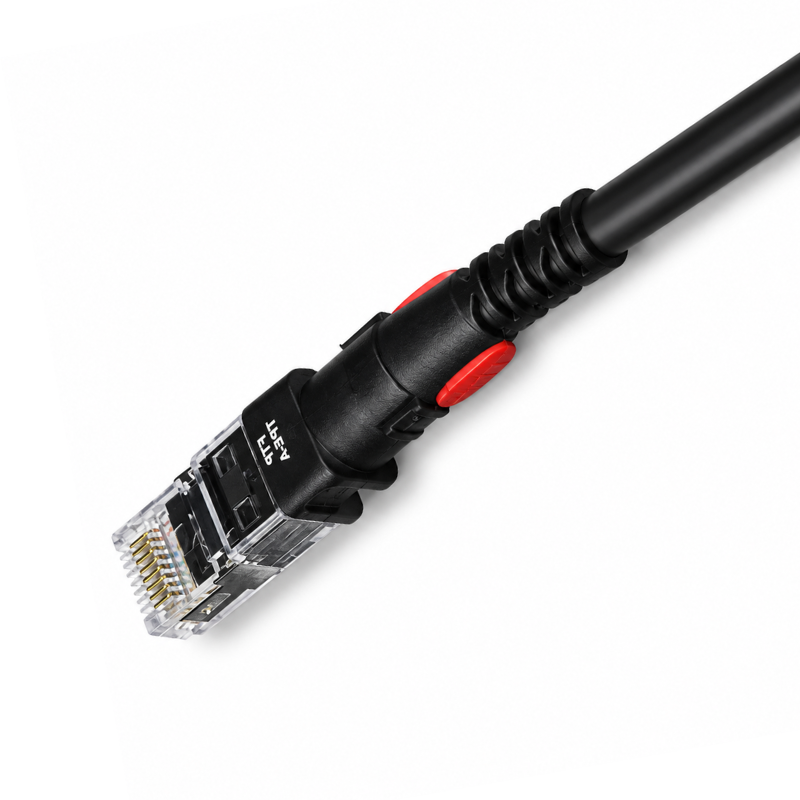

The CAT6A U/FTP RJ45 to RJ45 Patchcord – 1.8m is a slim, high-performance network cable designed for reliable connectivity and straightforward cable identification in high-density networking environments. Incorporating Patchsee and Patchclip technologies, the patchcord can be quickly traced using compatible Pro-Patchlight light injectors, helping simplify network installation, maintenance and troubleshooting.

Designed to support applications up to 10Gbit/s, the cable features four individually shielded pairs using laminated aluminium foil. This U/FTP construction helps protect signal transmission against electromagnetic interference while maintaining the flexibility required for densely populated network racks and cabinets.

The AWG28 tinned copper conductors are combined with a slim 4.9mm overall cable diameter, helping reduce cable congestion around switches and patch panels. The compact connector sleeves further improve accessibility when connecting or removing cables in high-density installations.

An LSOH sheath provides a suitable construction for professional network and data centre environments. At 1.8 metres long, the patchcord provides additional reach between equipment while retaining the compact design and cable identification benefits of the range.

Key Features:

• CAT6A U/FTP network patchcord

• RJ45 to RJ45 connectivity

• 1.8 metre cable length

• Supports applications up to 10Gbit/s

• Patchsee and Patchclip identification technologies

• Compatible with Pro-Patchlight light injectors

• Integrated plastic fibre optic waveguide

• 16 identification colours available

• AWG28 tinned copper conductors

• Four individually shielded pairs

• Laminated aluminium foil pair shielding

• Tinned steel drain wire

• Slim connector sleeves for high-density patching

• Small 4.9mm overall cable diameter

• 14.7mm bending radius

• LSOH outer sheath

• Reference and length marking on the sleeve

• Designed for improved accessibility and cable management

Technical Specifications:

• Product Type: Network Patchcord

• Category: CAT6A

• Cable Type: U/FTP

• Connectors: RJ45 to RJ45

• Length: 1.8m

• Number of Pairs: 4

• Conductor: Tinned Copper

• Conductor Size: AWG28

• Conductor Construction: 7 / 0.124 ± 0.003mm

• Insulation: High-Density Polyethylene

• Individual Pair Shielding: Laminated Aluminium Foil

• Drain Wire: Tinned Steel

• Drain Wire Construction: 7 / 0.152mm

• Sheath: LSOH

• Overall Diameter: 4.9mm

• Bending Radius: 14.7mm

• Application Speed: Up to 10Gbit/s

• Identification Technology: Patchsee / Patchclip

• Pro-Patchlight Compatible: Yes

• Available Length Range: 0.6m to 4.9m

Applications:

• Data centre network patching

• High-density network racks

• Server racks and cabinets

• Network switches

• Patch panels

• Structured cabling systems

• CAT6A Ethernet networks

• 10 Gigabit Ethernet applications

• Telecommunications networks

• Network equipment interconnections

• Cable tracing and identification
