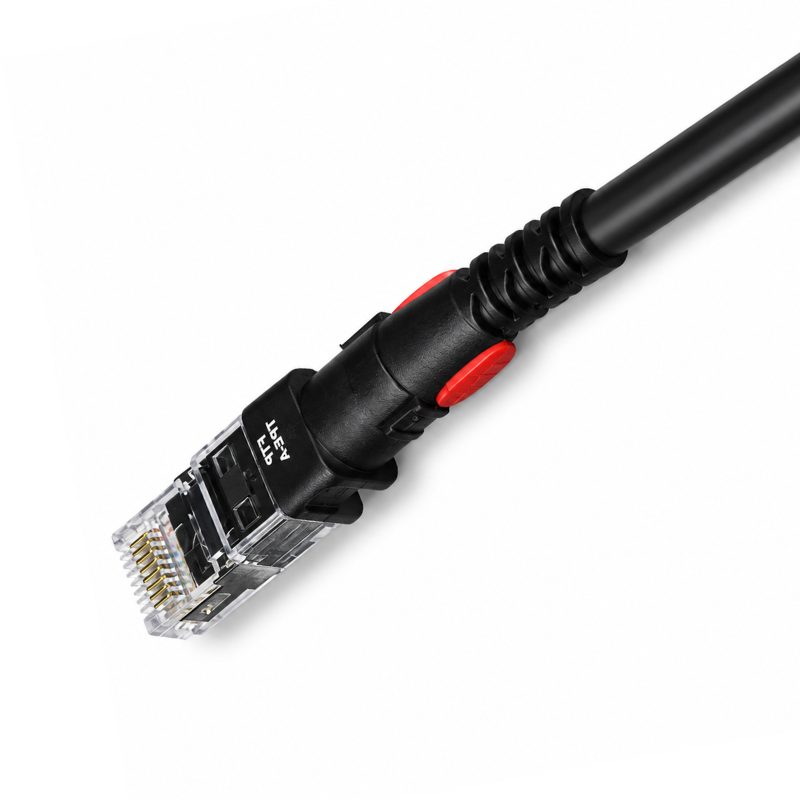

CAT6A Patchcord – U/FTP – RJ45 to RJ45 – AWG28 – Small OD – 0.6m

CAT6A Patchcord – U/FTP – RJ45 to RJ45 – AWG28 – Small OD – 0.6m

The CAT6A U/FTP RJ45 to RJ45 Patchcord – 0.6m is a slim, high-performance network cable designed for reliable connectivity and straightforward cable identification in high-density network environments. Incorporating Patchsee and Patchclip technologies, the patchcord can be quickly identified using compatible Pro-Patchlight light injectors, helping simplify tracing and network maintenance.

Designed for CAT6A applications up to 10Gbps, the cable features individual aluminium laminated foil shielding around each pair to help protect data transmission against electromagnetic interference. Its AWG28 tinned copper conductors provide a compact construction while maintaining dependable network performance.

The cable has a small 4.9mm overall diameter and slim RJ45 connector sleeves, making it particularly suitable for densely populated patch panels, network switches and data centre racks where efficient cable management and accessibility are important.

An LSOH (Low Smoke Zero Halogen) sheath makes the patchcord suitable for professional network environments where reducing smoke and halogen emissions in the event of fire is required. At just 0.6 metres long, it is ideal for short patching connections while helping minimise unnecessary cable within racks and cabinets.

Key Features:

• CAT6A U/FTP network patchcord

• RJ45 to RJ45 connectivity

• 0.6 metre cable length

• Supports applications up to 10Gbps

• Patchsee and Patchclip identification technologies

• Compatible with Pro-Patchlight light injectors

• Optical identification helps simplify cable tracing

• 16 identification colours available

• AWG28 tinned copper conductors

• Individual foil shielding around each pair

• Aluminium laminated metal foil shielding

• Tinned steel drain wire

• Slim RJ45 connector sleeves

• Small 4.9mm overall cable diameter

• 14.7mm bending radius

• LSOH outer sheath

• Ideal for high-density network environments

• Reference and length markings on the sleeve

Technical Specifications:

• Product Type: Network Patchcord

• Category: CAT6A

• Cable Type: U/FTP

• Connectors: RJ45 to RJ45

• Length: 0.6m

• Number of Pairs: 4

• Conductor: Tinned Copper

• Conductor Size: AWG28

• Conductor Construction: 7 / 0.124 ± 0.003mm

• Insulation: High-Density Polyethylene

• Pair Shielding: Aluminium Laminated Metal Foil

• Drain Wire: Tinned Steel

• Drain Wire Construction: 7 / 0.152mm

• Sheath: LSOH

• Overall Diameter: 4.9mm

• Bending Radius: 14.7mm

• Maximum Application Speed: Up to 10Gbps

• Identification Technology: Patchsee / Patchclip

• Pro-Patchlight Compatible: Yes

• Available Lengths: 0.6m to 4.9m

Applications:

• Data centre patching

• High-density network racks

• Network switches

• Patch panels

• Server racks and cabinets

• Structured cabling systems

• CAT6A Ethernet networks

• 10 Gigabit Ethernet applications

• Telecommunications networks

• Network equipment interconnections

• Cable management and identification
