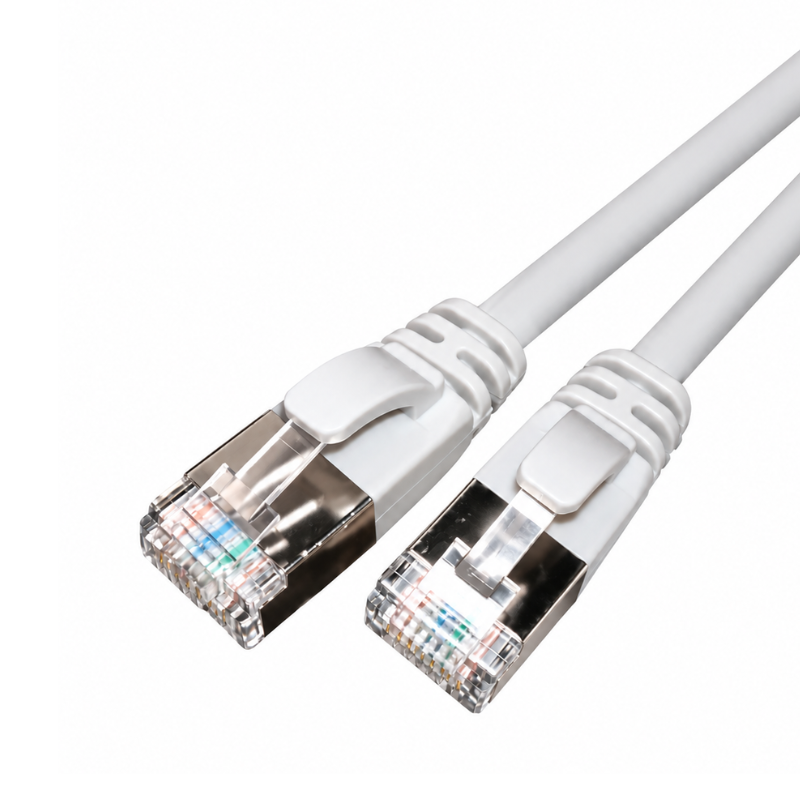

Cat6A Patchcord – S/FTP – RJ45 to RJ45 – AWG30 – LSZH – Slim – 2m
The Cat6A S/FTP RJ45 to RJ45 Patchcord – 2m is a slim, double-shielded network cable designed to provide stable and reliable connectivity while minimising electromagnetic interference. Its S/FTP construction combines aluminium foil shielding with an additional braid, providing enhanced protection for network signals.
With a slim 4.5mm ± 0.2mm outer diameter and AWG30 conductors, the patchcord is particularly suited to installations where cable density or available space is a consideration. The compact construction can help improve cable management within network cabinets, racks and other high-density environments.
The RJ45 connectors feature snagless protection, helping protect the locking clips against snagging and wear during installation, connection and removal. Gold-plated contacts provide a dependable connection, while the straight-wired four-pair configuration has a nominal impedance of 100 ohms.
An LSZH (Low Smoke Zero Halogen) sheath provides low-smoke characteristics, making the cable suitable for installations where reducing smoke and halogen emissions in the event of fire is important. Each 2m patchcord is supplied individually packaged.
Key Features:
-
Cat6A network patchcord
-
2m cable length
-
RJ45 to RJ45 connectivity
-
S/FTP double-shielded construction
-
Aluminium foil and braid shielding
-
Helps reduce electromagnetic interference
-
Slim 4.5mm ± 0.2mm outer diameter
-
Four pairs of AWG30 conductors
-
Straight-wired configuration
-
LSZH outer sheath
-
Low Smoke Zero Halogen construction
-
Snagless RJ45 connector protection
-
Helps protect RJ45 clips against snagging and wear
-
Gold-plated contacts
-
100-ohm impedance
-
TIA/EIA 568 standard
-
Individually packaged
Technical Specifications:
-
Category: Cat6A
-
Cable Type: Network Patchcord
-
Length: 2m
-
Shielding: S/FTP
-
Shielding Construction: Aluminium Foil + Braid
-
Connector A: RJ45
-
Connector B: RJ45
-
Connector Protection: Snagless
-
Contacts: Gold Plated
-
Wiring: Straight
-
Number of Pairs: 4
-
Conductor Size: AWG30
-
Sheath: LSZH
-
Outer Diameter: 4.5mm ± 0.2mm
-
Impedance: 100 Ohms
-
Standard: TIA/EIA 568
-
Packaging: Individual Packet
Applications:
-
High-density network installations
-
Data centre connectivity
-
Network cabinets and racks
-
Patch panel connections
-
Switch and router connections
-
Structured cabling systems
-
Office networks
-
Telecommunications infrastructure
-
Space-restricted network installations
