CAT6A Patchcord – S/STP – RJ45 to RJ45 – AWG30 – LSZH – Slim – 1m

Cat6A Patchcord – S/FTP – RJ45 to RJ45 – AWG30 – LSZH – Slim – 1m

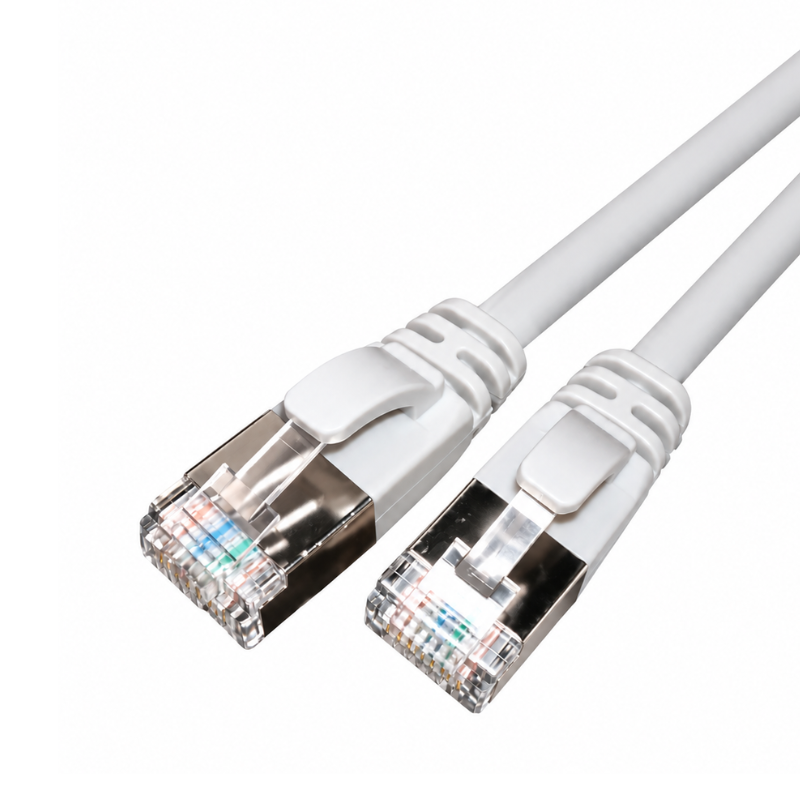

The Cat6A S/FTP RJ45 to RJ45 Patchcord – 1m is a slim, double-shielded network cable designed to provide a stable and reliable connection while reducing electromagnetic interference. Its S/FTP construction combines aluminium foil and braid shielding, providing enhanced signal protection in demanding network environments.

Featuring AWG30 conductors and a slim 4.5mm ± 0.2mm outer diameter, the cable provides a compact profile that is particularly useful for cable management within network cabinets, racks and other high-density installations.

The cable is terminated with protected snagless RJ45 connectors, helping prevent snagging and minimise wear to the connector clips during repeated connection and disconnection. Gold-plated contacts provide a dependable connection, while the straight-wired four-pair configuration has a nominal impedance of 100 ohms.

An LSZH (Low Smoke Zero Halogen) sheath provides low-smoke characteristics and helps reduce halogen emissions in the event of fire, making the patchcord suitable for sensitive indoor environments. Each 1m cable is supplied individually bagged.

Key Features:

• Cat6A network patchcord

• 1m cable length

• RJ45 to RJ45 connectivity

• S/FTP double-shielded construction

• Aluminium foil and braid shielding

• Helps reduce electromagnetic interference

• Slim 4.5mm ± 0.2mm outer diameter

• Four pairs of AWG30 conductors

• Straight-wired configuration

• LSZH outer sheath

• Low Smoke Zero Halogen construction

• Protected snagless RJ45 connectors

• Helps minimise RJ45 clip wear

• Gold-plated contacts

• 100-ohm impedance

• TIA/EIA 568 standard

• Individually bagged

Technical Specifications:

• Category: Cat6A

• Cable Type: Network Patchcord

• Length: 1m

• Shielding: S/FTP

• Shielding Construction: Aluminium Foil + Braid

• Connector A: RJ45

• Connector B: RJ45

• Connector Protection: Snagless

• Contacts: Gold Plated

• Wiring: Straight

• Number of Pairs: 4

• Conductor Size: AWG30

• Sheath: LSZH

• Outer Diameter: 4.5mm ± 0.2mm

• Impedance: 100 Ohms

• Standard: TIA/EIA 568

• Packaging: Individual Bag

Applications:

• Data centre connectivity

• High-density network installations

• Network cabinets and racks

• Patch panel connections

• Switch and router connections

• Structured cabling systems

• Office networks

• Telecommunications infrastructure

• Space-restricted network installations
