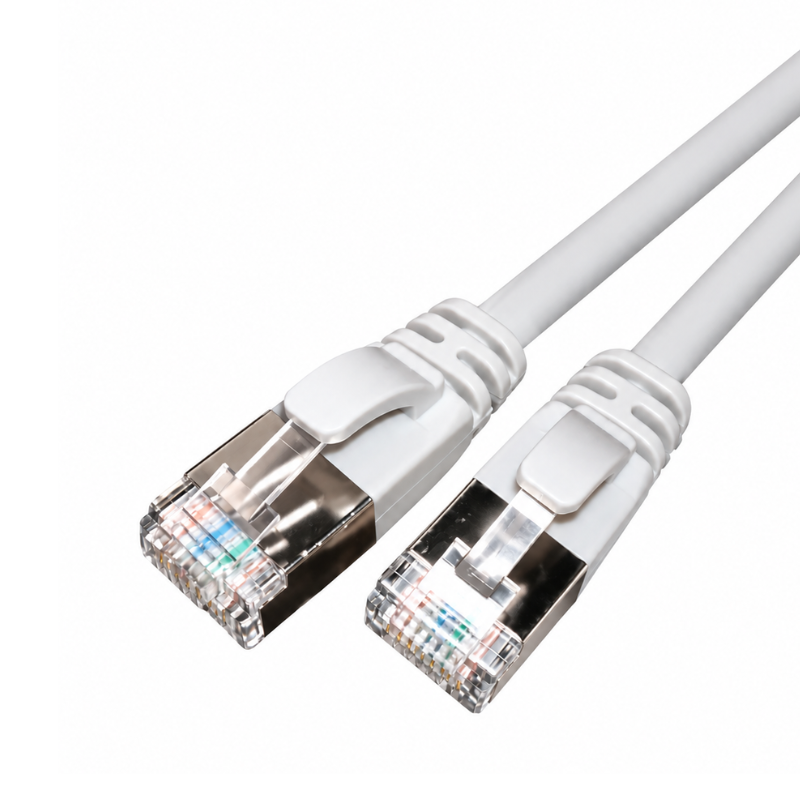

CAT6A S/FTP RJ45 Cable – Slim AWG30 LSZH – 15m
The CAT6A S/FTP RJ45 Cable – 15m is a slim, double-shielded network patch cable designed to provide stable and reliable connectivity while reducing electromagnetic interference. Its S/FTP construction combines aluminium foil and braid shielding, providing enhanced signal protection in demanding network environments.
Featuring AWG30 conductors and a slim 4.5mm ± 0.2mm outer diameter, the cable offers a compact profile that can simplify cable routing and management within network racks, cabinets and other space-restricted installations.
The cable is terminated with snagless RJ45 connectors, helping protect the connector clips against snagging and wear during repeated connection and disconnection. Gold-plated contacts provide a reliable connection, while the straight-wired four-pair construction has a nominal impedance of 100 ohms.
An LSZH (Low Smoke Zero Halogen) sheath helps reduce smoke and halogen emissions in the event of fire, making the cable suitable for sensitive indoor environments. The 15m cable is individually packaged for convenient storage and handling.
Key Features:
-
CAT6A network patch cable
-
15m cable length
-
RJ45 to RJ45 connectivity
-
S/FTP double-shielded construction
-
Aluminium foil and braid shielding
-
Helps reduce electromagnetic interference
-
Slim 4.5mm ± 0.2mm outer diameter
-
Four pairs of AWG30 conductors
-
Straight-wired configuration
-
LSZH outer sheath
-
Low Smoke Zero Halogen construction
-
Snagless RJ45 connector protection
-
Helps minimise RJ45 clip wear
-
Gold-plated contacts
-
100-ohm impedance
-
TIA/EIA 568 standard
-
Individually packaged
Technical Specifications:
-
Category: CAT6A
-
Cable Type: Network Patch Cable
-
Length: 15m
-
Shielding: S/FTP
-
Shielding Construction: Aluminium Foil + Braid
-
Connector A: RJ45
-
Connector B: RJ45
-
Connector Protection: Snagless
-
Contacts: Gold Plated
-
Wiring: Straight
-
Number of Pairs: 4
-
Conductor Size: AWG30
-
Sheath: LSZH
-
Outer Diameter: 4.5mm ± 0.2mm
-
Impedance: 100 Ohms
-
Standard: TIA/EIA 568
-
Packaging: Individual Packet
Applications:
-
Data centre connectivity
-
Network cabinets and racks
-
High-density network installations
-
Structured cabling systems
-
Patch panel connections
-
Switch and router connections
-
Office networks
-
Telecommunications infrastructure
-
Longer-distance equipment connections
-
Space-restricted cable installations
