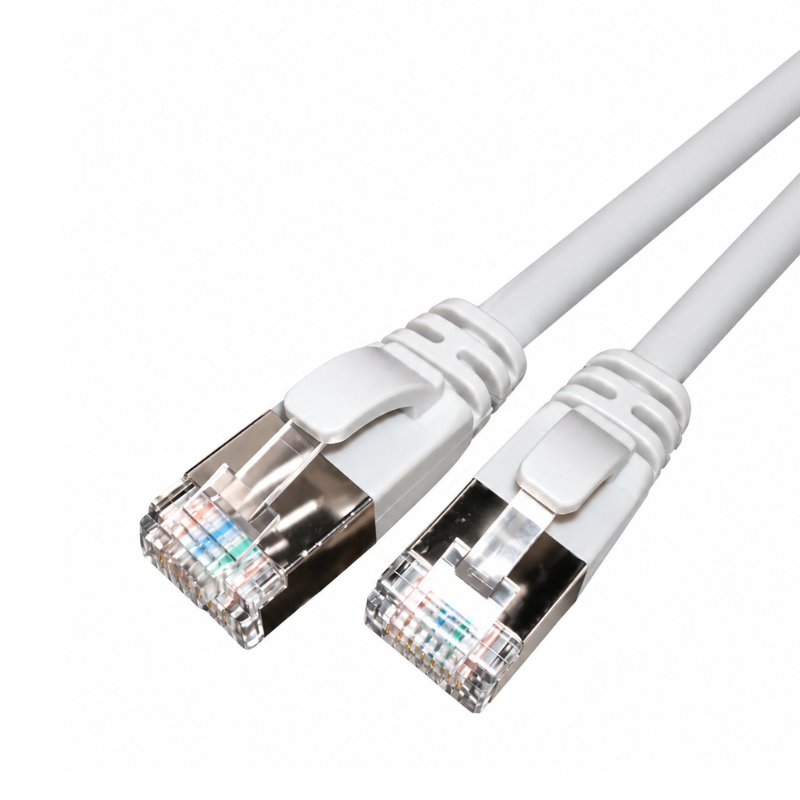

RJ45 CAT6A S/FTP Slim AWG30 LSZH Cable – 10m
The RJ45 CAT6A S/FTP Slim AWG30 LSZH Cable – 10m is a compact, double-shielded network patch cable designed to provide stable and reliable connectivity while reducing electromagnetic interference. Its S/FTP construction combines aluminium foil and braid shielding, providing enhanced protection for network signals.
Featuring AWG30 conductors and a slim 4.5mm ± 0.2mm outer diameter, the cable offers a reduced profile that can simplify routing and cable management within network racks, cabinets and other high-density installations.
The cable is terminated with protected snagless RJ45 connectors, helping minimise snagging and wear to the connector clips during repeated connection and disconnection. Gold-plated contacts provide a dependable connection, while the straight-wired four-pair configuration has a nominal impedance of 100 ohms.
An LSZH (Low Smoke Zero Halogen) sheath provides low-smoke characteristics and helps reduce halogen emissions in the event of fire, making the cable suitable for sensitive indoor environments. The 10m length provides additional flexibility for connecting network equipment positioned further apart.
Key Features:
-
CAT6A network patch cable
-
10m cable length
-
RJ45 to RJ45 connectivity
-
S/FTP double-shielded construction
-
Aluminium foil and braid shielding
-
Helps reduce electromagnetic interference
-
Slim 4.5mm ± 0.2mm outer diameter
-
Four pairs of AWG30 conductors
-
Straight-wired configuration
-
LSZH outer sheath
-
Low Smoke Zero Halogen construction
-
Protected snagless RJ45 connectors
-
Helps minimise RJ45 clip wear
-
Gold-plated contacts
-
100-ohm impedance
-
TIA/EIA 568 standard
-
Individually packaged
Technical Specifications:
-
Category: CAT6A
-
Cable Type: Network Patch Cable
-
Length: 10m
-
Shielding: S/FTP
-
Shielding Construction: Aluminium Foil + Braid
-
Connector A: RJ45
-
Connector B: RJ45
-
Connector Protection: Snagless
-
Contacts: Gold Plated
-
Wiring: Straight
-
Number of Pairs: 4
-
Conductor Size: AWG30
-
Sheath: LSZH
-
Outer Diameter: 4.5mm ± 0.2mm
-
Impedance: 100 Ohms
-
Standard: TIA/EIA 568
-
Packaging: Individual
Applications:
-
Data centre connectivity
-
High-density network installations
-
Network cabinets and racks
-
Patch panel connections
-
Switch and router connections
-
Structured cabling systems
-
Office networks
-
Telecommunications infrastructure
-
Space-restricted cable installations
