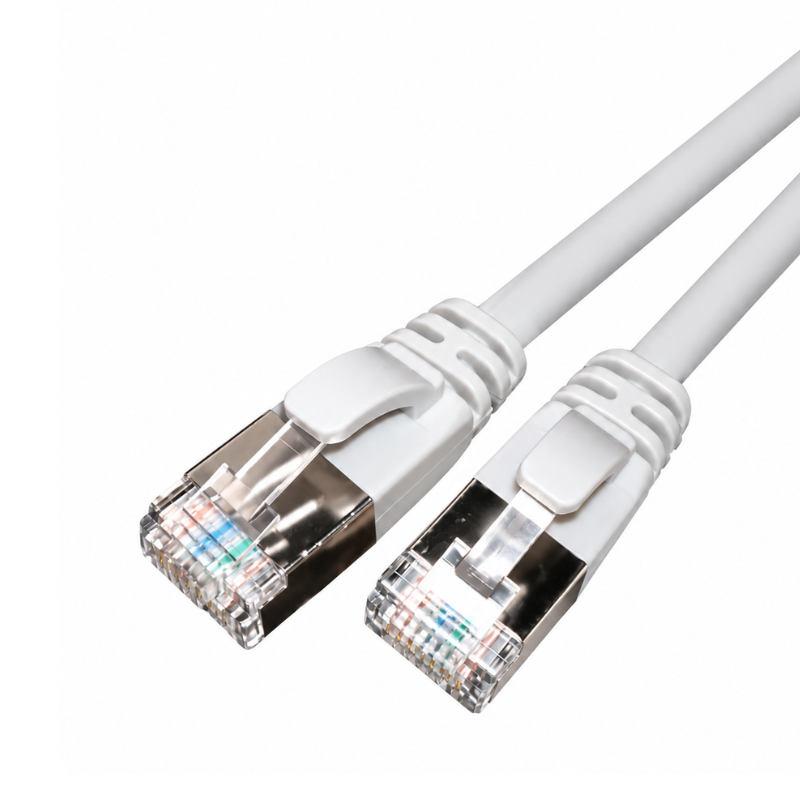

CAT6A Patchcord – S/STP – RJ45 to RJ45 – AWG30 – LSZH – Slim – 0.5m

CAT6A Patchcord – S/FTP – RJ45 to RJ45 – AWG30 – LSZH – Slim – 0.5m

The CAT6A S/FTP RJ45 to RJ45 Patchcord – 0.5m is a slim, double-shielded network cable designed to provide stable and reliable connectivity while reducing electromagnetic interference. Its S/FTP construction combines aluminium foil and braid shielding, providing enhanced protection for network signals.

Featuring AWG30 conductors and a slim 4.5mm ± 0.2mm outer diameter, the patchcord offers a compact cable profile ideal for high-density installations. The short 0.5m length is particularly useful for close-range connections within network racks and cabinets, helping minimise excess cable and maintain tidy cable management.

The cable is terminated with protected snagless RJ45 connectors, helping prevent snagging and minimise wear to the connector clips during repeated insertion and removal. Gold-plated contacts provide a dependable connection, while the straight-wired four-pair configuration has a nominal impedance of 100 ohms.

An LSZH (Low Smoke Zero Halogen) sheath provides low-smoke characteristics and helps reduce halogen emissions in the event of fire, making the cable suitable for sensitive indoor environments. Each 0.5m patchcord is supplied individually packaged.

Key Features:

• CAT6A network patchcord

• 0.5m cable length

• RJ45 to RJ45 connectivity

• S/FTP double-shielded construction

• Aluminium foil and braid shielding

• Helps reduce electromagnetic interference

• Slim 4.5mm ± 0.2mm outer diameter

• Four pairs of AWG30 conductors

• Straight-wired configuration

• LSZH outer sheath

• Low Smoke Zero Halogen construction

• Protected snagless RJ45 connectors

• Helps minimise RJ45 clip wear

• Gold-plated contacts

• 100-ohm impedance

• TIA/EIA 568 standard

• Individually packaged

Technical Specifications:

• Category: CAT6A

• Cable Type: Network Patchcord

• Length: 0.5m

• Shielding: S/FTP

• Shielding Construction: Aluminium Foil + Braid

• Connector A: RJ45

• Connector B: RJ45

• Connector Protection: Snagless

• Contacts: Gold Plated

• Wiring: Straight

• Number of Pairs: 4

• Conductor Size: AWG30

• Sheath: LSZH

• Outer Diameter: 4.5mm ± 0.2mm

• Impedance: 100 Ohms

• Standard: TIA/EIA 568

• Packaging: Individual Packet

Applications:

• Data centre connectivity

• High-density network installations

• Network cabinets and racks

• Short patch panel connections

• Switch and router connections

• Structured cabling systems

• Office networks

• Telecommunications infrastructure

• Space-restricted network installations
