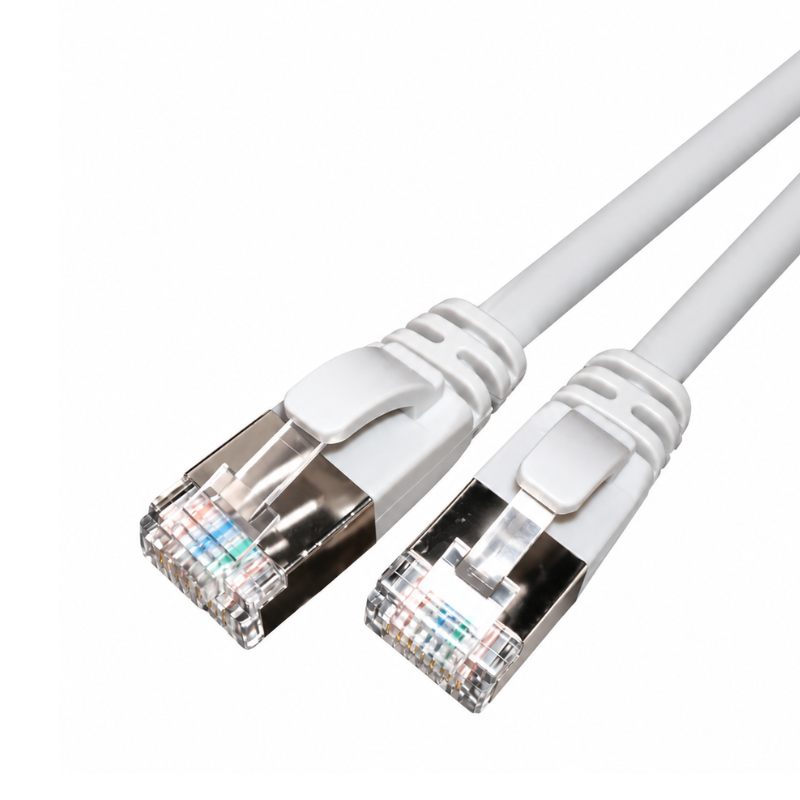

CAT6A Patchcord – S/STP – RJ45 to RJ45 – AWG30 – LSZH – Slim – 0.25m

Product code: 2021140
Request for quote
Description

Description:

CAT6A Patchcord – S/FTP – RJ45 to RJ45 – AWG30 – LSZH – Slim – 0.25m



The CAT6A S/FTP RJ45 to RJ45 Patchcord – 0.25m is a compact, double-shielded network cable designed for short-distance connections within high-density network installations. Its S/FTP shielding helps reduce electromagnetic interference and supports reliable network connectivity.



Featuring four pairs of AWG30 conductors and a slim 4.5mm ± 0.2mm outer diameter, the patchcord is particularly well suited to network racks and cabinets where minimising cable bulk is important. The short 0.25m length helps reduce excess cabling between closely positioned equipment.



The cable features protected snagless RJ45 connectors, helping protect the connector clips against snagging and wear during installation and repeated connection. Its straight-wired configuration has a nominal impedance of 100 ohms and follows the TIA/EIA 568 standard.



An LSZH (Low Smoke Zero Halogen) sheath provides low-smoke characteristics, making the patchcord suitable for sensitive indoor network environments and professional structured cabling installations.

Key Features:

  • CAT6A network patchcord

  • Short 0.25m cable length

  • RJ45 to RJ45 connectivity

  • S/FTP double-shielded construction

  • Helps reduce electromagnetic interference

  • Slim 4.5mm ± 0.2mm outer diameter

  • Four pairs of AWG30 conductors

  • Straight-wired configuration

  • LSZH outer sheath

  • Low Smoke Zero Halogen construction

  • Protected snagless RJ45 connectors

  • Helps minimise RJ45 clip wear

  • 100-ohm impedance

  • TIA/EIA 568 standard

  • Ideal for short rack and cabinet connections

Technical Specifications:

  • Category: CAT6A

  • Cable Type: Network Patchcord

  • Length: 0.25m

  • Shielding: S/FTP

  • Connector A: RJ45

  • Connector B: RJ45

  • Connector Type: Protected Snagless

  • Wiring: Straight

  • Number of Pairs: 4

  • Conductor Size: AWG30

  • Sheath: LSZH

  • Outer Diameter: 4.5mm ± 0.2mm

  • Impedance: 100 Ohms

  • Standard: TIA/EIA 568

Applications:

  • Data centre connectivity

  • Network racks and cabinets

  • Short patch panel connections

  • Switch-to-patch-panel connections

  • High-density network installations

  • Structured cabling systems

  • Telecommunications infrastructure

  • Space-restricted installations

  • Product model
  • 2021140
  • Product code
  • 2021140
