Internal/External Fibre Distribution Point - 8/16F

Internal/External Fibre Distribution Point – 8/16F

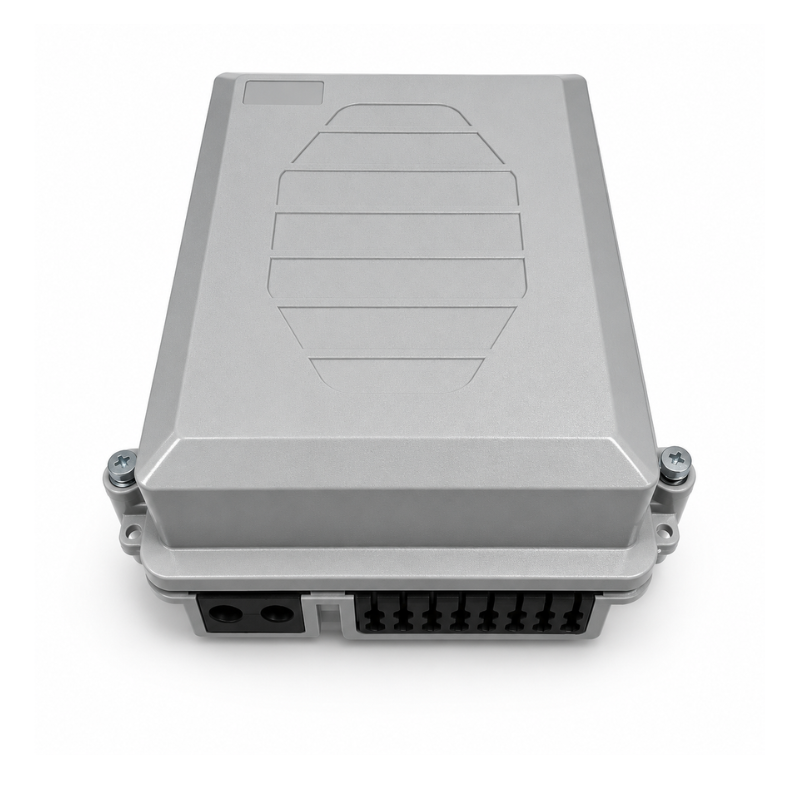

The Internal/External Fibre Distribution Point – 8/16F is a compact, high-capacity customer service point (CSP) designed for reliable FTTP and fibre access network deployments. Suitable for both indoor and outdoor installations, it provides secure fibre termination, splice management and connector organisation from distribution points through to customer premises.

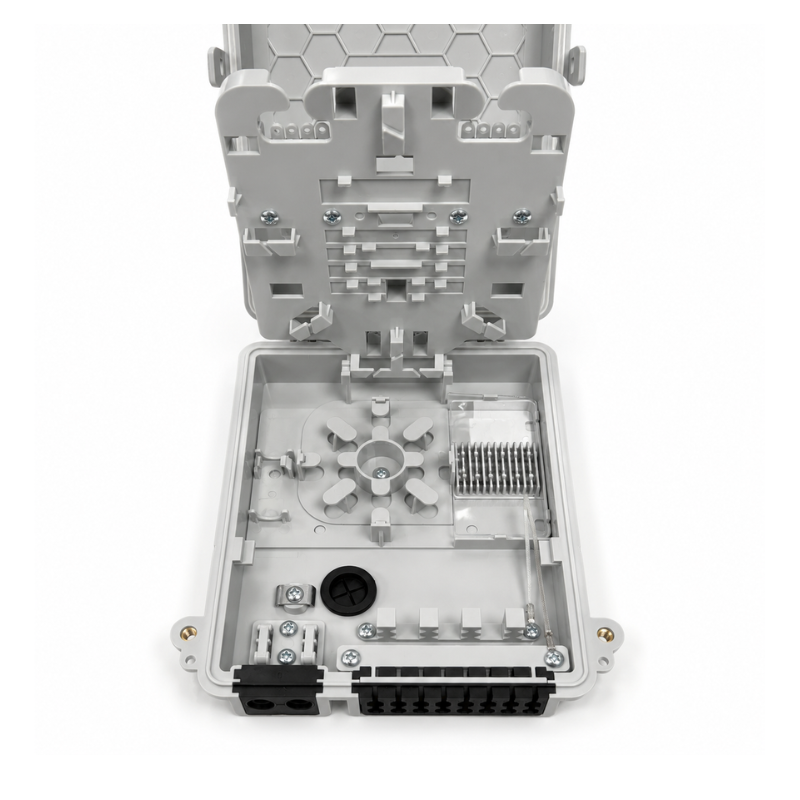

Constructed from UV-stabilised, flame-retardant PC + ABS (UL94 V-0) material, the enclosure offers excellent durability and environmental protection with an IP56 rating, making it ideal for external network installations. Its modular design supports flexible configurations for splitters and fibre connections, while providing organised cable routing and storage for up to 24 fibre splices.

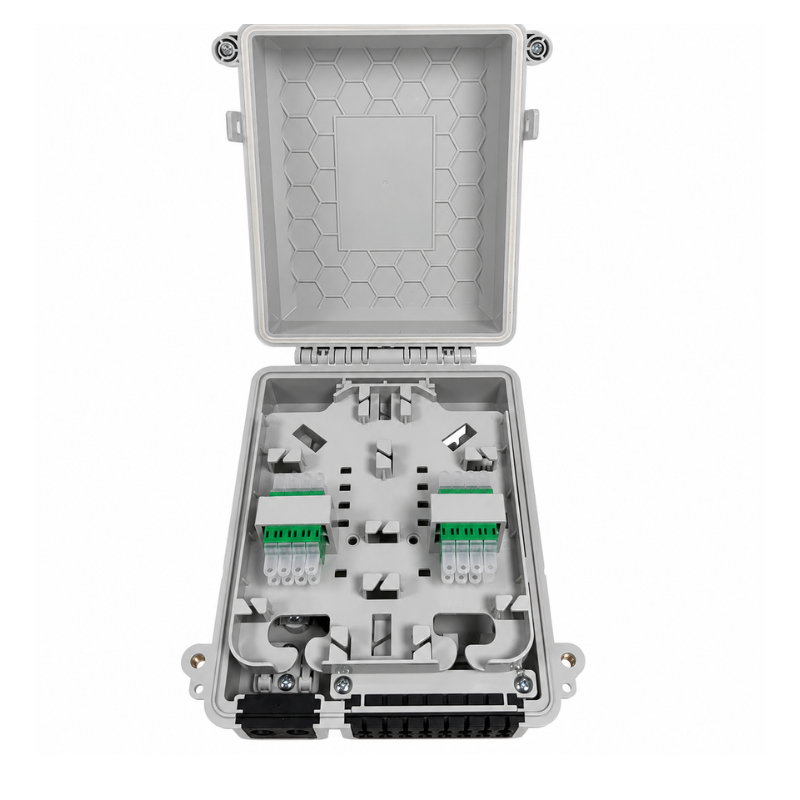

Supporting 8 SC Duplex or 16 LC Quad adapters, the enclosure accommodates a wide range of FTTH and access network applications. Two feeder cable entry points and sixteen drop cable exit points simplify installation and future expansion, while the optional cable storage bracket provides additional management for feeder and drop cables. Designed for fast installation and easy maintenance, the 8/16F Fibre Distribution Point helps reduce installation time and operational costs.

Key Features:

• Suitable for internal and external installations

• Compact, high-capacity fibre distribution enclosure

• Supports up to 24 fibre splices

• Capacity for 8 SC Duplex or 16 LC Quad connectors

• UV-stabilised flame-retardant enclosure

• IP56 weather protection

• Modular design for splitters and fibre connections

• Secure cable management and protection

• Easy installation and maintenance

• Optional feeder and drop cable storage bracket

Technical Specifications:

• Product Type: Fibre Distribution Point (Customer Service Point)

• Fibre Capacity: 8/16F

• Enclosure Type: Indoor / Outdoor

• Enclosure Material: PC + ABS (UL94 V-0)

• IP Rating: IP56

• Dimensions (L × H × D): 195.1 × 157.4 × 77.6mm

• Weight: 0.5kg

• Cable Entry Points: 2

• Drop Cable Exit Points: 16

• Connector Capacity:

  • 8 × SC Duplex

  • 16 × LC Quad

• Maximum Splice Capacity: 24 Fibres

• Maximum Input Cable Diameter: 5–11mm Round Cable

• Maximum Output Cable Diameter: 3–6mm Round Cable

• UV Stabilised: Yes

Applications:

• FTTP networks

• FTTH deployments

• Customer service points

• Fibre distribution networks

• Access network infrastructure

• Telecommunications installations

• Broadband rollouts

• Indoor fibre terminations

• Outdoor fibre distribution

• Network expansion projects
