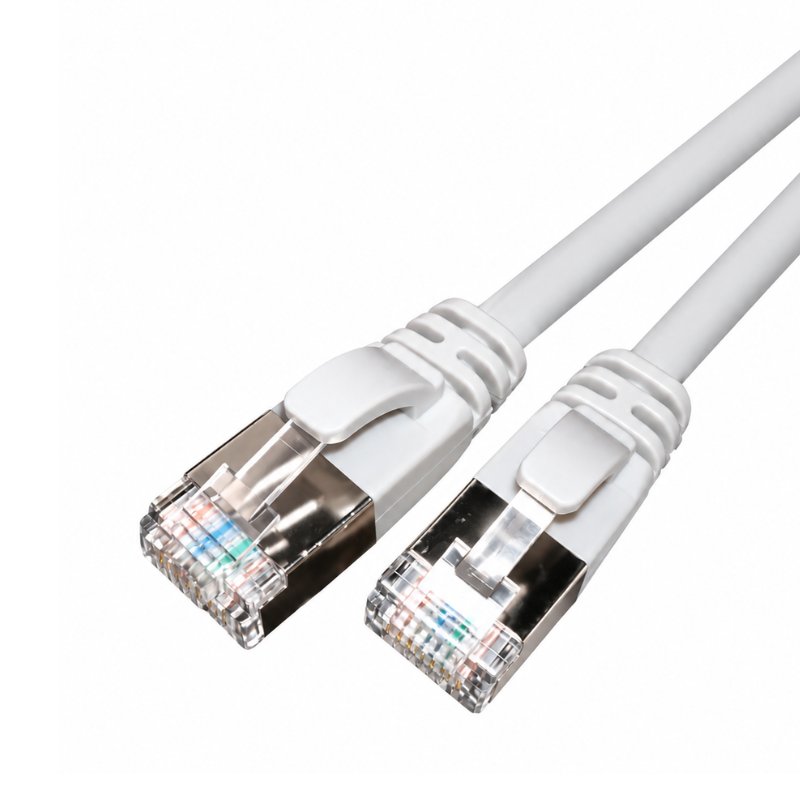

Cat6A Patchcord – S/FTP – RJ45 to RJ45 – AWG30 – LSZH – Slim – 7m
The Cat6A S/FTP RJ45 to RJ45 Patchcord – 7m is a slim, double-shielded network cable designed for reliable connectivity while helping to reduce electromagnetic interference. Its S/FTP construction provides enhanced shielding for network signals, making it suitable for professional structured cabling installations.
Featuring four pairs of AWG30 conductors and a slim 4.5mm ± 0.2mm outer diameter, the patchcord provides a compact cable profile that can simplify routing and cable management within network racks, cabinets and other high-density installations.
The cable is terminated with protected snagless RJ45 connectors, helping protect the connector clips against snagging and damage during installation and everyday use. Its straight-wired configuration has a nominal impedance of 100 ohms and follows the TIA/EIA 568 standard.
An LSZH (Low Smoke Zero Halogen) sheath provides low-smoke characteristics, making the cable particularly suitable for indoor network environments where LSZH cabling is required. Each 7m patchcord is supplied individually packaged.
Key Features:
-
Cat6A network patchcord
-
7m cable length
-
RJ45 to RJ45 connectivity
-
S/FTP double-shielded construction
-
Helps reduce electromagnetic interference
-
Slim 4.5mm ± 0.2mm outer diameter
-
Four pairs of AWG30 conductors
-
Straight-wired configuration
-
LSZH outer sheath
-
Low Smoke Zero Halogen construction
-
Protected snagless RJ45 connectors
-
Helps protect RJ45 clips from snagging
-
100-ohm impedance
-
TIA/EIA 568 standard
-
Individually packaged
Technical Specifications:
-
Category: Cat6A
-
Cable Type: Network Patchcord
-
Length: 7m
-
Shielding: S/FTP
-
Connector A: RJ45
-
Connector B: RJ45
-
Connector Type: Protected Snagless
-
Wiring: Straight
-
Number of Pairs: 4
-
Conductor Size: AWG30
-
Sheath: LSZH
-
Outer Diameter: 4.5mm ± 0.2mm
-
Impedance: 100 Ohms
-
Standard: TIA/EIA 568
-
Packaging: Individual Sachet
Applications:
-
Data centre connectivity
-
High-density network installations
-
Network cabinets and racks
-
Patch panel connections
-
Switch and router connections
-
Structured cabling systems
-
Office networks
-
Telecommunications infrastructure
-
Space-restricted network installations
