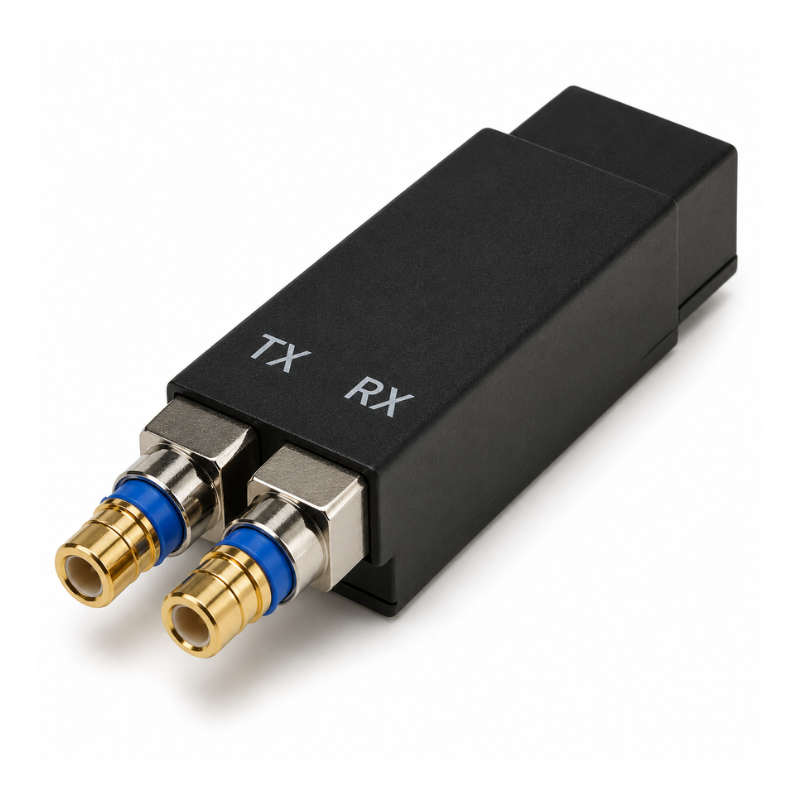

Type 43 to RJ45 Style 20 Balun (Left Hand)
The Type 43 to RJ45 Style 20 Balun (Left Hand) is a compact signal conversion unit designed to provide reliable 75Ω to balanced 120Ω impedance conversion for telecommunications and broadcast applications.
Developed specifically for use with HDC43 Digital Distribution Frame (DDF) systems and B2 DDF blocks, this balun enables seamless integration between traditional Type 43 distribution infrastructure and RJ45-based cabling. The unit clips securely into a standard B2 DDF block, utilising the standard HDC Type 43 connector presentation, while providing a balanced 120Ω RJ45 interface for straightforward connection to structured cabling systems.
Its compact design ensures simple installation without occupying additional rack space, making it ideal for telecommunications exchanges, communications rooms, broadcast facilities and network infrastructure upgrades where dependable signal conversion is required.
Key Features:
-
75Ω to balanced 120Ω signal conversion
-
Left-hand Style 20 configuration
-
Designed for HDC43 DDF systems
-
Compatible with standard B2 DDF blocks
-
Standard HDC Type 43 connector presentation
-
RJ45 balanced output connection
-
Compact clip-in design
-
Quick installation and removal
-
Reliable signal transmission
-
Ideal for telecommunications and broadcast applications
Technical Specifications:
-
Product Type: Type 43 to RJ45 Balun
-
Configuration: Left Hand
-
Style: 20
-
Impedance Conversion:
-
75Ω Unbalanced
-
120Ω Balanced
-
Compatibility:
-
HDC43 DDF System
-
Standard B2 DDF Blocks
-
Connector A: HDC Type 43
-
Connector B: RJ45 Socket
-
Mounting: Clip-In Installation
-
Application: Signal Conversion
Applications:
-
Telecommunications exchanges
-
Digital Distribution Frames (DDF)
-
Broadcast facilities
-
Structured cabling systems
-
Communications rooms
-
Signal distribution
-
Network infrastructure
-
Cross-connect systems
-
Legacy system integration
-
Equipment racks
