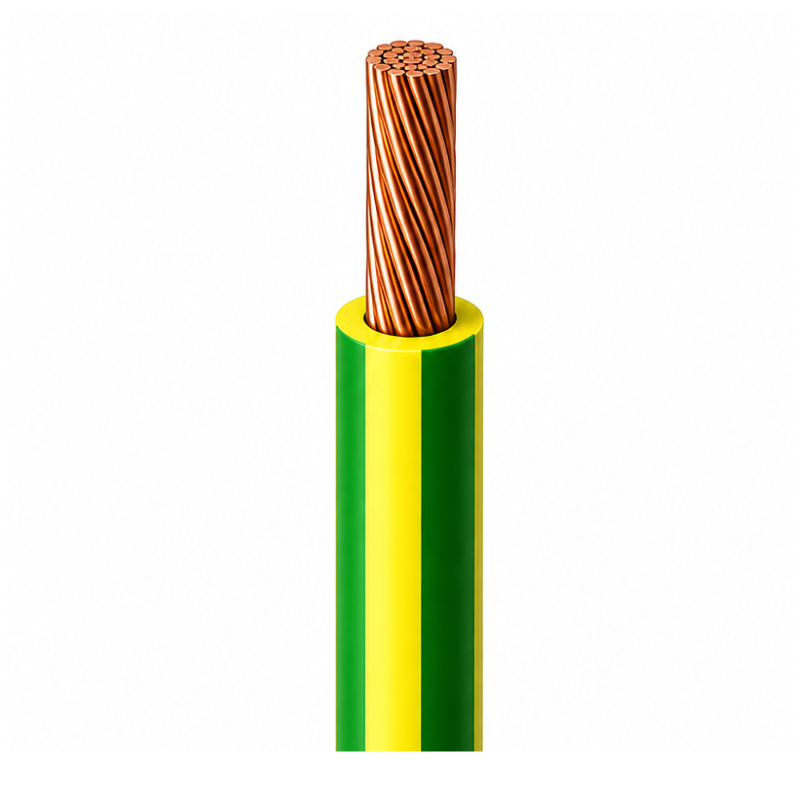

Tri-Rated Single Core Cable – 70mm – Earth – Per Metre

Tri-Rated Single Core Cable – 70mm² – Earth – Per Metre

The Tri-Rated Single Core Cable – 70mm² – Earth – Per Metre is a high-performance flexible panel wire designed for use in switchgear, control panels, instrumentation equipment and power distribution systems.

Manufactured with a Class 5 flexible copper conductor and insulated with heat-resistant, flame-retardant PVC, this tri-rated cable delivers excellent electrical performance while offering superior flexibility for installation within confined enclosures and electrical equipment.

Commonly referred to as BS 6231 cable, H07V2-K or panel wire, it is approved to multiple international standards, making it suitable for use in equipment manufactured for UK, European and North American markets. Rated at 450/750V under BS EN 50525-2-31 (H07V2-K) and 0.6/1kV under BS 6231, UL and CSA standards, it is ideal for demanding industrial, telecommunications and control applications.

Supplied per metre, this earth-coloured cable allows installers to order the exact quantity required, reducing waste and improving installation efficiency.

Key Features:

• 70mm² flexible single core cable

• Earth (green/yellow) insulation

• Supplied per metre

• Class 5 flexible copper conductor

• Heat-resistant PVC insulation

• Flame-retardant construction

• Suitable for switchgear and control panels

• Also known as BS 6231, H07V2-K and panel wire

• Excellent flexibility for confined installations

• Manufactured to international standards

Technical Specifications:

• Product Type: Tri-Rated Single Core Cable

• Conductor Size: 70mm²

• Colour: Earth (Green/Yellow)

• Supply Length: Per Metre

• Conductor: Class 5 Flexible Copper

• Insulation: PVC (Polyvinyl Chloride)

• UL Style: 1015

Voltage Rating

• BS 6231: 0.6/1kV

• UL / CSA: 0.6/1kV

• BS EN 50525-2-31 (H07V2-K): 450/750V

Temperature Rating

• UL / CSA: -15°C to +105°C

• BS 6231: -15°C to +90°C

• Fixed Installation: Down to -40°C

Minimum Bending Radius

• 6 x Overall Cable Diameter

Applications:

• Switchgear panels

• Electrical control panels

• Instrumentation systems

• Relay panels

• Power distribution equipment

• Motor starters

• Industrial control systems

• Telecommunications equipment

• Rectifier equipment

• General panel wiring
